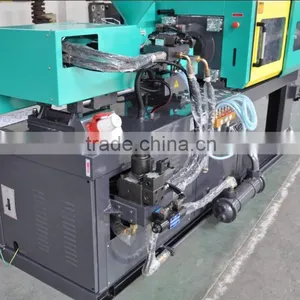

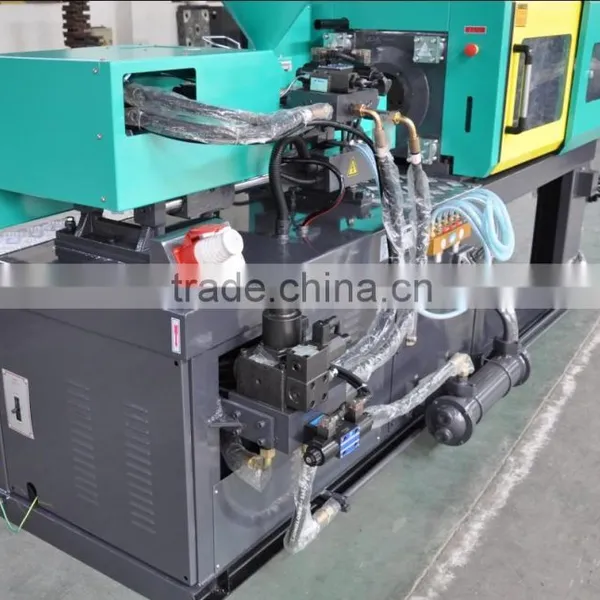

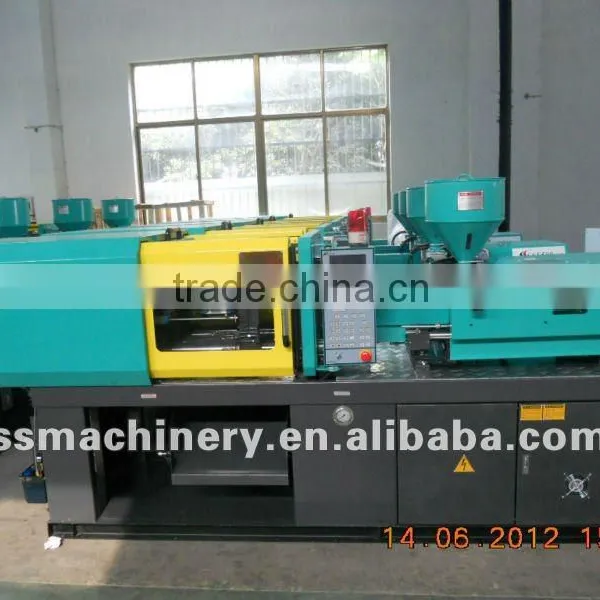

50T fixed pump injection molding machine
We are a small plastic injection molding machine manufacturer of which clamp force ranges from 25T to 168T
Main parameters of 50T injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF500) | |
| Injection Unit | Screw diameter | mm | A | B |
| 28 | 30 | |||
| Screw L/D ratio | L/D | 19 | 17.7 | |
| shot volumn (theoretical) | Cm3 | 70 | 80 | |
| injection weight(PS) | g | 64 | 73 | |
| plasticizing capacity | g/s | 6.9 | 7.7 | |
| injection rate | g/s | 43 | 49 | |
| injection pressure | Mpa | 224 | 195 | |
| screw speed | rmp | 200 | ||
| Clamping unit | clamp force | KN | 500 | |
| open stroke | mm | 250 | ||

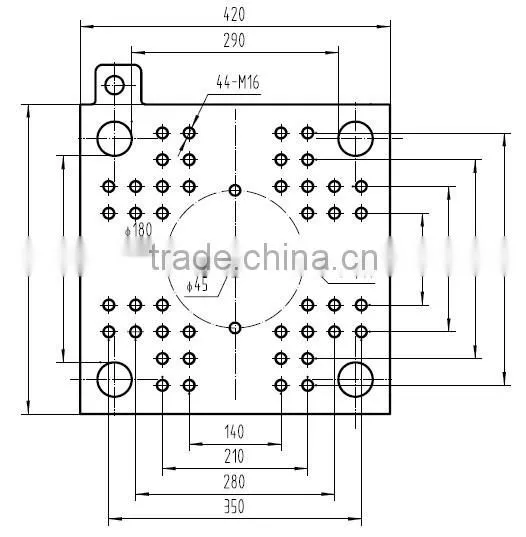

| space between bars (W*H) | mm | 290*270 | ||
| max mould height | mm | 300 | ||
| min mould height | mm | 100 | ||
| ejector stroke | mm | 65 | ||
| ejector force | KN | 20 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 100 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 5.5 | ||
| heating power | KW | 4.7 | ||
| machine dimension | m | 3.2*1.1*1.6 | ||
| machine weight | T | 1.9 | ||
| oil tank capacity | L | 115 | ||
Standard features;
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;

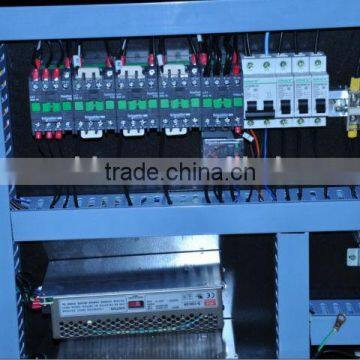

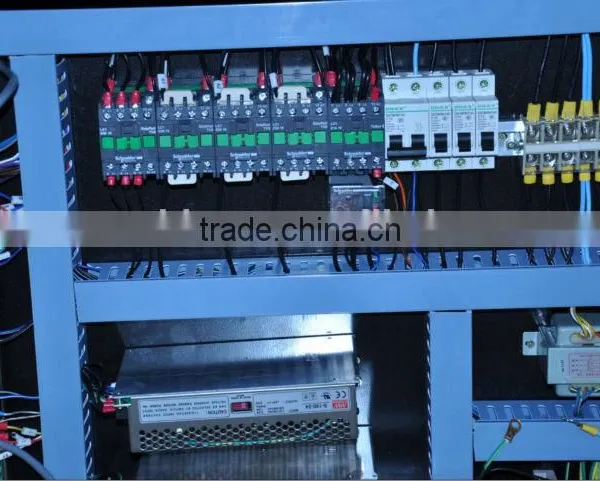

Mechanical, electrical safety device;
Auto lubrication system;

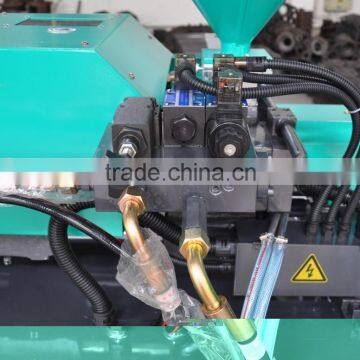

Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.
The orgnization chart of our company, average working life of the staffs is 8 years.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
