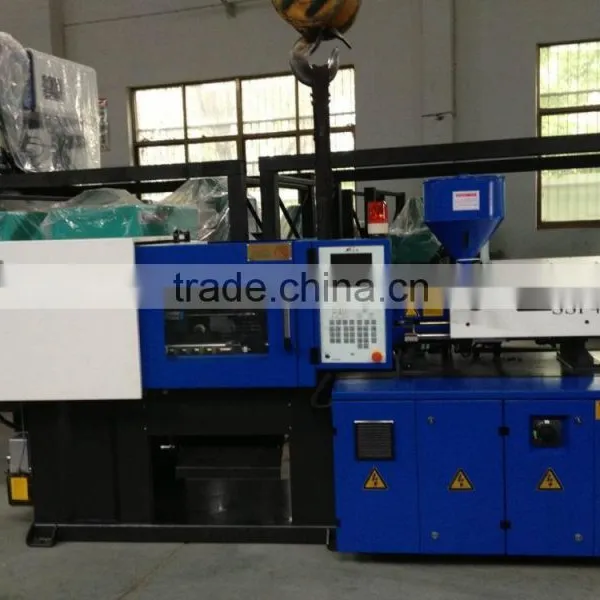

Small New Developed 42TON Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
52T Shuangsheng Small Plastic Injection Machine New StructureUS$ 1 - 50,000MOQ: 1 Set -
POM Plastic Gears Making Injection Molding MachineUS$ 1 - 50,000MOQ: 1 Set
-
Injection Molding Machine ManufacturerUS$ 1 - 50,000MOQ: 1 Set
-
25-168Ton Injection Moulding Machine PriceUS$ 1 - 50,000MOQ: 1 Set
-
Small 50T Injection Molding MachineUS$ 1 - 50,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Horizontal
Brand Name
Shuangsheng
Model Number
SSF420-K5
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
50g or 60g
Injection Rate
50g/s or 62g/s
Clamping Force
420kn
Opening Stroke
245mm
Power(W)
3200
Certification
CE ISO9001
After-sales Service Provided
Overseas third-party support available
Product Description
Our SSF420-K5&SSF420-S are newly developed model, -K5 means fixed pump and -S servo motor.
This model machine applies more rigidity mold platen, with more strength clamping mechanism, can holding much larger molds but with small injection weight.
The main parameters of this machine as following;
| Items | Parameter | Unit | SSF420 | |
| Injection Unit | Screw diameter | mm | A | B |
| 27 | 30 | |||
| Screw L/D ratio | L/D | 18.4 | 16.5 | |
| shot volume(theoretical) | Cm3 | 55 | 68 | |
| injection weight(PS) | g | 50 | 62 | |
| OZ | 1.9 | 2.1 | ||
| injection rate | g/s | 50 | 62 | |
| injection pressure | Mpa | 207 | 168 | |
| screw speed | rmp | 200 | ||
| Clamping unit | clamp force | KN | 420 | |
| open stroke | mm | 245 | ||
| distance between tie bars (W*H) | mm | 260*260 | ||
| max mould thickness | mm | 300 | ||
| min mould thickness | mm | 100 | ||
| ejector stroke | mm | 65 | ||
| ejector force | KN | 25 | ||
| ejector number | PC | 1 | ||
| dia of mould location hole | mm | 80 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 5.5 | ||
| heating power | KW | 3.2 | ||
| machine dimension | m | 3.1*1.1*1.4 | ||
| machine weight | T | 1.65 | ||
| oil tank capacity | L | 95 | ||
This small machine applicable for the production of small plastic parts, raw material included but not limited as PP,PE,ABS,PC,PA,PA66 with fiber glass,Arylic and so on.
