Plastic gears making injection molding machine
Shuangsheng Brand plastic gears making injection molding machine is favored by customers from home and abroad due its small but precise characteristics.
Main parameters of the plastic gears making small injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF320-S) | |
| Injection Unit | Screw diameter | mm | A | B |
| 22 | 25 | |||
| Screw L/D ratio | L/D | 17.7 | 15.5 | |
| shot volumn (theoretical) | Cm3 | 30 | 38 | |
| injection weight(PS) | g | 27 | 34 | |
| plasticizing capacity | g/s | 2.6 | 3.3 | |
| injection rate | g/s | 25 | 32 | |
| injection pressure | Mpa | 185 | 143 | |
| screw speed | rmp | 165 | ||
| Clamping unit | clamp force | KN | 320 | |
| open stroke | mm | 155 | ||
| space between bars (W*H) | mm | 245*195 | ||
| max mould height | mm | 260 | ||
| min mould height | mm | 80 | ||
| ejector stroke | mm | 40 | ||
| ejector force | KN | 13 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 55 | ||
| Others | max pump pressure | Mpa | 14 | |
| pump motor power | KW | 3 | ||
| heating power | KW | 2.5 | ||
| machine dimension | m | 2.80*0.86*1.35 | ||
| machine weight | T | 1 | ||
| oil tank capacity | L | 85 | ||

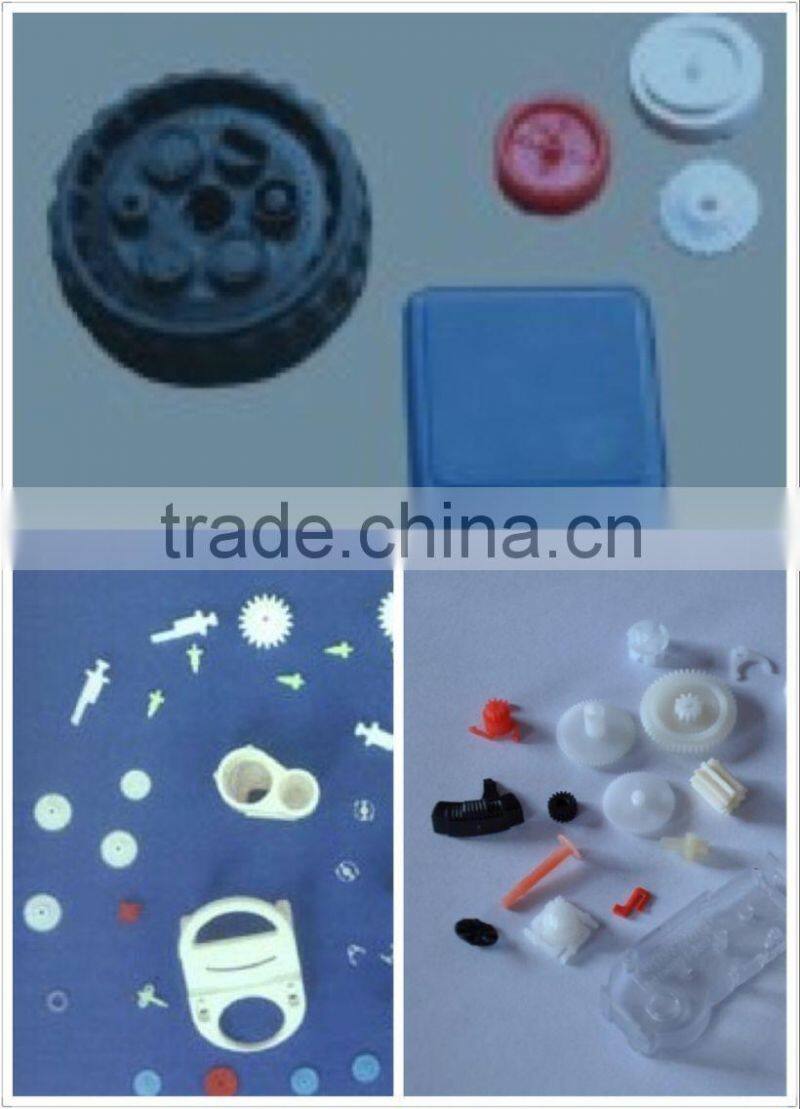

The very tiny plastic parts made by this mini injection molding machines;
The plastic machinery featured with;
1.Double-cylinder balanced injection system;
2.Multi-stage pressure &speed injection;
3.Back pressure adjustment device;
4.Low pressure mold protection;
5.Single hydraulic core pulling and inserting;
6.Multiple hydraulic ejector knock-out;
7.Mechanical, electrical safety device;
8.Auto lubrication system;
9.Hydraulic pressure full proportional control;
10.Computer control system;
11.Molding data memory system;
12.Automatic mould adjust function.
13.Energy saving with variable pump;
14.Bi-metallic screw to anti-corrosion, which is applicable to nylon or glass material.
15.Five-point inward moving toggle system ensure high rigidty and precision for mold clamping and also reducing stress and stain effects;
16.Oil pipelines are positioned for aesthetic appearance and easy for maintenance;
17.The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime;
18.Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering.
We obtained ISO9001:2008 and CE certificate, you can reply on our quality.
Different machine color for your selection;
Our company slogan"Team cooperation, create brilliant with all staffs and partners"
Together with our customers;
Agent wanted;
We have established cooperations with agents from Argentina, Colombia, Chile, Mexico,South Africa, Netherland, Denmark, Spain,Israel,Turkey, Russia,Pakistan,Iran to market and provide after sales service to our small injection molding machines.
We warmly welcome agents from more countries to coopeate with us.
If you have any query about our injection molding machine, just contact me at any time
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
