We are a small plastic injection molding machine manufacturer of which clamp force ranges from 32T to 270T
Main parameters of 32T small precise injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF320-K5) | |
| Injection Unit | Screw diameter | mm | A | B |
| 22 | 25 | |||
| Screw L/D ratio | L/D | 17.7 | 15.5 | |
| shot volumn (theoretical) | Cm3 | 30 | 38 | |
| injection weight(PS) | g | 27 | 34 | |
| plasticizing capacity | g/s | 2.6 | 3.3 | |
| injection rate | g/s | 25 | 32 | |
| injection pressure | Mpa | 185 | 143 | |
| screw speed | rmp | 165 | ||
| Clamping unit | clamp force | KN | 320 | |
| open stroke | mm | 155 | ||
| space between bars (W*H) | mm | 245*195 | ||
| max mould height | mm | 260 | ||
| min mould height | mm | 80 | ||
| ejector stroke | mm | 40 | ||
| ejector force | KN | 13 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 55 | ||
| Others | max pump pressure | Mpa | 14 | |
| pump motor power | KW | 3 | ||
| heating power | KW | 2.5 | ||
| machine dimension | m | 2.80*0.86*1.35 | ||
| machine weight | T | 1 | ||
| oil tank capacity | L | 85 | ||
The plastic machinery featured with;
1.Double-cylinder balanced injection system;
2.Multi-stage pressure &speed injection;
3.Back pressure adjustment device;
4.Low pressure mold protection;
5.Single hydraulic core pulling and inserting;
6.Multiple hydraulic ejector knock-out;
7.Mechanical, electrical safety device;
8.Auto lubrication system;
9.Hydraulic pressure full proportional control;
10.Computer control system;
11.Molding data memory system;
12.Automatic mould adjust function.
13.Energy saving with variable pump;
14.Bi-metallic screw to anti-corrosion, which is applicable to nylon or glass material.
15.Five-point inward moving toggle system ensure high rigidty and precision for mold clamping and also reducing stress and stain effects;
16.Oil pipelines are positioned for aesthetic appearance and easy for maintenance;
17.The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime;
18.Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering.

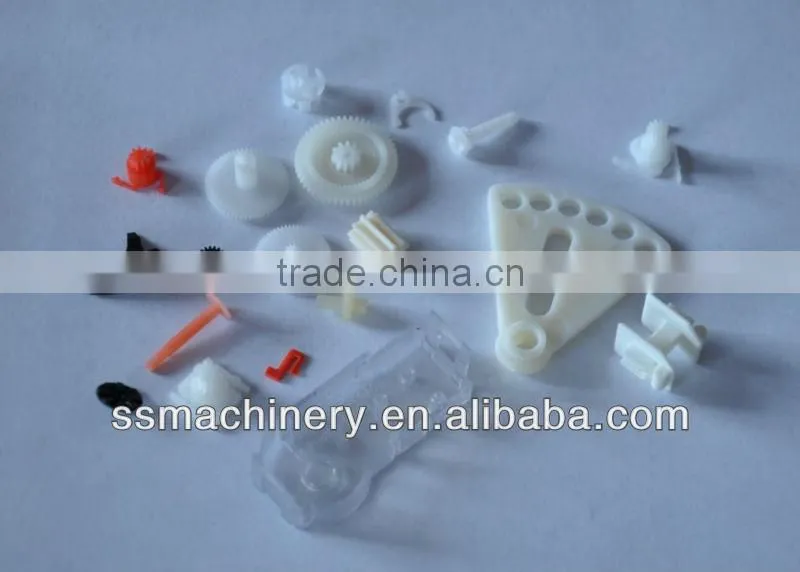

Small gears that produced by our plasic injection molding machine;
We obtained ISO9001:2008 and CE certificate, you can rely on our quality.

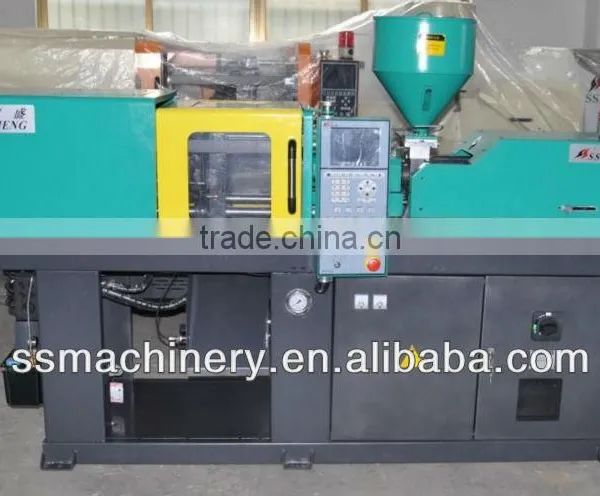

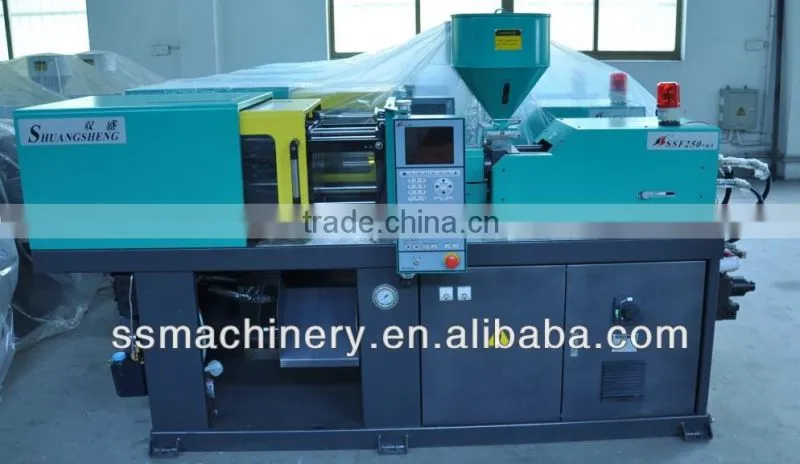

Plastic injection machine front overview;
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.
The orgnization chart of our company, average working life of the staffs is 8 years.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
