Shoe heel making injection molding machine SSF700-K5

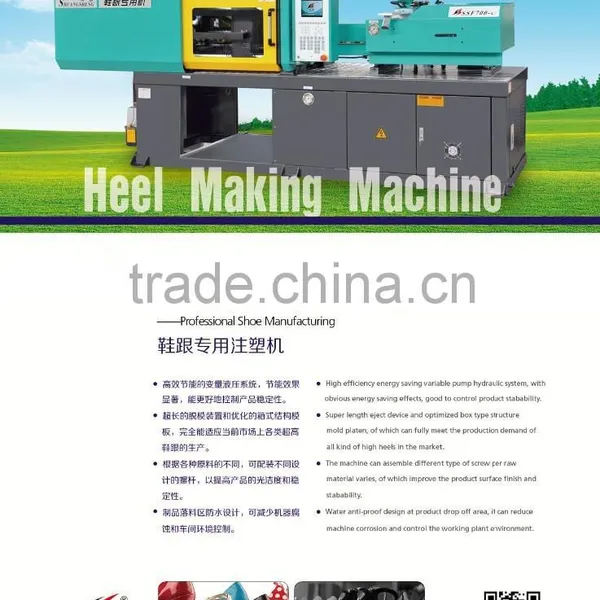

In order to meet the shoe heel market, we designed a machine that special for the shoe heel making, of which has following features;
1.High efficiency energy saving hydraulic system, with obvious energy saving effects, good to control product stabability.
2.Super length eject device and optimized box type structure mold platen, of which can fully meet the production demand of all kind of high heels in the market.
3.The machine can assemble different type of screw per raw material varies, of which improve the product surface finish and stabability.
4.Water anti-proof design at product drop off area, it can reduce machine corrosion and control the working plant environment.
The main parameters of this machine is as following;
| Items | Parameter | Unit | SSF700-K5 | |
| Injection Unit | Screw diameter | mm | A | B |
| 34 | 36 | |||
| Screw L/D ratio | L/D | 18.8 | 17.7 | |
| shot volume(theoretical) | Cm3 | 113 | 127 | |
| injection weight(PS) | g | 103 | 115 | |
| OZ | 3.6 | 4 | ||
| injection rate | g/s | 86 | 96 | |
| injection pressure | Mpa | 171 | 153 | |
| screw speed | rmp | 180 | ||
| Clamping unit | clamp force | KN | 700 | |
| open stroke | mm | 270 | ||
| distance between tie bars (W*H) | mm | 315*300 | ||
| max mould thickness | mm | 320 | ||
| min mould thickness | mm | 130 | ||
| ejector stroke | mm | 120 | ||
| ejector force | KN | 27 | ||
| ejector number | PC | 1 | ||
| dia of mould location hole | mm | 55 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 7.5 | ||
| heating power | KW | 5.1 | ||
| machine dimension | m | 3.6*1.2*1.65 | ||
| machine weight | T | 2.2 | ||
| oil tank capacity | L | 130 |
||

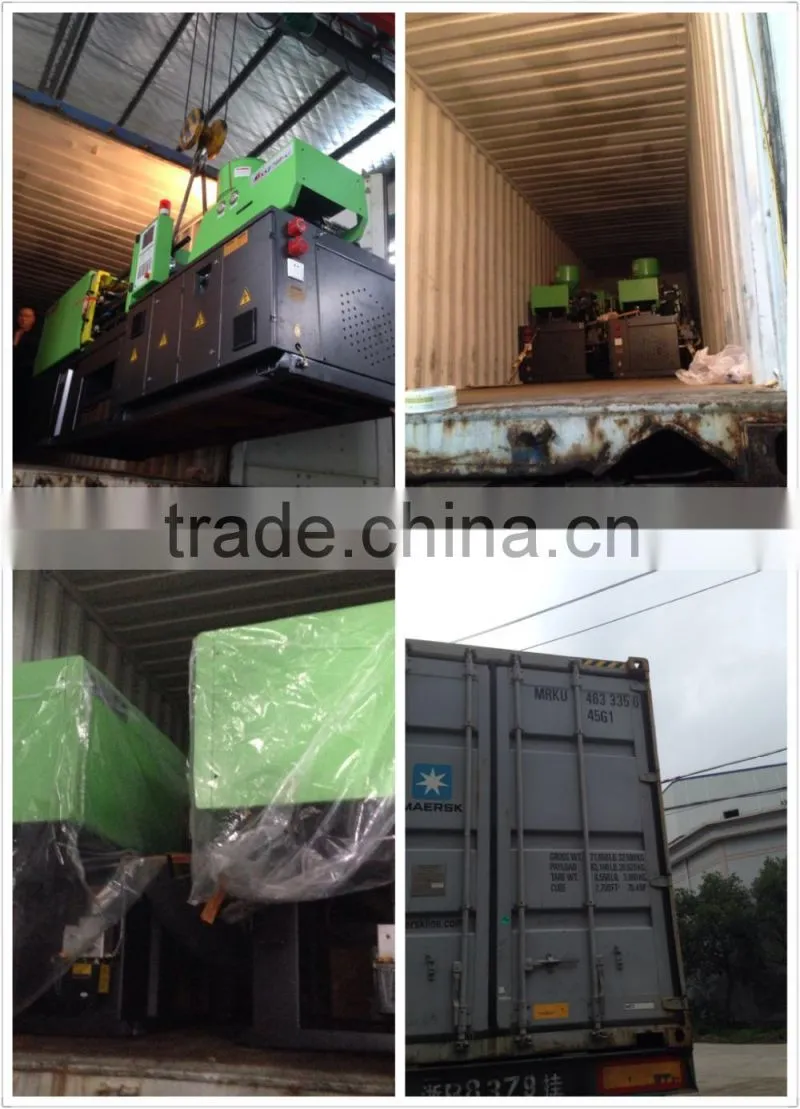

Machine loaded to container pic;
If you have any query about our injection molding machine, just contact me at any time
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
