Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Small and Precise 38T Injection Moulding Machine

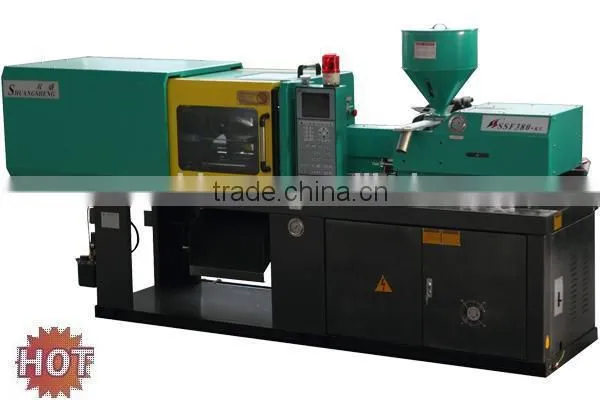

Small and Precise 38T Injection Moulding Machine
US$ 1 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, plastic injection molding machine
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale 168Ton Injection Moulding MachineUS$ 1 - 50,000MOQ: 1 Set -
Small 32T Plastic Injection Machine Export to TurkeyUS$ 1 - 50,000MOQ: 1 Set
-
Servo Motor Small Injection Moulding MachineUS$ 1 - 50,000MOQ: 1 Set
-
Small Precision 38Ton Injection Moulding MachineUS$ 1 - 50,000MOQ: 1 Set
-
Small Size Injection Molding MachineUS$ 1 - 50,000MOQ: 1 Set
Condition
New
Type
Other, plastic injection molding machine
Style
Horizontal
Brand Name
SS
Model Number
SSF380-K5
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
45g
Injection Rate
35G/S
Clamping Force
380KN
Opening Stroke
235mm
Power(W)
50HZ
Certification
CE
After-sales Service Provided
Overseas third-party support available
Our small plastic injection machines are favored by customers to produce colorchips for masterbatches and pigments, with main technical parameters as below;
| Items | Parameter | Unit | Parameter Value (SSF380-K5) |
| Injection Unit | Screw diameter | mm | 27 |
| Screw L/D ratio | L/D | 18.4 | |
| shot volumn (theoretical) | Cm3 | 48 | |
| injection weight(PS) | g | 44 | |
| plasticizing capacity | g/s | 4.3 | |
| injection rate | g/s | 35 | |
| injection pressure | Mpa | 187 | |
| screw speed | rmp | 170 | |
| Clamping unit | clamp force | KN | 380 |
| open stroke | mm | 235 | |
| space between bars (W*H) | mm | 240*240 | |
| max mould height | mm | 270 | |
| min mould height | mm | 80 | |
| ejector stroke | mm | 60 | |
| ejector force | KN | 17.5 | |
| ejector number | PC | 1 | |
| mould align diameter | mm | 80 | |
| Others | max pump pressure | Mpa | 14 |
| pump motor power | KW | 4 | |
| heating power | KW | 3.2 | |
| machine dimension | m | 2.9*1.0*1.4 | |
| machine weight | T | 1.35 | |
| oil tank capacity | L | 90 |

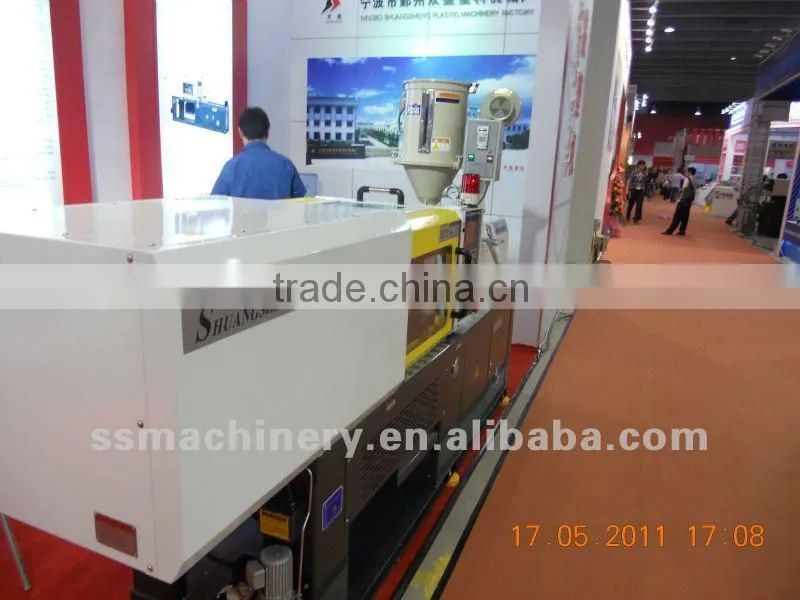

Color chips injection molding machine, on site test at Chinaplas;
We strictly control the machine quality accordingly to ISO9001:2008 requirements, what's more, in order to export legally to Europe with CE requirements.
Our machines empasis on the safety and good stable operation.
If you have any query about our injection molding machine, just contact me at any time
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
Send Inquiry to This Supplier
Mrs. Alexis Liao
Sales Manager
Ningbo Shuangsheng Plastic Machinery Co., Ltd.
Ningbo, Zhejiang, China
