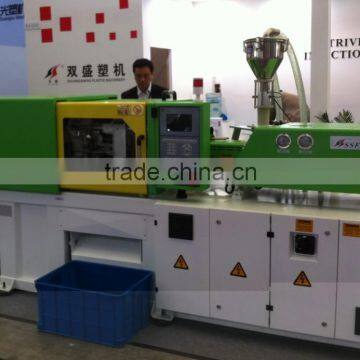

Servo motor 50T injection moulding machine
We are leading small injection moulding machine manufacturer in Ningbo,China, the largest plastic industry city. Our machines are included but not limited small color match chips injection molding machines, plastic small gears making injection machines, variable pump injection machines, servo motor injection moulding machines, of which are widely used at home appliance equipments, automobile industry, daily life industry, masterbatch and pigment industry, medical industry and ect.
Main parameters of 50T energy saving injection molding machine as below;
| Items | Parameter | Unit |
Parameter Value (SSF500-S) |
|
| Injection Unit | Screw diameter | mm | A | B |
| 28 | 30 | |||
| Screw L/D ratio | L/D | 19 | 17.7 | |
| shot volumn (theoretical) | Cm3 | 70 | 80 | |
| injection weight(PS) | g | 64 | 73 | |
| plasticizing capacity | g/s | 6.9 | 7.7 | |
| injection rate | g/s | 43 | 49 | |
| injection pressure | Mpa | 224 | 195 | |
| screw speed | rmp | 200 | ||
| Clamping unit | clamp force | KN | 500 | |
| open stroke | mm | 250 | ||
| distance between tie bars (W*H) | mm | 290*270 | ||
| max mould thickness | mm | 300 | ||
| min mould thickness | mm | 100 | ||
| ejector stroke | mm | 65 | ||
| ejector force | KN | 20 | ||
| ejector number | PC | 1 | ||
| dia of mould location hole | mm | 100 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 5.5 | ||
| heating power | KW | 3.9 | ||
| machine dimension | m | 3.2*1.1*1.6 | ||
| machine weight | T | 1.9 | ||
| oil tank capacity | L | 115 | ||
Standard features;
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Warranty; 1years
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.

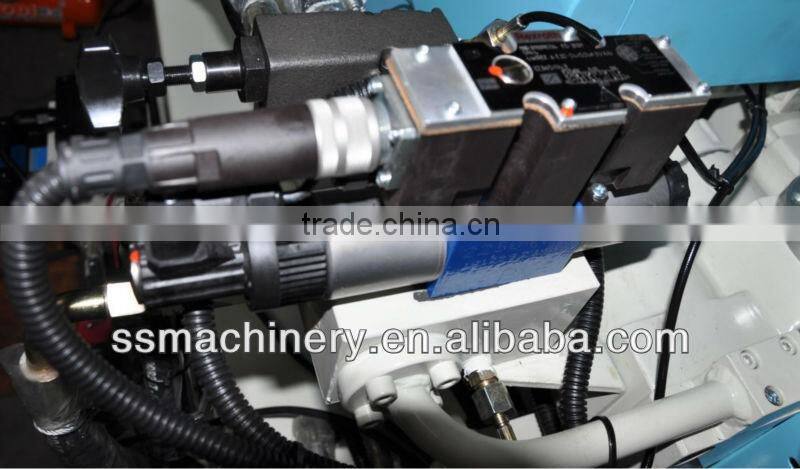

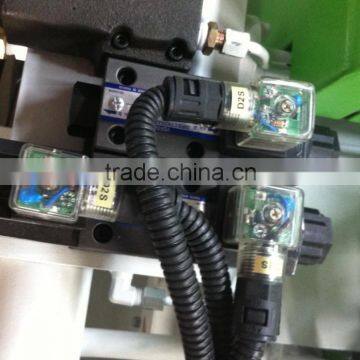

Proportional and directional vavles;

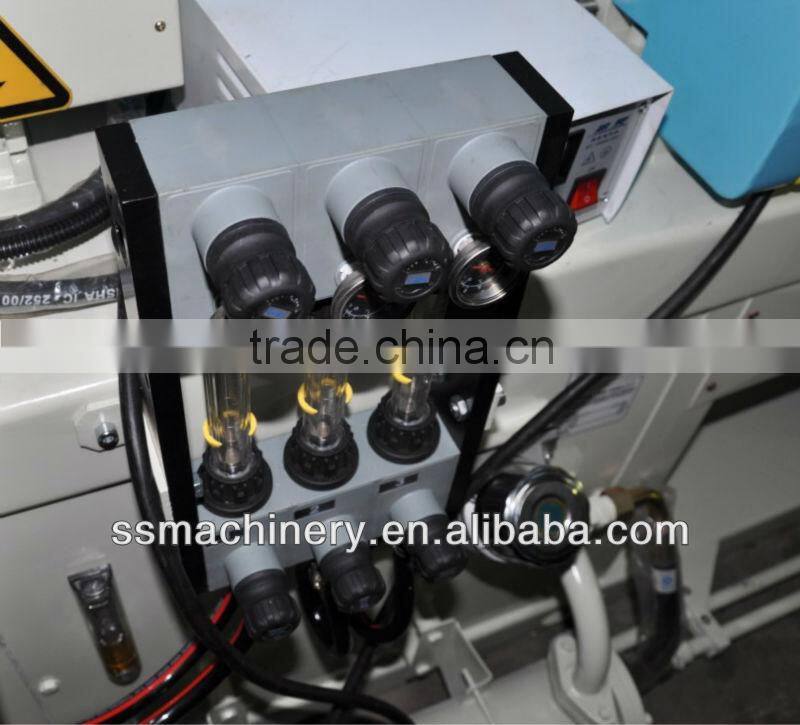

Water regulation meter of 50T closed loop injection molding machine;
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.
The orgnization chart of our company, average working life of the staffs is 8 years.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
