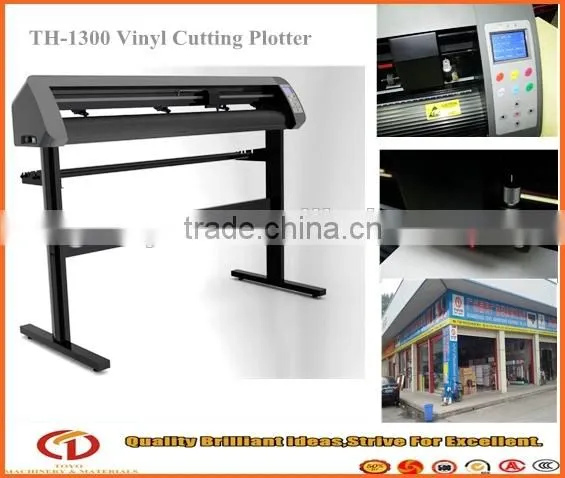

Vinyl Cutter Plotter/ Graphtec Vinyl Cutting Plotter/ Print and Cut Plotter

Vinyl Cutter Plotter/ Graphtec Vinyl Cutting Plotter/ Print and Cut Plotter photo-1
US$ 400 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Die-cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou huangpu
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Die-cutting Machine
Computerized Yes
Place of Origin Guangdong, China
Brand Name TOYO
Model Number TH 1300
Voltage 220V
Dimension(L*W*H) 1480*265*265mm
Weight 40kg
Certification CE
Warranty 1
After-sales Service Provided Engineers available to service machinery overseas







Product Description

 Specification

Type TH1300
Stand Vertical feeding paper Stand
Mainboard 32-bit CPU,4MB high speed CACHE
Control panel Large touching screen and 11 Membrane Buttons plus 3.0 LCD touching screen
Driver leading shaft, high torque motor and micro-step driver
locating system Precise electronic limited interface system and arbitrary original setting system
Max paper feed width 1300MM
Maximum cutting width 1200MM
Maximum cutting speed 500mm/s
Maximum cutting length unlimited
Knife press 0-500g(Digital adjustment)
Mechanical rssolution 0.05mm
Repeatablity <+-0.1mm
Knife(blade) TENETH  Imported alloy blade
Drawing pen 11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction DM-PL/HP-GL Automatic Identification
Interface USB/ SDcard/ serial port
Power supply AC110V /220V±10%,50Hz/60Hz
Power consumption <120W
working environment temperature:+5-+35,humidity:30%-70%
Package dimension 1600×350×440mm
Package Weight 49kg
Size 910*260*260mm



 Vinyl cutter Plotter/ Graphtec Vinyl Cutting Plotter/ Print and Cut PlotterVinyl cutter Plotter/ Graphtec Vinyl Cutting Plotter/ Print and Cut Plotter

 Vinyl cutter Plotter/ Graphtec Vinyl Cutting Plotter/ Print and Cut Plotter



Features:

1, the independent development of 32-bit operating system, more stable performance, clear interface, greatly improving efficiency.

2, the world's first full touch-type operation panel and membrane keypad dual operation, make you more convenient operation.

3, Cool engraved plotter unique large-screen backlit display, is 2-5 times the market plotter, the parameter adjustment arbitrary.

4, better communication, SD card, serial, USB three kinds of transmission, from the computer for processing, more humane.

5, ultra-quiet operation of the circuit design of imported models, the motor drive imported subdivision driver chips,

  so you stay away from noise pollution.

6, a single paper imported steel thorn go, make sure your cutting precision errors.

7, cool engraved knife cutting plotter global leader in high-pressure design, rigid PVC, card paper, reflective film easily cut.

8, the machine cache up to 4MB, and then a big re-carving long file not doodle, crash.

9, the use of advanced aluminum alloy, matte painting, craft excellent, true luxury models.

10.High Quality , High Stability: as use high speed ,big power step motor,micro step driver;

11.Contour cut: when used with sofeware FLEXI(Model no. with L has this function);



12.Scale adjustment function: only we have this function in China.



Vinyl cutter Plotter/ Graphtec Vinyl Cutting Plotter/ Print and Cut Plotter







Main products:

Cutting plotter , platform plotter , Engraving machine , Laser plotter , Optional Accessories



Usage:

1.Cut artwork created by yourself , such as sticker,, logos and labels made from vinyl or iron-on material;

2. Can be used to make stickers, transfers, POP signs and graphics, shop signs, window signs logos and graphics;



Material:

That the hickness is 0.25mm , such as sticker, reflect film, fluorescent film, abrasive blasting material, lacquer protective membrane, and blasting protective rubber that thickness is 1mm.



Packaging & Shipping



It is packed in the Standard Carton, put together with install cables, a set of software, cutting blades.



Company Information

Our office is located in Guangzhou. We have our own factory and technician group. We have



passed CE certification and ISO9000 certification. With the main business of  Advertising trade,



.we entered the international market.  We have gained a high reputation in China as well as some



overseas areas, like turkey, India, Thailand, Indonesia, Brazil, Kenya, Zambia, Dubai, Australia,



Mexico and so on.







FAQ

Guarantee and after sales service:



1) The machine guarantee is 1 year;



2) 24hours technical support by email or remote control-TeamViewer or calling;



3)English version manual and operation video CD disc
