Biomass Fired Steam Boiler for Industry
US$ 150,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Other, Industrial, Industry/Power station
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Steam BoilerUS$ 200,000 - 2,000,000MOQ: 1 Set -
2% Saved Hot Sale Double Drum Steam Boiler Ready for ShippingUS$ 290,000 - 330,000MOQ: 1 Set
-
High Efficiency Solid Waste Fired Steam Boiler for IndustryUS$ 300,000 - 400,000MOQ: 1 Set
-
3% Saved Wood Pellet Fire Steam Boiler for IndustryUS$ 80,000 - 100,000MOQ: 1 Set
-
Solid Waste Steam BoilerUS$ 150,000 - 200,000MOQ: 1 Set
Condition
New
Type
Natural Circulation
Usage
Other, Industrial, Industry/Power station
Structure
Water Tube
Pressure
Low Pressure
Style
Other, Horizontal, Assembly
Fuel
Other, Coal-fired, Biomass/Coal
Place of Origin
Shandong, China
Brand Name
HUAYUAN
Model Number
SZL-10-1.25
Output
Steam
Dimension(L*W*H)
7530*3340*3550mm
Weight
30T
Certification
ASME
After-sales Service Provided
Engineers available to service machinery overseas
SZL Series Coal-fired Assembly Steam Boiler
| Items | SZL15-1.25/1.6 | SZL15-2.5 | SZL15-1.25/300 | SZL15-2.5/400 | SZL20-1.25/1.6 | SZL20-2.5 | SZL20-1.6/300 | SZL-20-2.5/400 |
| Rated Capacity T/H | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 20 |
| Rated Pressure MPa | 1.25/1.6 | 2.5 | 1.25 | 2.5 | 1.25/1.6 | 2.5 | 1.6 | 2.5 |
| Steam Temperature °c | Saturated | Saturated | 300 | 400 | Saturated | Saturated | 300 | 400 |
| Fire Grate | Chain grage | Chain grate | Chain grate | Chain grate | Chain grate | Chain grate | Chain grate | Chain grate |
| Grate area m² | 17.38 | 18.84 | 18.84 | 18.84 | 21.33 | 24 | 21.1 | 24 |
| Boiler Heat surface m² | 324 | 374.3 | 408.3 | 455.3 | 441 | 459 | 478.7 | 554 |
| Boiler tail Heat surface m² | 330.5/354 | 362 | 238 | 362 | 317 | 481 | 576 | 576 |
| Fuel consumpation kg/h | 2123/2130 | 2121 | 2333 | 2510 | 2726 | 2743 | 3083 | 3333 |
| Exhaust smoke temperature °c | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
| Dust emmsion concentration mg/Nm3 | <80 | <80 | <80 | <80 | <80 | <80 | <80 | <80 |
| Heat Efficiency % | 82.3 | 82 | 82 | 82 | 82.5 | 82.5 | 80.4 | 82.5 |
| Size (L*W*H)mm | 9900*3400*3530 | 10020*3480*3740 | 10020*3480*3740 | 10020*3480*3740 | 10070*3550*3400 | 10070*3550*3400 | 10750*3550*3400 | 10070*3550*3400 |
| Weight T | 36.7/38 | 39.7 | 39.7 | 39.7 | 41/43.4 | 47.8 | 44 | 48 |
| Installated size(L*W*H)mm | 11300*5840*6200 | 11300*5800*6700 | 11300*6710*8720 | 13000*6160*7720 | 14000*5400*7920 | 14000*5670*7820 | 13000*6700*9000 | 13000*7100*9000 |
| Accept Special Design | yes | yes | yes | yes | yes | yes | yes | yes |

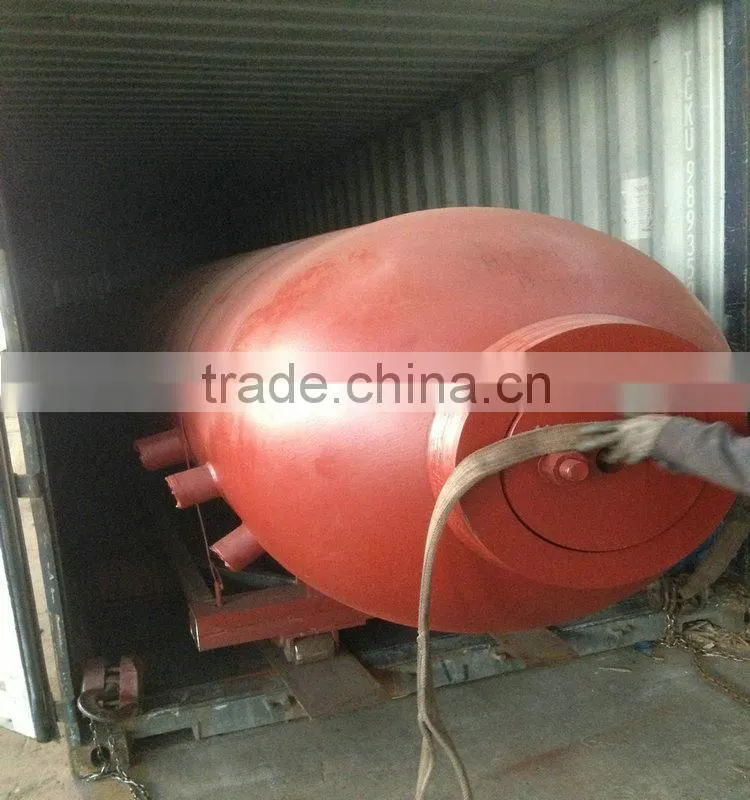

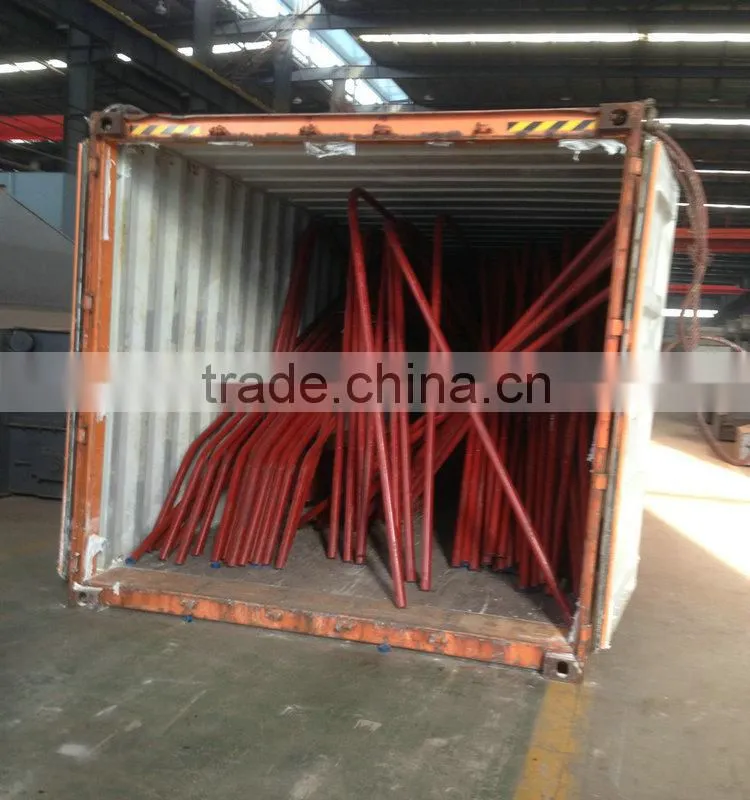

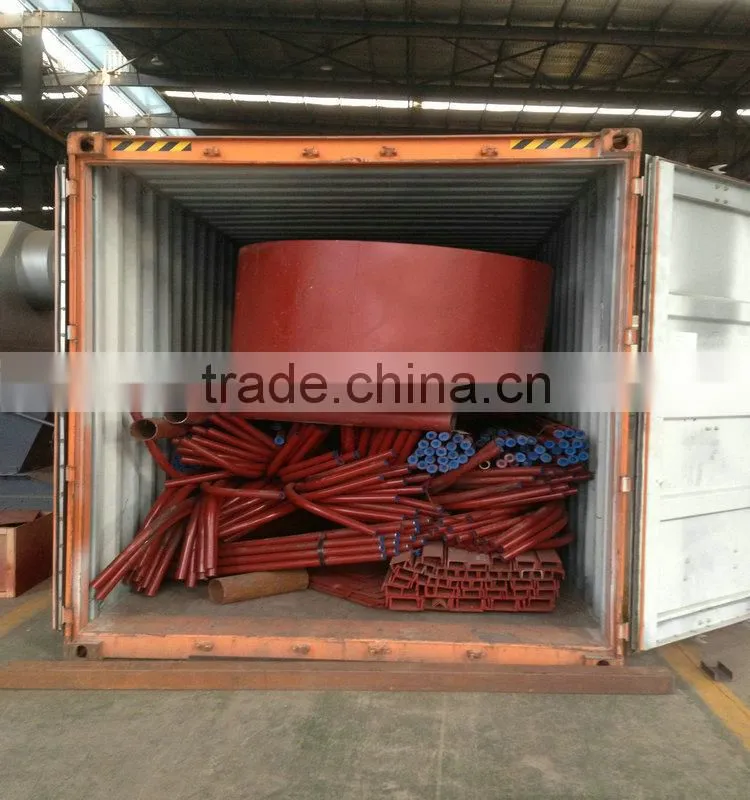

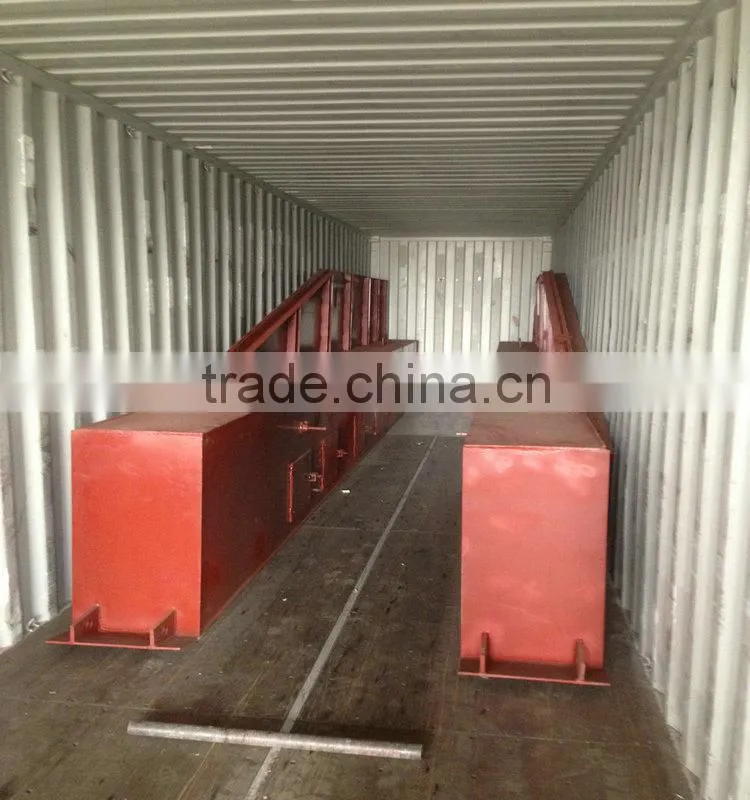

Packaging & Shipping
