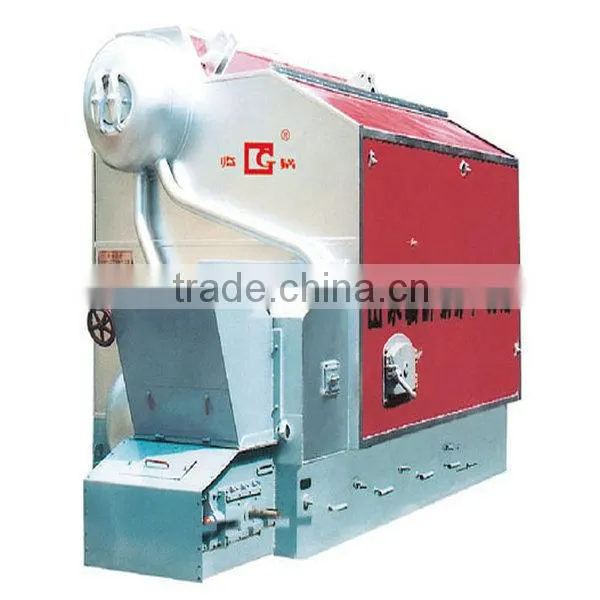

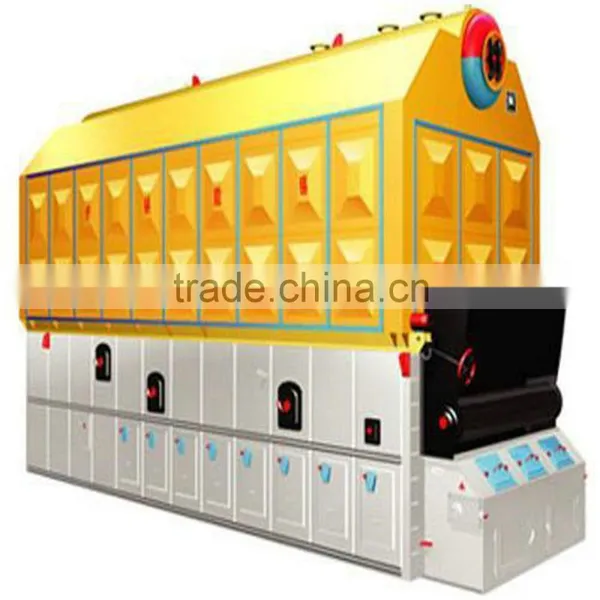

2% Saved Hot Sale Double Drum Steam Boiler Ready for Shipping

Name: 2% Saved Hot Sale Double Drum Steam Boiler Ready for Shipping
Brand: HUAYUAN
Availability: InStock

FOB Price

US$ 290,000 - 330,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Other, Industrial, Power station	Structure	Water Tube
Pressure	Low Pressure	Style	Other, Horizontal, Assembly
Fuel	Other, Biomass or Coal, Biomass/Coal	Place of Origin	Shandong, China
Brand Name	HUAYUAN	Model Number	SZL-20-2.5/400
Output	Steam	Dimension(LWH)	1007035503400mm
Weight	48T	Certification	ASME
After-sales Service Provided	Engineers available to service machinery overseas

Product Features

The boiler shall adopt double drum, monolayer arrangement, compact structure, as well as large heating surfaces which are more 10% than those of same kinds of products, featuring the following advantages such as sufficient output, safe and reliable operation ,short construction period, and low installation cost ect.
The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas .At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness ,as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.
The grate shall employ the technology patent of small roller structure, boundary grate and so on ,improving the operation reliability of the boiler.
Since the adoption of technology patent for the sealed wind chamber and bilateral grate air register, and the application of machining cone seal structure to grate adjusting air equipment, the sensitivity of the grate shall be improved.
The boiler was awarded the following titles: first class products of mechanical and electrical department, excellent energy-saving products promoted by state, excellent energy-saving products of Shandong province.
According to the customers’ requirements, the layering burn device and other energy saving equipments, implemented in state, shall be matched.

Certifications

Parameter List

Items	SZL20-1.25/1.6	SZL20-2.5	SZL20-1.6/300	SZL-20-2.5/400
Rated Capacity T/H	20	20	20	20
Rated Pressure MPa	1.25/1.6	2.5	1.6	2.5
Steam Temperature °c	Saturated	Saturated	300	400
Fire Grate	Chain grate	Chain grate	Chain grate	Chain grate
Grate area m²	21.33	24	21.1	24
Boiler Heat surface m²	441	459	478.7	554
Boiler tail Heat surface m²	317	481	576	576
Fuel consumpation kg/h	2726	2743	3083	3333
Exhaust smoke temperature °c	170	170	170	170
Dust emmsion concentration mg/Nm³	<80	<80	<80	<80
Heat Efficiency %	82.5	82.5	80.4	82.5
Size (LWH)mm	1007035503400	1007035503400	1075035503400	1007035503400
Weight T	41/43.4	47.8	44	48
Installated size(LWH)mm	1400054007920	1400056707820	1300067009000	1300071009000
Accept Special Design	yes	yes	yes	yes
