QTJ4-25 Block Making Machinery

Name: QTJ4-25 Block Making Machinery
Brand: shining asia
SKU: 112614541
Availability: InStock

US$ 27,020 - 28,020 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Hollow Block Making Machine

Brick Raw Material:

Cement

Linyi Shiningasia International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/LIANYUNGANG

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Hollow Block Making Machine

Brick Raw Material Cement

Processing Brick Production Line

Method Autoclaved Aerated Concrete

Automatic Yes

Capacity 4/25s

Place of Origin Shandong, China

Brand Name shining asia

Model Number QTJ4-25

Voltage 380V

Power 29.4KW

Dimension(L*W*H) 3700*1500*2510

Certification ISO9002

Warranty 3years

After-sales Service Provided Overseas third-party support available

Specifications

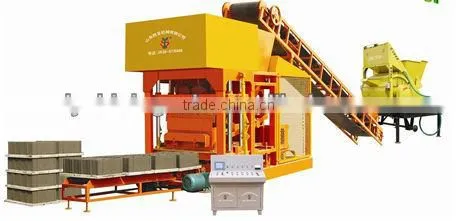

linyi Shining Asia Industry CO.,LTD. QTJ4-25 block making machinery, make the best block.

QT style Block/Brick Production Line			Qty	QT4-25
Capacity	No.	Size	——	Pcs/mould	Pcs/ 8 Hr
	1	400x200x100	—	7	6720
	2	400x200x150	—	5	4800
	3	400x200x200	—	4	2880

System	No.	Configuration	Qty	style	Unit price
Batching and mixer system	1	Batching Machine	1 set	PL800	5,600
	2	Concrete Mixer (With Loading system and Water Pump)	1 set	JDC350	4,320
	3	Conveying machine(belt)	1 set	L=7M	1,100
	4	Batching and mixing control system	1 set	include
Amount				11,020

Forming system	5	QTJ Forming machine ( include free one mould)	1 set	QTJ4-25	16,000
	6	feeding machine	1 set	included
	7	Pallets Feeder	1 set	included
	8	Clean machine	1 set	included
	9	Automatic control system	1 set	included
	10
	11
	12
Amount				16,000

stacking System	15
stacking System	16
Amount				0

Base total price (only include mix/batching system, forming machine system, stacking system, center control system, workshop inner cable)				27,020

Note:
1) Loading : need 2 x 40'HQ to fit whole production line.
2) Delivery Time: 20~30 days
3) Install & Test : One technician will be dispatched to install, test and train matters, the cost for technician is USD50 per day. The installation time is 20 days to 30 days.
4) Payment: 30% as down payment paid by T/T , 70% as the balance paid by T/T.
5) Guarantee: under one year. For fault which will effect normal production, the buyer should send picture and video of it, then seller will check and confirm the resposibilty belong to which part. If it's fault of machine itself, the buyer should repair for free, and buyer should responsible of techinican's accommodation. If not, the buyer should pay round-trip ticket, accommodation and USD100 per day for techinician.

Main Technical Specifications
		400x200x200mm 4pcs/time 5760pcs/8hrs
Power		29.4KW
Forming Time		15 seconds
Overall Size		3700x1500x2510mm
Vibration Force		100KN
Pallet Size		900x500x30mm
Vibration Frequency		45~75Hz
Rated Pressure		16MPa

Remark:
1 we can provide the mould according to the demand within the prduction capacity of the machine.
2 The height of the cement hollow block should be within 200mm
3 The carrier size is different from one model to model
4 one machine equip with one free mould
5 one additional mould is 1000USD
