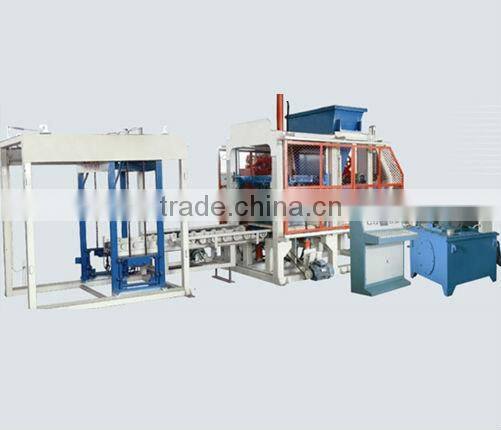

QT4-15 Block Molding Machine

Specifications

QT4-15 block molding machine

QT4-15 block molding machine is according to China's national conditions, combining the majority of new and old customers advice a new model of the improved design, production of high quality, durability strong, high production efficiency, suitable for all kinds of high strength environmental protection brick, chain blocks, parking lot, grass brick, hollow block, etc. Production products high compressive strength, size standard, beautiful. QT4-15 machine running automatically, using hydraulic transmission, double cloth (basic material and color fabrics), a vibration pressure, height and compactness of the function of control. Vibration force big, simple operation, convenient maintenance, reliable operation, etc. Unique material models equipped with multiple rows in the stirring fork, loading on the mould box, thoroughly solve porous brick loading problem.
QT4-15 baking-free brick machine features:
1, the electrical system adopts the imported color touch screen and PLC programmable controller control equipped with data input and output devices, control systems include security logic control and fault diagnosis system.
2, imported hydraulic components and seal, high dynamic performance proportional valve, can adjust the volume of oil according to the requirements of the different work and pressure, with precise control of key parts.
3, the body with high precision, high strength castings and special welding technology and materials manufacturing, good rigidity, resistance to vibration, long service life.
4, the machine USES four rod guide way to ensure the pressure head and the mould precision motion.
5, the machine USES mesa vibration extrusion forming, the reciprocating oriented feeding device, the molding cycle is short, high production efficiency, block close-grained intensity is high quality, accurate size.
6, use machines, electricity, liquid integration of technology, make the equipment operation each cycle is consistent, thus forming products high stability, scrap rate low.
7, multi-use by changing the mold to produce various specifications of porous brick, hollow block, kerbstone, pavement brick and tree planting grass brick, slope protection brick and other cement products.
Eight, take the fabric to produce color pavement brick, etc.
QT4-15 baking-free brick machine parameters: forming blocks
390 * 190 * 190 (mm) 4 pieces/mold
Molding cycle
15 to 20 seconds
The vibration frequency
3000 times/min
Vibration force
40 ~ 50000 cattle
The machine total power
25.35 kW / 380 v
Plate size
850 x 560 x 8 ~ 35 (mm)
The host dimension
9500 * 2800 * 2800 (mm)
The switchboard weight
7.5 T
QT4-15 baking-free brick machine production table:
For size molding cycle blocks production hours production cubic number born days production cubic number
(mm) solid/hollow bricks (SEC/module) (block/module) (piece/hour) about (m3 / h) (piece/day) about (m3 / day)
240 x115x53 15-20 24 6-8, 4320-5760 4320-5760-48-64
240 x115x90 15-20 12 5-7, 2160-2880, 40, 17280-23040-56
240 x180x90 15-20 8, 1440-1440-5-7, 11520-40, 15360-56
190 x190x190 15-20 8 10, 1440-1920-13, 11520-15360, 80-11520
390 x90x190 15-20 8 10, 1440-1920-13, 11520-15360, 80-11520
390 x120x190 15-20 June 10, 1080-1440-13, 8640-11520, 80-104
390 x190x190 15-20 April 10, 720-960-13, 5760-7680, 80-5760
390 x240x190 15-20 3, 540-720 10-13, 4320-5760, 80-4320
400 x100x200 15 to 20 July 10, 1260-1680-13, 10080-13440, 80-10080
400 x150x200 15-20 5, 900-1200, 11-14, 7200-9600, 88-7200
400 x200x200 15-20 3 8 to 11, 540-720, 4320-5760, 64-4320
Gauge ruler "for molding cycle molding blocks production hours production square square number number of production days production
(mm) pavement brick (SEC/module) (block/module) (piece/hour) about (m2 / h) (piece/day) about (m2 / day)
200 x100x60 20-25 14 40-50, 2016-2520, 16128-20160, 322-16128
225 x112. 44 x60 20-25 May 12, 1728-1728-54, 13824-17280, 350-13824
250 x160x60 20-25 9 40-50, 1296-1620, 10368-12690, 320-10368
X250x60 20-25 June 250, 54, 864-1080-67, 6912-8640, 432-6912
400 x200x80 20-25 4, 46, 576-720-57, 4608-5760, 368-4608
