Help CenterDZ601-3B Portable Single Phase Electricity Meter Calibrator
Related Products
-
MT300D Three Phase Portable Meter Test EquipmentUS$ 3,500 - 8,500MOQ: 1 Set -
DZ601-3B Type Single Phase Electricity Meter CalibratorNegotiableMOQ: 1 Set
-
MT3000D Worksite Meter CalibratorUS$ 3,500 - 8,500MOQ: 1 Set
-
SH15 Onsite Single Phase Energy Meter CalibratorUS$ 3,500 - 8,500MOQ: 1 Set
-
DZ603-3B Portable Three Phase Energy Meter Testing BenchUS$ 3,500 - 8,500MOQ: 1 Set
Specifications
1. Test all items as per IEC and ANSI2. Certificate: ISO 9001
3. Accuracy class: 0.05
Specifications
1.Certificate: ISO 9001;
2.Accuracy class: 0.1, 0.2;
3.High stability;
4.Prompt delivery
5.Excellent aftersale service

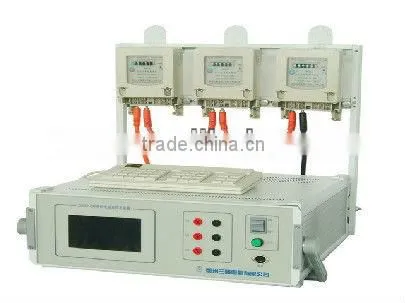

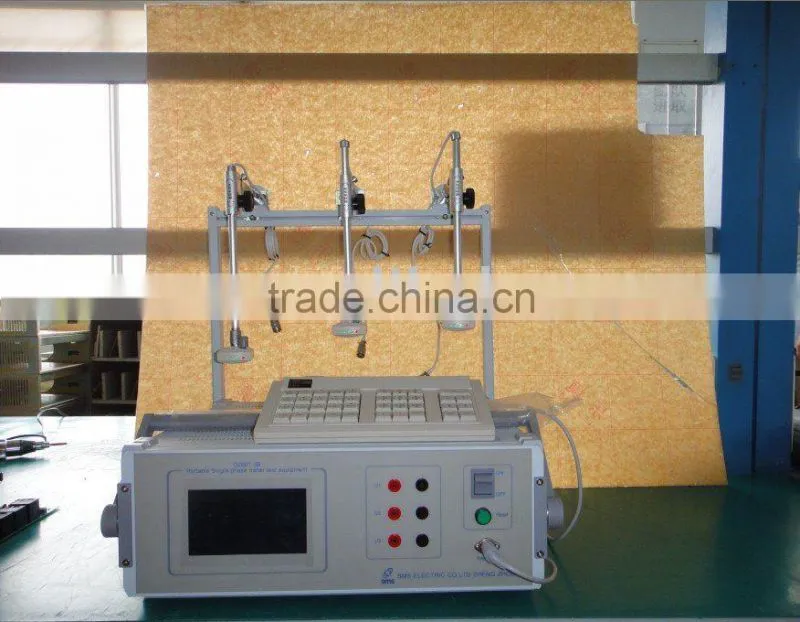

DZ601-3B Portable Single Phase Energy Meter Test Bench
Main performance:
1. New type aluminum alloy case, composed meter-mounting rack, light weight and portable; Single phase electric or mechanical meter can be tested simultaneously.
2. Programmed control and high accuracy testing power source, all operations can be carried out via the special keyboard.
3. Large screen liquid crystal display, and all operation process can be displayed on the screen.
4. Automatic captures spots from tested meter, starting and creep testing.
5. Saving 240 meters tested data.
6.Saved data could be managed by PC with RS232.
Technical index:
1. Accuracy class: 0.1, 0.2
2. Output current: 0.01-60A, range: 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A, 60A.
3. Output voltage: 220V(230V,240V)
4. Output power: 30VA for voltage, 60VA for current.
5. For each range of voltage and current, 0-120% of range value could be continually adjusted, the resolution: 0.1o
6. Phase scope: 0-359.9o, adjusted resolution: 0.1o
7. Adjusted frequency scope: 45.00--65.00Hz, resolution: 0.1Hz.
8. Dimensions:480*320*25mm
9.Power supply: 220V, 230V, 240V, +/-10%.
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
