Specifications
1.Certificate: ISO 9001;2.Accuracy class: 0.05, 0.1
3.High stability
4.Prompt delivery
5.Excellent aftersale Service

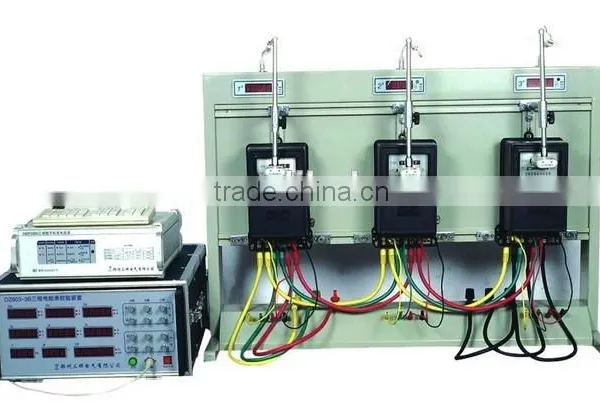

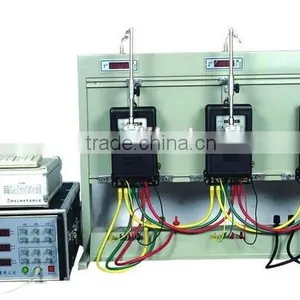

DZ603-3B Portable Three Phases Energy Meter Testing Equipment
Main Performance
1. The operation can be controlled via computer software or special keyboard.
2. Program controlled power source, high precision reference standard meter.
3. Output voltage and current adopts soft-stop and start, alarm protection when voltage short circuit and current open circuit,
4. Voltage, current, frequency and phase shall be set freely under manual calibration.
5. Output voltage and current signal can be set according to the city power.
6. Small size, high stability and portable.
Index:
item |
Class 0.05 Class 0.1 |
|
Equipment accuracy class |
0.05 for active |
|
Standard meter accuracy class |
0.05 |
|
Voltage isolated transformer(PT) accuracy class |
0.01 |
|
Measure repeatio (cosφ=1.0) |
0.01 |
|
Current range |
0.1A,0.5A,1.0A,2 .5A ,5A,10A,20A,50A,60A |
|
Voltage range |
57.7V 100V 220V 380V |
|
Output power |
voltage |
50VA/phase |
Current |
60VA/phase |
|
Voltage adjusting |
Adjusting range |
0~120% |
Adjusting resolution |
10%,1%,0.1%,0.01% |
|
Current adjusting |
Adjusting range |
0~120% |
Adjusting resolution |
10%,1%,0.1%,0.01% |
|
Phase adjusting |
Adjusting range |
0.00°~359.99° |
Adjusting resolution |
10°,1°,0.1° |
|
Frequency adjusting |
Adjusting range |
45.00~65.00Hz |
Adjusting resolution |
10Hz,1Hz,0.1Hz |
|
Waveform distortion |
1.0% |
|
Power stability |
0.05% |
|
|
Display Accuracy class |
Voltage |
±0.1% |
Current |
±0.1% |
|
power |
±0.1% |
|
frequency |
±0.1% |
|
phase |
±0.2° |
|
Working power |
220V±10%,50Hz (or as per your request) |
|
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
