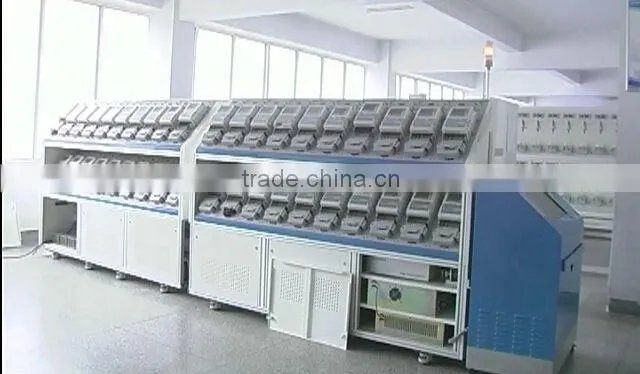

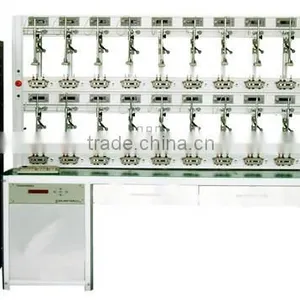

24 Energy Meter Positions Single Phase Energy Meter Calibrator
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
- Fruit Hardness Tester FHT-05 for Blueberry
- DEM-4M3C Three Phase KWH Electric Meter RS485 Din Rail Energy Meter With LCD Display
- High Accuracy MCM2600 Multi Channel Power Meter Multi-circuit Energy Meter
- APM-96Q Industrial Electric Multifunction Panel Meter Power Meter Energy Meter With RS485
- Electrical Dual Channel DC KWH Power Meter DC Energy Meter for EV Charging Station
- Digital Gaussian Meter GS-100DAH price
Product Details
Place of Origin: | Henan, China | Brand Name: | SMS | Model Number: | DZ601-24 |
Display Type: | Analog and Digital | Phase: | Single Phase | Accuracy Class: | 0.05, 0.1 |
Output Voltage: | 180VA/Phase | Operating Temperature: | -10℃---40℃ |
Product Description
Specifications
1. Test all items as per IEC and ANSI2. Certificate: ISO 9001
3. Accuracy class: 0.05

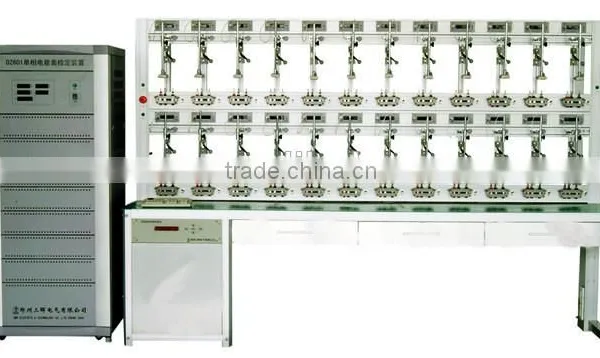

DZ601-24 Single Phase Energy Meter Test Equipment
Introduction
the equipment is a automatic testing equipment can test 24 single phase energy meter at same time; composed by programmed controll testing power,high accuracy standard power energy meter,error account equipment,controlled PC, inside modules connected by RS485
Refers standard
IEC 61036 (1996) Alternating current static watt-hour meters for active energy.
IEC 61268 (1995) Alternating current static var-hour meters for reactive energy.
IEC 60521 (1988) Alternating current watt-hour meters classes 0.5. 1 and 2.
IEC 60736 (1982) Testing equipment for electrical energy meters.
IEC 61358 (1992) Acceptance inspection for direct connected alternating current static watt-hour meters for active energy (class 1 and 2).
DIN 43857 (Part1) Electricity meters in moulded cases without current transformers. Principal Dimensions for single-phase meters
BS 7856 Design of alternating current, watthour meters for active energy (class 1 and 2).
Character
1.new type aluminum alloy case special machine case, science and technology morden appearance;
2. matching number multifunctionalstandard meter,high accuracy and well stability;
3. operated by special keyboard;
4. controlled by computer,with software can auto or manual testing meter;
5. PC can warmup in advance , when warmup scanning head can auto capture spot,judge electric pulse connection .
6. can test same specification different meter constant energy meter at same time;
7. according testing regulation requirement ,auto test single phase energy meter no-load,starting ,basic error ,standard deviation;
8. testing and measure project can be edit,copy,delete,backup and set password to protect;
9. auto capture mechanism meter spot .to decrease starting,no-load testing time;
10. empty meter current can auto short connected ,have no use for outside connection;
11. setted output voltage short circuit,current opened ,the equipment will alarming to protect;
12. with regulation auto account starting test,no-load test time and set output voltage ,current ,auto judge testing result .
13. reading test by three modes to test energy meter constant:by pulse number ,time and start/stop energy ;
14. Scanning heads suitable for solid state meters with infrared or visible light, modulated or un-modulated.
15.can set and measure 2-21 times harmonic;measure distortion , analysis harmonic and protract waveform to output;
16. auto record data,amend ,judge testing result ,saving data,auto backup database;
17. support more testig record,report ,certificate print ,print format multiplicity .;
18. support bar code input energy meter asset information ,auto analysis bar code information , support user-defined bar code information;
19.support error graph, user system administrate setting ,error upperlimit and lower limit setting , more testing project setting;
20. software have sell system MIS port , testing data can auto upload to sell system;
21.support MISnet database or server reading meter asset information,download testing project,working menu ;
22. computer software support long-distance maintenance .
Index
1) Accuracy classes: 0.05, 0.1, 0.2
2) Model: DZ601-24
3) Equipped with high precision single phase reference standard meter
4) The maximum output current: 120A; ranges : 0.1A, 0.5A, 1.0A, 2.5A,
5A, 10A, 20A, 50A, 100A
5) Output voltage: 220V
6) Voltage output power: 480VA, current power: 700VA
7) For each range of current, 0 ~ 120% of the range value can be
continually adjusted, the resolution is better than 0.01% of range
value
8) Accuracy of indication meter:
a) Voltage meter: class 0.5
b) Current meter: class 0.5
c) Frequency meter: 0.3
d) Phase meter: 0.3
9) Phase scope 0 ~ 359.9 degrees, adjusted resolution is 0.1(0.01) degree
10) Normal testing points of power factor: 0.5C, 0.8C, 1.0, 0.8L, 0.5L
11) Range of frequency is from 45 to 65Hz, adjusted resolution is
0.1Hz
12) Shall set and measure 2 - 21 times harmonic wave and measure the
distortion
13) Output power stability: 0.05% (PF=1.100s)
14) Wave distortion of outputting: <1%
15) Working ambient temperature: 23±2°C, relative humidity is
less than 85%
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
