DZ601-12 Single Phase energy Meter calibrator
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
- Fruit Hardness Tester FHT-05 for Blueberry
- DEM-4M3C Three Phase KWH Electric Meter RS485 Din Rail Energy Meter With LCD Display
- High Accuracy MCM2600 Multi Channel Power Meter Multi-circuit Energy Meter
- APM-96Q Industrial Electric Multifunction Panel Meter Power Meter Energy Meter With RS485
- Electrical Dual Channel DC KWH Power Meter DC Energy Meter for EV Charging Station
- Digital Gaussian Meter GS-100DAH price
Product Details
Place of Origin: | Henan, China | Brand Name: | SMS | Model Number: | DZ601-12 |
Display Type: | Analog and Digital | Phase: | Single Phase | Accuracy Class: | 0.05, 0.1 |
Output Voltage: | 180VA/Phase | Operating Temperature: | -10℃---40℃ |
Product Description
Specifications
1. Test all items as per IEC and ANSI2. Certificate: ISO 9001
3. Accuracy class: 0.05

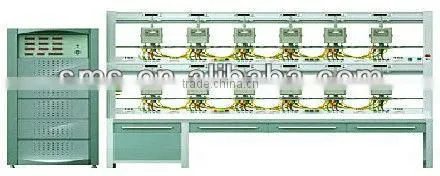

DZ601-12 Single Phase Energy Meter Test Equipment
Features:
1) New-type aluminum material rack; the structure is beautiful and elegant
2) 12 single phase energy meters can be tested simultaneously
3) The tested meters can be same specification but different constant.
The multi-type meters such as single-phase mechanical,
electromechanical and electronic meters can be tested simultaneously
4) Outputting voltage, current, power, phase angle and frequency is
displayed digitally at the PC interface software. Fully automatic meter
testing controlled by computer with friendly-user software
5) Meter Errors can be displayed on each position for mounting meters. When error
exceeds set value, the system will indicate
6) Automatically capture black spots of mechanical and electromechanical
meter, or the LED signal of electronic meter, automatically carry out
start test and no-load test
7) The tested meters can be sampled with scanning head
8) Automatic short current circuit of the idle meter position, self-lock
meter-hanging seat
9) (opitonal)Equipped with time testing apparatus and GPS clock time as the
standard to do broadcasting test of multifunction meters, such as the
daily error, basic frequency error, time error, time interval error and
maximum demand will be tested. All functions can be achieved by
special function keyboard and the computer. The seller shall supply the
buyer with the communication protocol of the RS485 port for GPS clock
10) Automatic warning when the voltage output is short circuit (overload)
and the current output is open circuit (overload)
11) Fully automatic meter testing controlled by computer, intelligent data
processing and network data sharing
12) programmable of reporting table and certificate formats
13) Supports bar code reading to record meter information
Specifications:
1) Accuracy classes: 0.05, 0.1, 0.2
2) Model: DZ601-12
3) Equipped with high precision single phase reference standard meter
4) The maximum output current: 120A; ranges : 0.1A, 0.5A, 1.0A, 2.5A,
5A, 10A, 20A, 50A, 100A
5) Output voltage: 220V
6) Voltage output power: 320VA, current power: 400VA
7) For each range of current, 0 ~ 120% of the range value can be
continually adjusted, the resolution is better than 0.01% of range
value
8) Accuracy of indication meter:
device accracy class0.05 (0.1) class 0.2
a) Voltage meter: class 0.2 class 0.5
b) Current meter: class 0.5 class1.0
c) Frequency meter:calss 0.2 class 0.2
d) Phase meter: ±0.5° ±0.5°
9) Phase scope 0 ~ 359.9 degrees, adjusted resolution is 0.1 degree for class0.1device, 0.01degree for class 0.05 device.
10) common testing points of power factor: 0.5C, 0.8C, 1.0, 0.8L, 0.5L
11) Range of frequency is from 45.00 to 65.00Hz, adjusted resolution is
0.1Hz
12) Shall set and measure 2 - 21 times harmonic wave and measure the
distortion
13) Output power stability: 0.05%
14) Wave distortion of outputting: <1%
15) Working ambient temperature: 23±2°C, relative humidity is
less than 85%
16) Voltage supply: AC 220V + 10%, 50Hz, 60Hz
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
