10.1inch 1280*800 lvds IPS display capacitive touch panel with USB interface CTP

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Wilcon
Model Number	SW101-IPS-CTP(USB)		Type	Other, TFT, TFT

10.1inch IPS display touch panel

LCD specification

Part 1:LCD parameters
1	Product name	10.1inch lcd module
2	Model number	SW101-IPS-CTP9(USB)
3	Size	10.1INCH
4	Type	TFT
5	Viewing angle	IPS
6	Display scale	16:10
7	Display mode	Normally white, Transmissive
8	Resolution	1280*800
9	Piexel pitch	0.0565(W)*0.1695(H)
10	Dimension	229.46149.14.7mm
11	Active area	216.96*135.6
12	Color	16.7M
13	Color arragement	RGB
14	Interface	LVDS
17	Response time	35ms
18	Contrast ratio	800:1
19	Brightness	280cd/m2
20	VDD	2.5V
21	Backlight	LED
22	Backlight color	White
23	LED lifetime	20000hours
24	Voltage for LED	9.9V
25	Current for LED	200mA
26	Consumption	/
27	Module weight	/
28	Drive IC	/
29	Interface connect type	connector type
30	Surface tratement	Anti glare
31	Pin number	40PINS
32	Warranty	12 months
33	Packing material	Box
34	Shipment	ExpressAirSea

Part 2:Operation Speficifactions
1	Operature Temperature	0----50℃ degrees
2	Storage Temperature	-20----60℃ degrees

Part 3:Touch panel
1	Touch	CTP (USB interface)

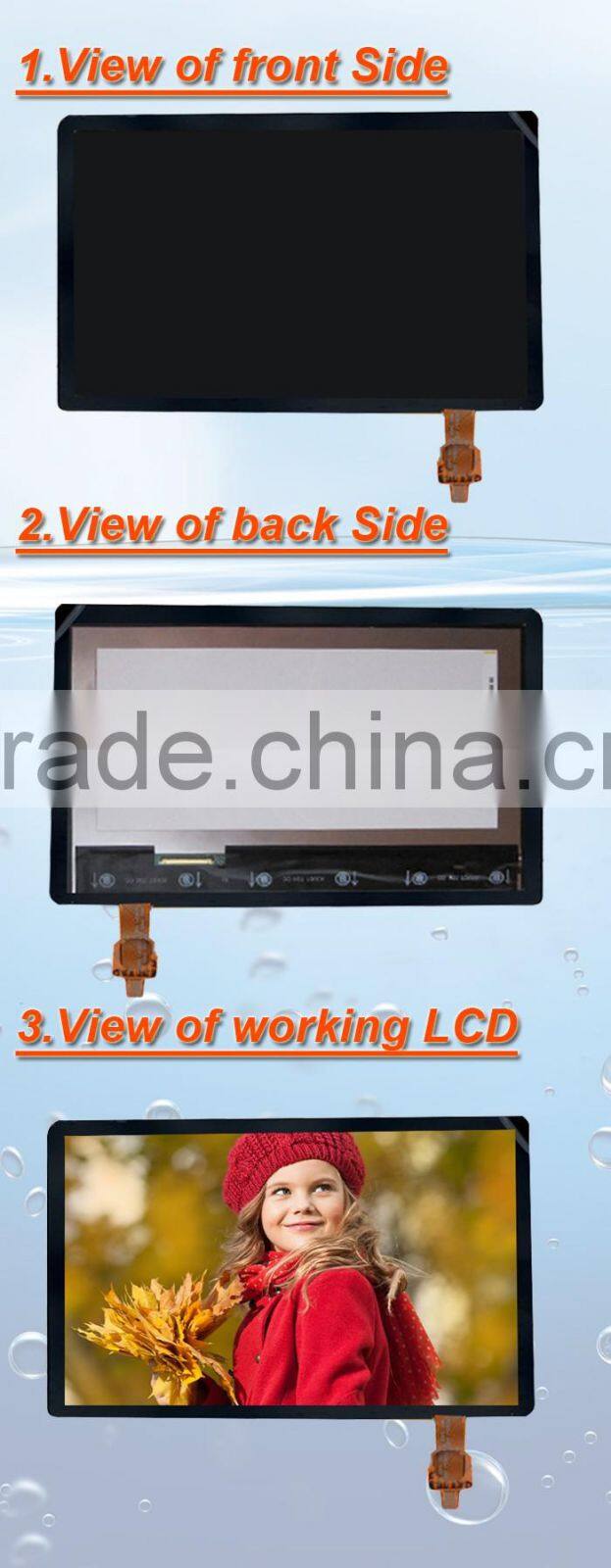

LCD PICS

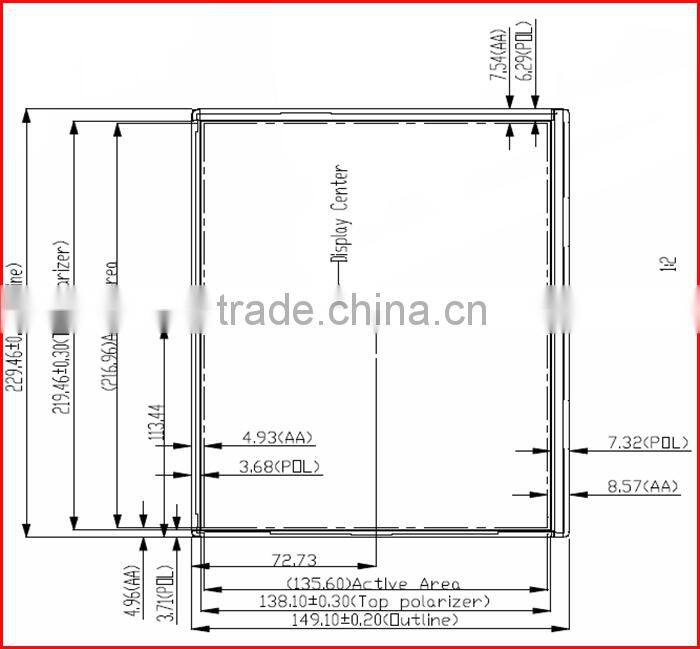

LCD structure

CTP structure
