0.69inch 96*16 Oled Display Panel With Board Mounted
US$ 0.00 - 5.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW069N-SV01-B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.69inch 96*16 Small Oled Display With Ssd1306US$ 0.00 - 5.00MOQ: 1 Piece -
0.66inch 64*48 SSD1306 Oled Light PanelNegotiableMOQ: 1 Piece
-
0.49inch 64*32 IPS OLED Panel Mounted Board With SSD1306 ControllerNegotiableMOQ: 1 Piece
-
0.49inch 64*32 SSD1306 Mini IPS OLED Screen Without BacklightNegotiableMOQ: 1 Piece
-
0.96inch SH1106G 128*64 Wide Viewing Angle OLED Display With MCU/SPI/IIC InterfaceNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW069N-SV01-B
Type
Other, OLED, OLED
0.69inch 96*16 small oled display with board mounted
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 0.69inch OLED |
| 2 | Model number | SW069N-SV01-B |
| 3 | Size | 0.69INCH |
| 4 | Type | OLED |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 6:1 |
| 7 | Display mode | / |
| 8 | Resolution | 96*16 |
| 9 | Piexel pitch | 0.18*0.20 |
| 10 | Dimension | 26.3*8.0*1.3MM |
| 11 | Active area | 17.26*3.18MM |
| 12 | Color | Blue/white |
| 13 | Color arragement | / |
| 14 | Interface | I2C |
| 17 | Response time | 10us |
| 18 | Contrast ratio | 2000:1 |
| 19 | Brightness | 100NITS |
| 20 | VDD | 3.3V |
| 21 | Backlight | / |
| 22 | Backlight color | / |
| 23 | LED lifetime | / |
| 24 | Voltage for LED | / |
| 25 | Current for LED | / |
| 26 | Consumption | / |
| 27 | Module weight | 1g |
| 28 | Drive IC | SSD1306 |
| 29 | Interface connect type | solering type |
| 30 | Surface tratement | / |
| 31 | Pin number | 14PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -40----70℃ degrees |
| 2 | Storage Temperature | -40----85℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | No touch |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.
LCD PICS

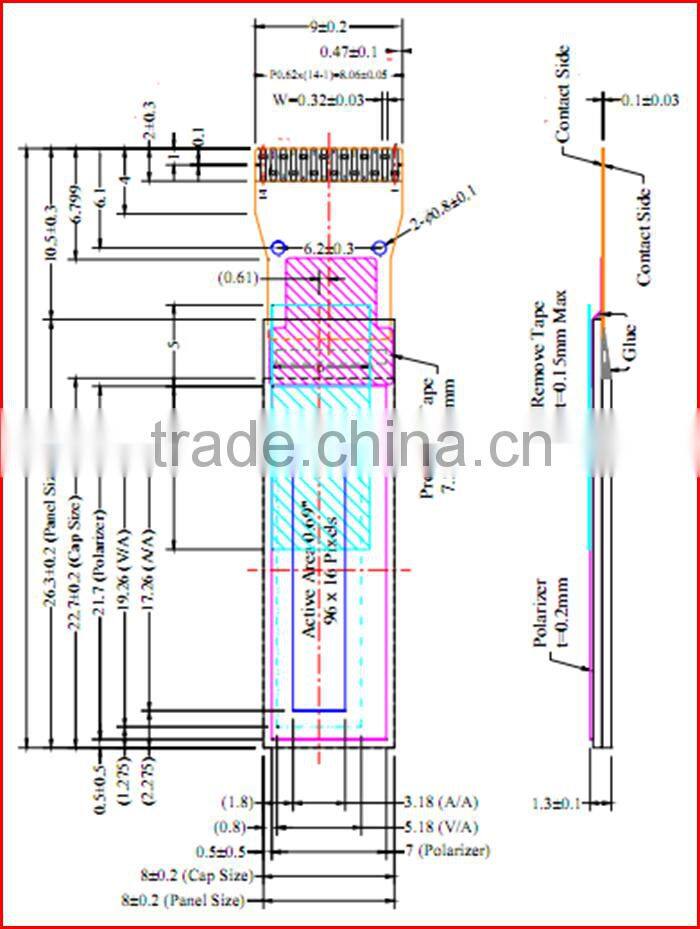

OLED structure

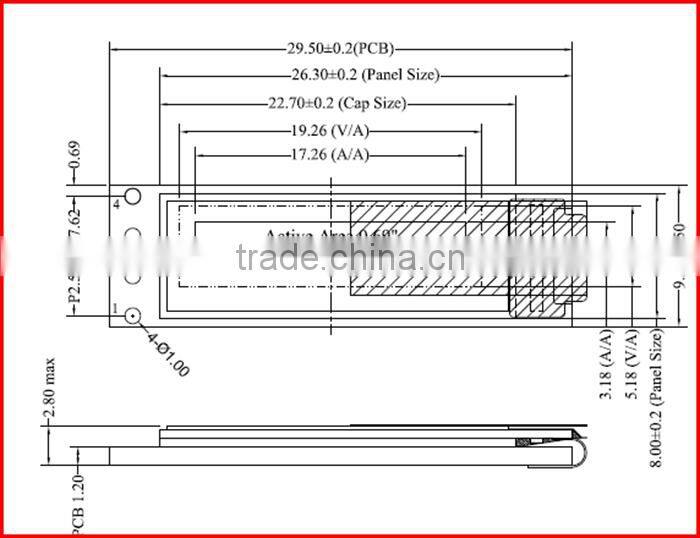

Board structure
