Home > Consumer Electronics > Display & Accessories > LCD Module > 8inch 1024*768 High Pixel Lvds IPS Module Screen With 350nits Brightness

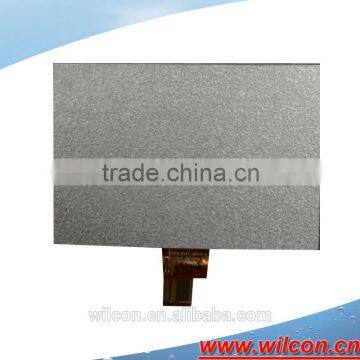

8inch 1024*768 High Pixel Lvds IPS Module Screen With 350nits Brightness
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW080IA-01F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8inch 700nits 1024*768 Outdoor IPS Module Lcd With Lvds InterfaceNegotiableMOQ: 1 Piece -
7inch 250nits 1024*600 Lvds Interface IPS Display PanelNegotiableMOQ: 1 Piece
-
3.5inch 320*480 HX8357D Full Viewing Angle IPS Lcd Touch Module With SPI/RGB InterfaceNegotiableMOQ: 1 Piece
-
3.5inch 480*640 HX8363-A High Resulation IPS Lcd Screen With RGB/MCU/SPI InterfaceNegotiableMOQ: 1 Piece
-
5.0inch All Viewing Angle 480*854 RGB Interface Vertical IPS Lcd PanelNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW080IA-01F
Type
Other, TFT, TFT
8.0inch TFT LCD module
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 8.0inch lcd module |
| 2 | Model number | SW080IA-01F |
| 3 | Size | 8.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 4:3 |
| 7 | Display mode | Normally black, Transmissive |
| 8 | Resolution | 1024*768 |
| 9 | Piexel pitch | 0.05275*0.15825 |
| 10 | Dimension | 174.3*135.5*2.45mm |
| 11 | Active area | 162.05*121.54 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 39ms |
| 18 | Contrast ratio | 800:1 |
| 19 | Brightness | 350cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9.3V |
| 25 | Current for LED | 180mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -10----50℃ degrees |
| 2 | Storage Temperature | -20----60℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

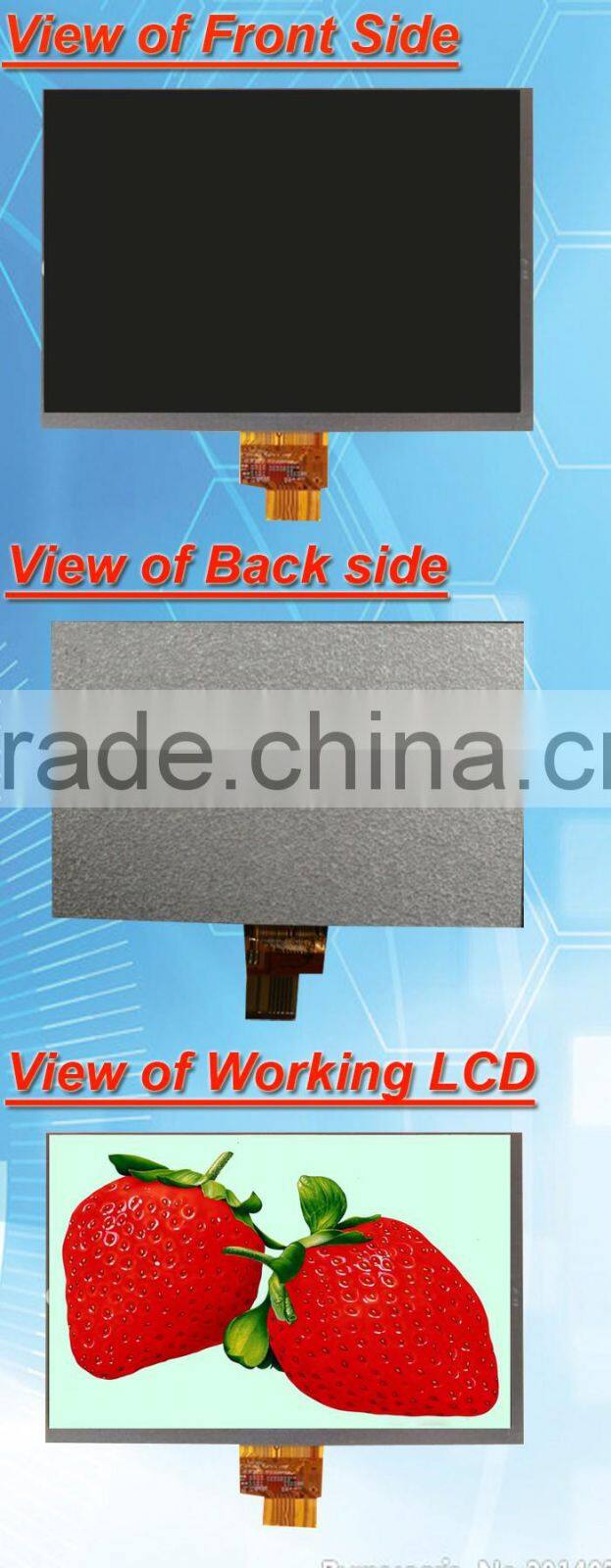

LCD PICS
LCD structure
