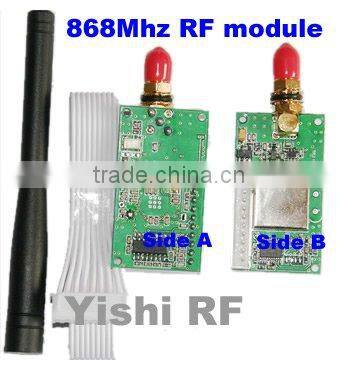

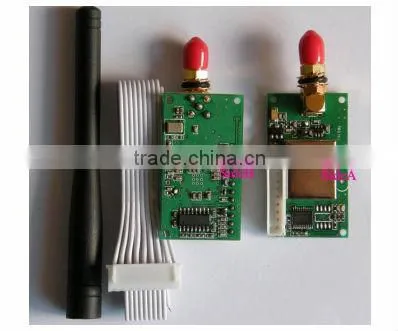

10mW 500m Wireless Data Transceiver Module, UHF 410-915Mhz RS232/RS485/TTL CC1020 RF Module
US$ 20 - 30
MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yishi
Model Number:
YS-C20UA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500mw rf Module Embedded Data Transceiver YS-C20LUS$ 30 - 40MOQ: 2 Units -
Rs232 Cable Wiring Replacement 5W Wireless Serial Data TransmitterUS$ 100 - 120MOQ: 2 Units
-
AV to VGA Video Converter Box, High Resolution: 1920 x 1200NegotiableMOQ: 1
-
433mhz Wireless Data Transmitter CC1101 RFmoduleNegotiableMOQ: 2 Units
-
25W RF Module for Data & Audio Wireless Transmission 20kmUS$ 230 - 250MOQ: 2 Units
Place of Origin
Guangdong, China
Brand Name
Yishi
Model Number
YS-C20UA
Specifications
RF module,wireless data module, data radio, remote control, usb transceiver, rf wireless, AMR POS Remote Traffic and Control.YS-C20U RF module For Serial data to wirelss
RF power: ≤10mW/ 10dBm
Receive Sensitivity: -115dBm(@9600bps)
Interface: RS-232/ RS-485/ TTL optional;
Power supply: DC 5V or 3.3V;
Receiving current: ≤25mA;
Transmitting current: <40mA;
Sleep current: <20uA;
Range: 500m (BER=10-3@9600bps,in open area);
Size: 47mm x 26mm x 10mm(without antenna
- RF modules designed for professional wireless data transmission systems in short range
- Module works on ISM frequency band, half duplex integrated receiving, and transmitting
- User's could use RS-232, RS-485 and UART/TTL level interface port for direct connection with PC, RS485 devices, monolithic processors, and other UART components kind of applications
- Transparent data interface, nakedness, and wide temperature design handles most industrial application tough indoor/outdoor environments
- RF power: ≤10dBm/10mW
- Frequency: 433, 450, 868 and 915MHz or ISM others
- Interface: RS-232, RS-485, and TTL (optional)
- Receiving current: ≤25mA
- Transmitting current: <40mA
- Sleep current: <20μA
- Range: 500m (BER: 10 to 3 at 9,600bps in open area)
- Power supply: 5 or 3.3V DC
- Size: 47 x 26 x 10mm (without antenna port)
