Specifications

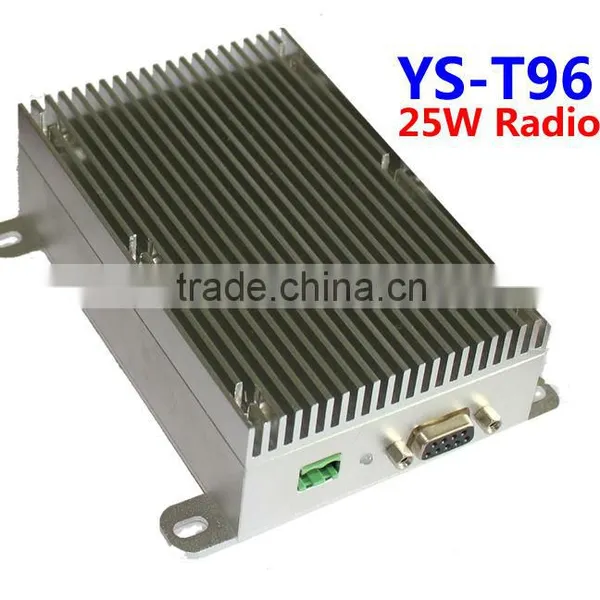

VHF and UHF brand, 25W data radio for Data and Audio wirleess transmissionYS-T96 Radio modem is a professional high performance data transmission radio combining with good DSP technology and wireless communication technology. This radio supports multiple frequency band, VHF and UHF.
With 25W power output, it has long transmission distance which reaches about more than 20km in open air.
I: Features:
1. High power output: 25W
2. Long transmission distance: More than 20km
3. VHF, UHF band selectable
4. Data transmission, voice transmission both ok
5. Double PLL, double VCO, High reliability
II. Data sheet
A,General Index
* frequency:VHF and UHF frequency band (150MHz, 230MHz ect.), can store about 400 channels
* frequency tolerance:±2.5ppm
* Channel spacing:25 KHz
* antenna impedance:50Ω
* environment temperature:-35 °C~+75 °C
* modulate mode:MSK
* air baud rate:1200bps/2400bps
B,Receiver Index
* sensitivity: ≤0.25uV
*Receiving current : 160mA
* ignal Noise Ratio(SNR): ≤-50dB
* Adjacent Channel Selectivity: ≥70dB
* Inter modulation interference: ≥70dB
* Spurious respouse immunity: ≥70dB
C,Transmitter Index
* Transmit Power: 25W
* modulate distortion: ≤3%
* residual frequency modulation: ≤-48dB
* frequency deviation: ≤5KHz
* ortho-channel power ratio: ≤-70dB
* stray power: ≤5uW
* RF distance: 20km(25W RF power in the open air)
D,Power supply
* DC: 1 2 V (±10%)
* waiting current: ≤ 1 6 0 m A
* transmitting current: ≤ 6 A ( transmit power 25W )
E,Dimension:
128*108*28mm
No MOQ, sample order is welcome! All products goes with one-year warranty!
