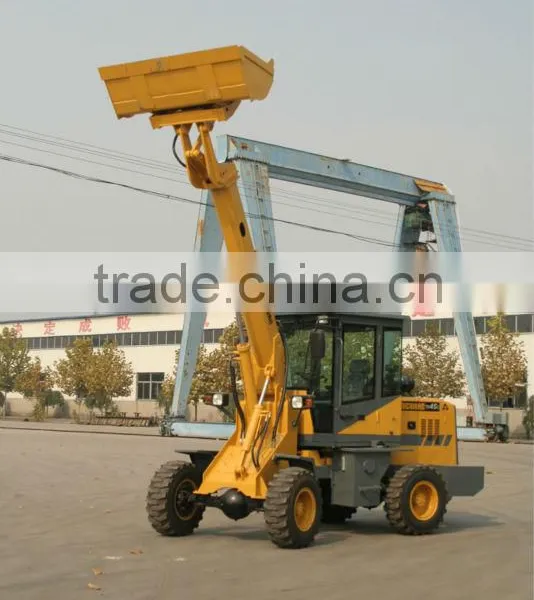

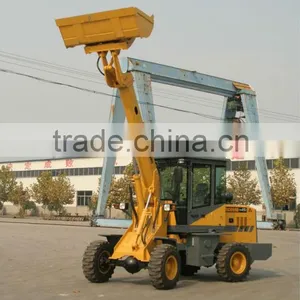

Help CenterZT928RT Telescopic Wheel Loader With 2ton Loading Capacity CUMMINS ENGINE
Related Products
-
2.0t Mini Wheel Loader T920 Small Front Wheel LoaderNegotiableMOQ: 1 Set -
2.0-2.6ton Wheel Loader N926 With Weichai Power HUAFENG/Yuchai/YTO Engine for Africa MarketsUS$ 9,800 - 22,800MOQ: 1 Unit
-
LG938L Same Wheel Loader With DEUTZ Engine ZF Technology Gearbox Popular for LibyaUS$ 29,800 - 42,800MOQ: 1 Unit
-
G956L 5.0Ton Wheel Loader With C6121/cummins Diesel Engine F2/R1 Gearbox for LibyaUS$ 29,800 - 42,800MOQ: 1 Unit
-
China CE910 1.0ton Loader With Yanmar E3 Engine Pilot Control,joystick,quick Coupling for EurozonesUS$ 6,000 - 12,800MOQ: 1 Unit
Specifications
WITH cummins diesel engine,joystick control,A/C,4 wheels driving,telescopic arm to 4500mm loading capacity,popular for eurozonesZT928RT TELESCOPIC LOADER
Price:23,800.00usd per unit FOB China port.
Cummins engine,joystick/pilot control,air conditioner,1.0cbmbucket,quick couping.......3rd function.
Packing:2 units into one 40HQ container.
Payment:T/T or L/C.
Description |
Specification |
rated load(ton) |
2 |
operating weight(kg) |
6000 |
Max.breakout force(kN) |
55 |
Max.dump height(MM) |
4250 |
Max.dump reach(MM) |
300 |
Discharging Angle(°) |
45 |
Max.grade ability |
30 |
Automatic leveling ability |
Yes |
Lifting time(s) |
≤4.7 |
Total cycle time(lifting, dumping, lowering)(s) |
≤10 |
steering angle(°) |
35 |
Min turning radius(MM) |
5885 |
Wheel base(MM) |
2350 |
Tread(MM) |
1500 |
Min.ground clearance(MM) |
300 |
Overall dimensions (l×w×h)mm |
5670×2060×2750 |
travel speed(km/h) |
|
Forward gear I |
0~6 |
II |
0~24 |
reverse gear I |
0~6 |
II |
0~24 |
Engine Model |
Cummins 4BT3.9-C100 |
Type |
In line, water cooled, four stroke, dir.inject |
Rated power(kW) |
60 |
Rated speed(rpm) |
2400 |
Maximum torque(N·m) |
305 |
Hydraulic torque converter/transmission model |
YJ280 /ZL15-I |
Transmission gear |
forward2reverse2 |
Drive axle |
20F |
Tire model |
16/70-20 |
Steering model |
BZZ5-320 |
Multi-way diverter valve model |
ZL20 |
operating oil pump |
CBG2063 |
The system pressure(MPa) |
17 |
The braking system |
Gas-liquid caliper disc brake |
The voltage(V) |
24 |
======================================================================
Optional Parts |
Fork |
+USD 700 |
Air-condition |
+USD 700 |
Shandong ZOT Machinery Co.,LTD. which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, Zhongte focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.
Advantage & Application
1.Chinese Cummins intercooled& turbocharged diesel engine;
2. Integral torque converter and gearbox(Germany ZF technology);
3. Driving axle with built-in free-wheel anti-slip differential;
4. Heavy-duty roller chains transmission balance box;
5.Popular swing-arm connecting rod operating mechanism;
6. Free-maintenance rolling-disc rotary device;
7. Double cylinders control the balde cutting angle;
8.Two sets of imported control valve (HUSCO Brand);
9. Imported hydraulic balancing valve for the blade lifting;
10. Steering system:center articulated mechanism and tilting front wheels to achieve crab-style movement;
11. Electro-hydraulic control: instrumentation monitoring & maintenance-free OPTIMA battery;
Our Services
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty single drum vibratory road roller in China.
7.Warranty period is 1-year or 1500 working hours against Bill of Lading.
Company and Products Information Related
ZOT.is the professional manufacturer, who carries an extensive range of new heavy duty equipments and agricultural machinery, such as road rollers, motor graders, crawler excavators, bulldozers, wheel loaders, forklifts, and wheel tractors with years of experience, strong R&D and engineering capabilities.
