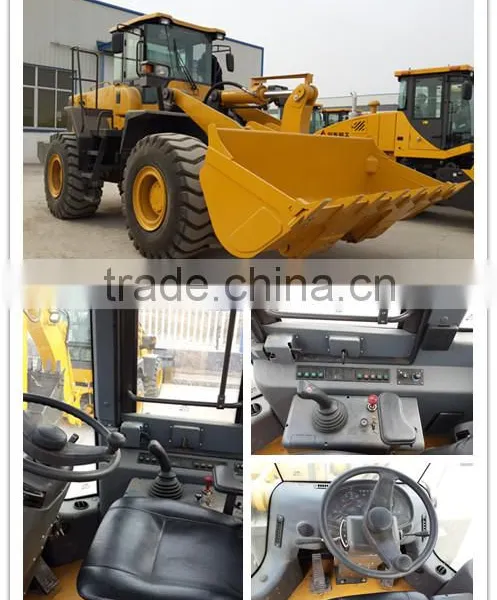

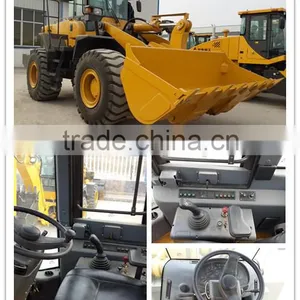

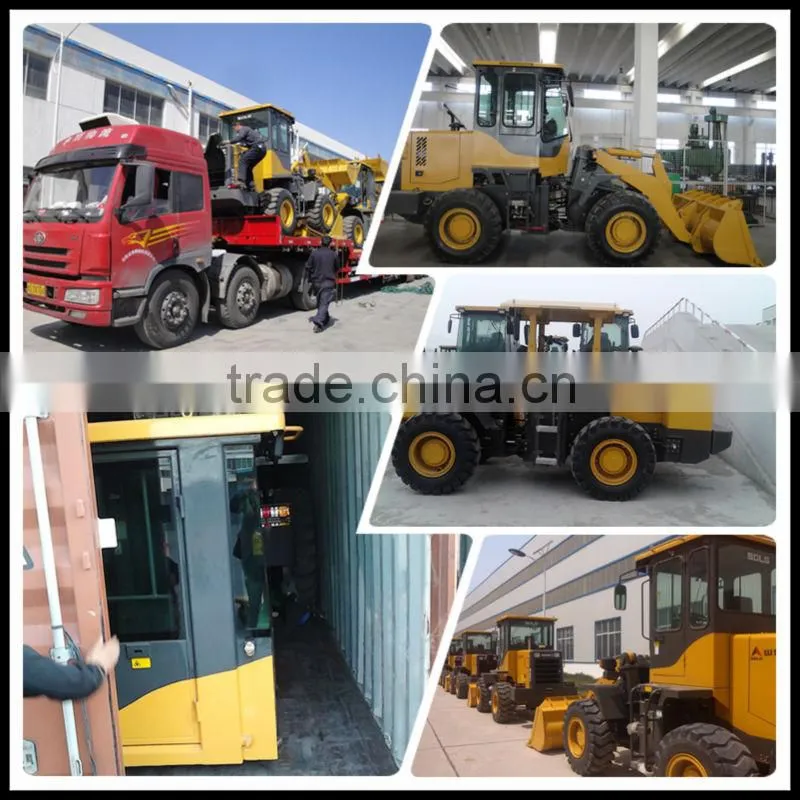

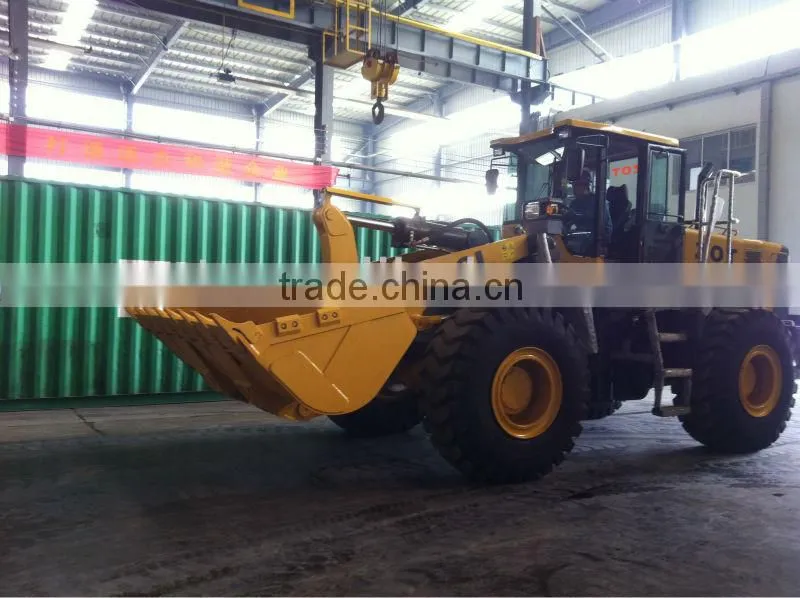

G956L 5.0Ton Wheel Loader With C6121/cummins Diesel Engine F2/R1 Gearbox for Libya

Name: G956L 5.0Ton Wheel Loader With C6121/cummins Diesel Engine F2/R1 Gearbox for Libya
Brand: SDLG
SKU: 112486957
Availability: InStock

G956L 5.0Ton Wheel Loader With C6121/cummins Diesel Engine F2/R1 Gearbox for Libya thumbnail-1

G956L 5.0Ton Wheel Loader With C6121/cummins Diesel Engine F2/R1 Gearbox for Libya photo-1

US$ 29,800 - 42,800 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

SDLG

Model Number:

LG956L

Contact Supplier Request Quote Chat Now

Shandong Zot Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name SDLG

Model Number LG956L

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8020x3020x3350

Rated Load 5TON

Certification GOST,CE,ISO

Warranty 18MONTHES

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.equipped with Shanghai C.AT C6121 diesel engine,
2.Pilot control,A/C,
3.pipular for Libya,Brazil and Russia markets

G956L WHEEL LOADER

EQUIPPED WITH

CHINA WEICHAI POWER WD615/C.AT DIESEL ENGINE,

SDLG TRANSMISSION,SDLG AXLES,3.0CBM BUCKET,CABIN WITH WARMER MACHINE.

PRICE:46,800USD-52800 PER UNIT FOB CHINA PORT.

MOQ 1 UNIT.

ONE UNIT PUT INTO ONE 40HQ CONTAINER.

WARRANTY:12MONTHES

PAYMENT:T/T.or L/C

DELIVERY TIME:20WORKING DAYS AFTER GETTING DEPOSITS.

Note :

The pictures displayed by our company are photographed with our real goods.

Besides, influenced by the factors from the environment and the equipments, color differences are unavoidable on display

SHANONG ZOT MACHINERY CO.,LTD

Reliable In Actions.

1,Technical features

Item		Performance		Item			Performance
Standard bucket capacity (m³)		3.0		Min. turning radius outside rear wheel (mm)			6178
Rated load (kg)		5000		Min. turning radius outside bucket (mm)			6888
Max. traction force(by engine)(kN)		≥150.0		Max. break force(kN)			≥160.0
Static tipping load (kN)		≥100		Grade ability (°)			28
Travel speed	Speeds		1		2
	Forward (km/h)		0~13.5		0~38	——		——
	Reverse (km/h)		0~17		——	——		——

2,Dimension and weight

Item	Performance	Item	Performance
Length(with bucket on ground) (mm)	7717	Bucket Width (mm)	3030
Height (mm)	3378	Tread (mm)	2190
Width from outside wheel (mm)	2785	Wheelbase (front/back)(mm)	2920(990/1930)
Min. ground clearance (mm)	534	Operating weight (kg)	16500
Max Dumping height(-50ºdump angle) (mm)	3050	Axles	2
Dumping distance(-50⁰dump angle)(mm)	1148

3,Engine

Item	Performance	Item	Performance
Model	WD615 67G3-36/CAT 3306B CUMMINS 6CT8.3	Cylinder No.	6
Type	Straight-lined, water cooled, dry cylinder coat, direct injection	Cylinder bore/stroke(mm)	126/130
Rated power (/kW)	162	Min fuel consumption ration (g/kW.h)	≤215
Rated rpm(r/min)	2200	Max torque (N.m)	843
Displacement(ml)	9.726	Emission standard	JB/T8891

4,Transmission

Item				Performance
Torque converter	Type			Single phase, 4 element, double turbo hydraulic converter
	Torque ratio			4.19
	Cooling system			Circulated, watercooled
	Inlet oil pressure(MPa)			0.549~0.6
	Outlet oil pressure(MPa)			0.275~0.343
Gearbox	Type			Planetary power shift
	Shift			Forward 2,Reverse 1
	Gear ratio	Forward I		2.155
		Forward II		0.578
		Forward III		——
		Forward I V		——
		Reverse I		1.577
		Reverse II		——
	Model			CB130
	Working pressure (MPa)			1.1~1.5
Main drive	Type			Single stage, spur gear
	Gear ratio			5.286
Final reducer	Type			Single stage,planetary shift
	Gear ratio			4.4
Driving axle and tire	Type			Driving axle and tire
	Tire specification			23.5-25
	Tire pressure(MPa)		Front wheel	0.333~0.353
			Rear wheel	0.275~0.294
Brake system	Service brake			Air over hydraulic disc brake on 4 wheels
	Pressure (MPa)			0.45~0.68
	Parking brake			Air-room braking

5,Steering system

Item	Performance
Type	Core-closed, full-hydraulic redirector and flow increasing valve
Pilot-acinated valve	YXL-F250F
Pump	CBGjA2080G
Steering cylinder: cylinder bore×piston rod diameter×stroke (mm)	90×45×360
Redirector	BZZ-100 Core-closed, full-hydraulic redirector
Steering angle (°)	35°
Working pressure(Mpa)	14MPa

6,Working system

Item	Performance
Type	Mechanical and manual control
Boom cylinder - cylinder bore×piston rod diameter×stroke (mm)	160×90×812.5
Bucket cylinder- cylinder bore×piston rod diameter×stroke (mm)	180×90×542
Pump	CBGj3166
Multiple directional control valve type	SD32-18,manual,pressure:18MPa
Priority valve model	——
Working pressure	18 MPa
Lifting time(fully loaded)	≤5.7s
Lowering time, (empty,)	≤3.5s
Dumping time (empty,)	≤1s
Total	≤10.2s

7,Service refill capacities

Item	Performance	Item	Performance
Fuel	270L	Engine	20L
Hydraulic oil	270L	Gearbox	45L
Axle (main drive and final reducer)	27L	Brake system	4L

SHIPPING DETAILS:

Company Information

Shandong ZOT Machinery Co.,LTD. which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, Zhongte focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.

The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.

We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.

FAQ

Advantage & Application

1.Chinese Cummins intercooled& turbocharged diesel engine;

2. Integral torque converter and gearbox(Germany ZF technology);

3. Driving axle with built-in free-wheel anti-slip differential;

4. Heavy-duty roller chains transmission balance box;

5.Popular swing-arm connecting rod operating mechanism;

6. Free-maintenance rolling-disc rotary device;

7. Double cylinders control the balde cutting angle;

8.Two sets of imported control valve (HUSCO Brand);

9. Imported hydraulic balancing valve for the blade lifting;

10. Steering system:center articulated mechanism and tilting front wheels to achieve crab-style movement;

11. Electro-hydraulic control: instrumentation monitoring & maintenance-free OPTIMA battery;

Our Services
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty single drum vibratory road roller in China.
7.Warranty period is 1-year or 1500 working hours against Bill of Lading.
