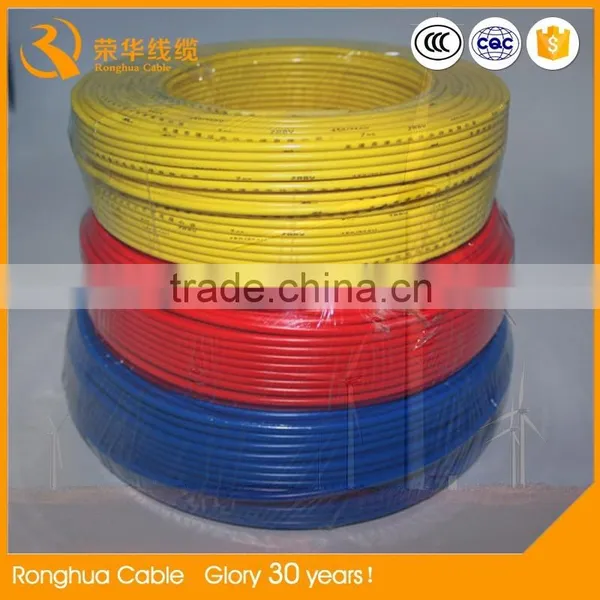

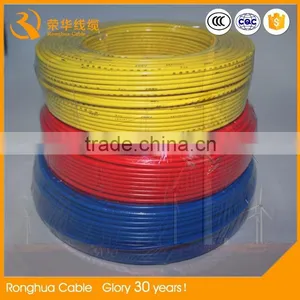

Help CenterSingle Core Copper Conductor BV BVVB BVR Electric Wire and Cable 16mm Quality Choice
Related Products
-
PVC Insulation House Cable BV Copper Wire PricesUS$ 0.01 - 1MOQ: 100 Meters -
4mm PVC Insulated Copper Wire bv Cable 4mmUS$ 0.01 - 1MOQ: 100 Meters
-
BV Power Cable / Electric WireUS$ 0.01 - 1MOQ: 100 Meters
-
Low Voltage Red Yellow Blue Green White Indoor Usage Copper Conductor Pvc Insulated BV BVVB BVR Electrical Power CableUS$ 0.01 - 1MOQ: 100 Meters
-
11KV 70mm2 XLPE Insulated Single Core Powe Cable YJLSVUS$ 0.01 - 100MOQ: 500 Meters
1.Range of Application
Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.Service Conditions
Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.
3.Model and Name:see table1
Model | Name |
RV | Copper Core PVC Insulation Flexible Wire |
RVB | Copper Core PVC Insulation Flat Flexible Wire |
RVS | Copper Core PVC Insulation Twisted Flexible Wire |
RVV | Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB | Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-90 | Copper Core Heat-resistak Losc PVC Flexible Wire |
4.Specification Size and Technical Data:see table 2
Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
0.3 | 16/0.15 | 2.3 | 6.4 |
0.4 | 23/0.15 | 2.5 | 8.1 |
0.5 | 16/0.2 | 2.6 | 9.1 |
0.75 | 24/0.2 | 2.8 | 12.2 |
1.0 | 32/0.2 | 3.0 | 15.1 |
RV 450/750V
Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
1.5 | 30/0.25 | 3.5 | 21.4 |
2.5 | 49/0.25 | 4.2 | 24.5 |
4 | 56/0.20 | 4.8 | 51.8 |
6 | 84/0.30 | 6.4 | 74.1 |
10 | 84/0.30 | 8.0 | 12.4 |
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
If you have any questions of PVC insulated copper conductor flexible electrical wire , please kindly contact us freely! We will reply you within 12 hours!
