PVC Insulation House Cable BV Copper Wire Prices
- 500 Kilometer / Kilometers per Month
- Xingang
- T/T Credit Card PayPal
You May Like
-
4mm PVC insulated copper wire bv cable 4mm
-
BV power cable / electric wire
-
low voltage red yellow blue green white indoor usage copper conductor pvc insulated BV BVVB BVR electrical power cable
-
11KV 70mm2 XLPE Insulated Single core Powe Cable YJLSV
-
3x50mm2 XLPE Submarine 8.7/15KV Medium Voltage Power Cable
-
XLPE Insulated Armoured Lead Sheath Power and Signal Cable
Product Details
| Place of Origin | Hebei, China | Brand Name | Ronghua | |
| Model Number | BV/BVR/BVV | Type | Insulated | |
| Application | Other, construction, in-door,lighting | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description

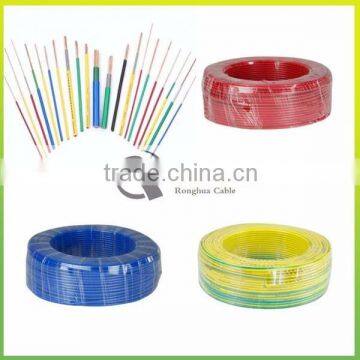

PVC insulated copper conductor flexible electrical wire
Hebei Ronghua Wire And Cable Co,.LTD-- PVC insulated copper conductor flexible electrical wire
The Details of PVC insulated copper conductor flexible electrical wire
1. Rate Voltage: 300/500V, 450/750V
2. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement
3. Insulation: PVC
4. Conductor: Class 1/2 Plain annealed copper wires,solid or stranded
5.Cross Section Areas: 0.75mm2~185mm2
6. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
7. Packing: 100m per roll, or as your request.
The Application of PVC insulated copper conductor flexible electrical wire
Single Core PVC insulation Copper Conductor house wiring electical wire cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Technical Data of PVC insulated copper conductor flexible electrical wire
Nominal section (mm2) | Number/diameter of core (mm) | Maximum outer diameter (mm2) | Reference weight (Kg/km) | Conductor resistance at 20°C ≤(Ω/km) | ||
copper | aluminum | aluminum | copper | |||
1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
electrical cable wire Pakage:
100 meters per roll, then PE film, then carton or woven bag. or as customers' request.
Our Advantage:
- More than 30 years experience.
- OEM & ODM service is acceptable.
- Good quality with factory price
- Can print words on the wire
Hebei Ronghua Wire Cable Co,.Ltd is a special manufacture of wire and cables with more than 30 years experience. We are Factory Manufacturing wire and cables, Competitive price, Excellent Quality, Shortly Delivery Time, Kindly Service.
Certifications: (Electrical Wire Prices)
Other related wire and cables:
If you have any questions of PVC insulated copper conductor flexible electrical wire , please kindly contact us freely! We will reply you within 12 hours!
Contact Person: Helen Han
Contact Email: admin@
Contact QQ: 499937074
Contact Whatsapp: 0086-13383038093
