VDE0282 strandard super flexible HOFR rubber sheath 35mm copper cable Ronghua Cable

Application:

35mm copper cable  for the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.

Standards: BS638 Part 4, VDE0282-6, CENELEC HD22.6

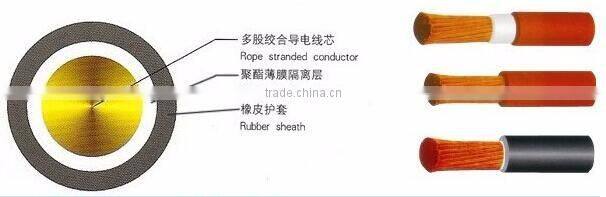

Conductor: Class 5 flexible plain copper conductors

Separator: Polyester foil or tape

Sheath: HOFR (Heat and Oil Resistant and Flame Retardant)

Colour: Black

Voltage Rating: 100V (450V for non-welding applications if suitably protected from mechanical damage)

Temperature range for operation: -40 ℃ up to +95℃ fixed

                                                         -30 ℃ up to +70 ℃ in motion

Minimum bending radius: 6 x overall diameter
