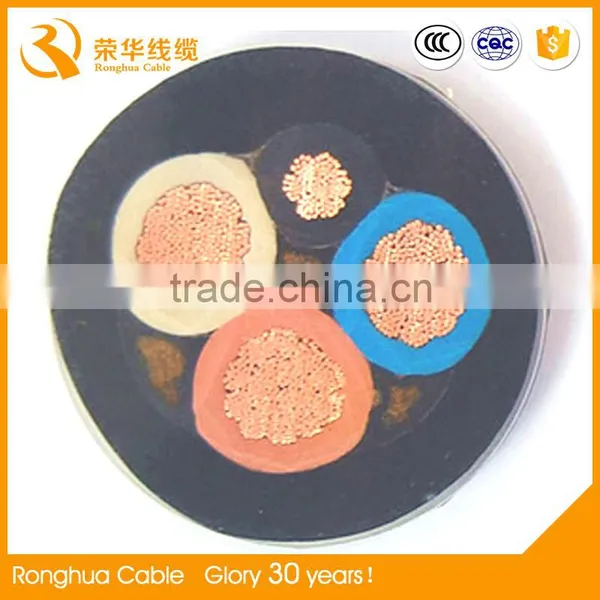

China factory of low voltage rubber insulated waterproof rubber cable
Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses.
Applications include handling equipment, mobile power supplies, work sites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Standards
BS7919, CENELEC HD22.4 S4
Technical Data
Conductor
Class 5 flexible plain copper
to BS EN 60228:2005 (previously BS6360)
Insulation
EPR (Ethylene Propylene Rubber) Type EI4 to BS7655
Sheath
PCP (Polychloroprene) Type EM2 to BS7655
Sheath Colour Black
Voltage Rating 450/750V
Temperature Rating
Conductor operating temperature
-30°C to +60°C (85°C max)
Minimum Bending Radius
Up to 25mm2: 6 x overall diameter
Above 25mm2: 8 x overall diameter
Core Identification
1 Core: Black
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow
Number of cores x size of conductor sqmm
1x1.5 |
2 X 1.0 |
3 X 1.0 |
4 X 1.0 |
5 X 1.0 |
7 X 1.5 |
1x 2.5 |
2 X 1.5 |
3 X 1.5 |
4 X 1.5 |
5 X 1.5 |
7 X 2.5 |
1x4 |
2 X 2.5 |
3 X 2.5 |
4 X 2.5 |
5 X 2.5 |
12 X 1.5 |
1x6 |
2 X 4.0 |
3 X 4.0 |
4 X 4.0 |
5 X 4.0 |
12 X 2.5 |
1x10 |
2 X 6.0 |
3 X 6.0 |
4 X 6.0 |
5 X 6.0 |
19 X 1.5 |
1x16 |
2 X 10.0 |
3 X 10.0 |
4 X 10.0 |
5 X 10.0 |
19 X 2.5 |
1x25 |
2 X 16.0 |
3 X 16.0 |
4 X 16.0 |
5 X 16.0 |
24 X 1.5 |
1x35 |
2 X 25.0 |
3 X 25.0 |
4 X 25.0 |
5 X 25.0 |
24 X 2.5 |
1x50 |
2 X 35.0 |
|
4 X 35.0 |
5 X 35.0 |
27 X 1.5 |
1x70 |
|
|
4 X 50.0 |
|
27 X 2.5 |
1x95 |
|
|
4 X 70.0 |
|
37 X 1.5 |
1x120 |
|
|
4 X 95.0 |
|
37 X 2.5 |
1x150 |
|
|
|
|
|
1x185 |
|
|
|
|
|
1x240 |
|
|
|
|
|
1x300 |
|
|
|
|
|
1x400 |
|
|
|
|
|
1x500 |
|
|
|
|
|
1x630 |
|
|
|
|
|
cable wire HO7RN-F cable HO7RN-F HO7RN-F cable wire HO7RN-F cable HO7RN-F HO7RN-F cable wire HO7RN-F cable HO7RN-F HO7RN-F cable wire HO7RN-F cable HO7RN-F HO7RN-F cable wire HO7RN-F cable HO7RN-F HO7RN-F cable wire HO7RN-F cable HO7RN-F HO7RN-F
What's the Technical Parameters of general rubber flex cable?
Model |
Name |
Rated Voltage(V) |
Section Area(mm2) |
No. of Cores |
Usage |
YQ,YQW |
Light model rubber sheath flexible cable |
300/300 |
0.30.5 |
2,3 |
Used for light portable electric equipment and tools |
|
IEC60245-53(YZ) YZ |
Middle model rubber sheath flexible cable |
300/500 |
0.75--6 |
2,3,4,5 |
Used for various portable electric equipment and tools |
|
IEC60245-57(YZW) YZW | |||||
YC |
Heavy model rubber sheath flexible cable |
450/750 |
1.5--400 |
1 |
Used for various portable electric equipment which can bear large mechanical force effect |
1.5--95 |
2 |
||||
1.5--150 |
3 |
||||
|
IEC60245-66 YCW |
1.5--150 |
4 |
|||
2.515 |
3+1 |
||||
+ | |||||
1.5--50 | |||||
1.5--25 |
5 |
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
Certifications:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Contact Person: Amy
Email: amy(at)
Whatsapp: 0086-15831928466 ( wechat is workable).
QQ : 1700173666
Welcome your inquiry of flexible rubber cable !
