Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Pvc/xlpe Insulation Power Cable

Pvc/xlpe Insulation Power Cable

Name: Pvc/xlpe Insulation Power Cable
Brand: Ronghua
SKU: 112450203
Availability: InStock

Pvc/xlpe Insulation Power Cable thumbnail-1

Pvc/xlpe Insulation Power Cable thumbnail-2

Pvc/xlpe Insulation Power Cable thumbnail-3

Pvc/xlpe Insulation Power Cable thumbnail-4

Pvc/xlpe Insulation Power Cable thumbnail-5

Pvc/xlpe Insulation Power Cable thumbnail-6

US$ 1 - 20 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Ronghua

Model Number:

YJV

Contact Supplier Request Quote Chat Now

Hebei Ronghua Wire And Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Ronghua

Model Number YJV

Insulation Material XLPE

Type Medium Voltage

Application Underground

Conductor Material Aluminum

Jacket PE

pvc/xlpe insulation power cable

Application:

These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors an outdoors, in cable ducts, under ground , in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standards :

ASTM IEC BS DIN NFC ISO9001-2008

Nominal area(mm2):

1.5mm2 2.5mm2 4mm2 6mm2 10m2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240mm2 300mm2 400mm2 500mm2 630mm2

Number of cores:

1, 2, 3, 3+1, 3+2, 4, 4+1, 5 and so on.

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

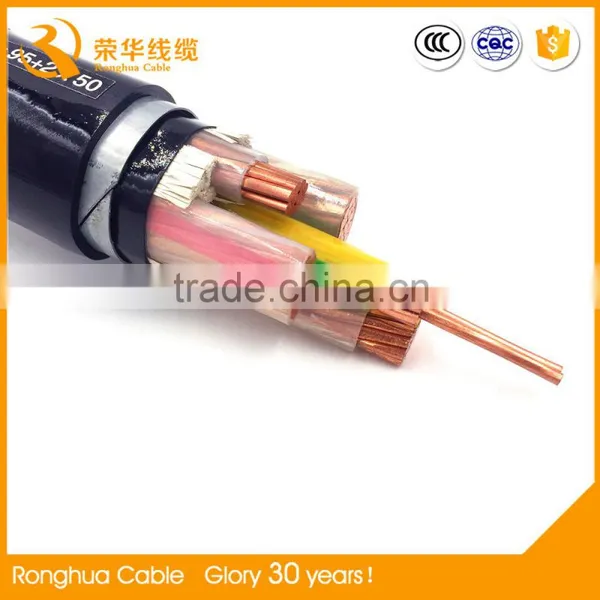

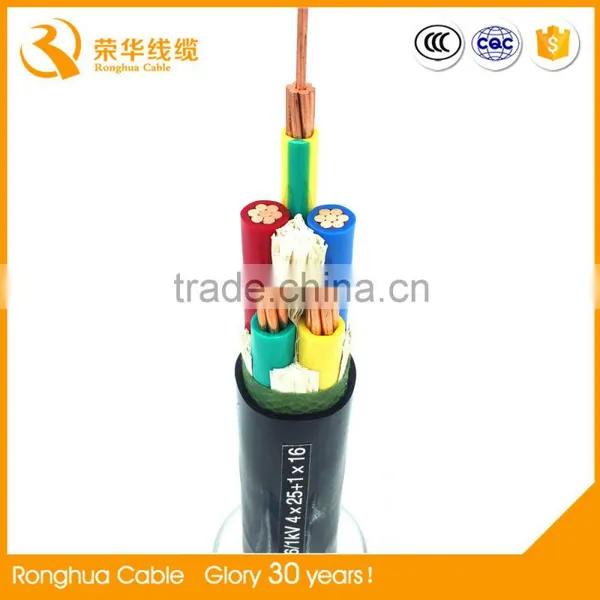

low voltage cable power cable

Low voltage (0.6/1 kv)

single core or multi-core

copper or aluminium conductor

pvc inusulation

steel tape armored or galvanized steel wire armored or unarmored

pvc outer sheath

power cable.

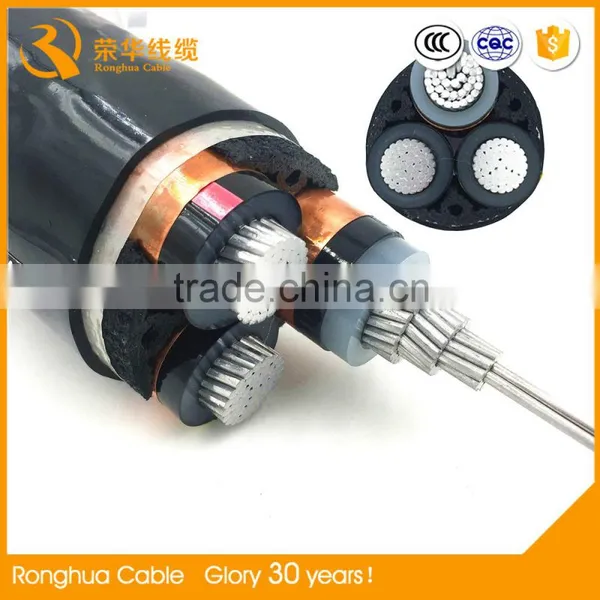

medium voltage electric power cable

Voltage grade is up to 35kv,

cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).

Conductor long-time operating temperature is 90 degrees.

In short circuit, conductor highest temperature should be not more than 250 degrees.

1kv-35 kv

multi-cores

copper or aluminium conductor

xlpe insulation

copper tape or copper wire screen

galvanized steel wire armored

pvc or pe sheath

power cable

high voltage electric power cable

High voltage (35kv~220kv)

copper or aluminium conductor

xlpe insulation

metal sheath (lead or corrugated aluminium)

hdpe or pvc outer sheath power cable.

Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.

PVC insulated power cable

PVC insulated and sheath power cable

1) The long-term working tempeture of cable should be not higher than 70 degree.

2) When core is in short-circuit (Max. 5s), the tempeture should not exceed 160 degree.

3) While installation the ambient tempeture should not be lower than o degree, and bending radius should not be less than 10 times of outer diameter.

XLPE insulated power cable

XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.

XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of A B C
