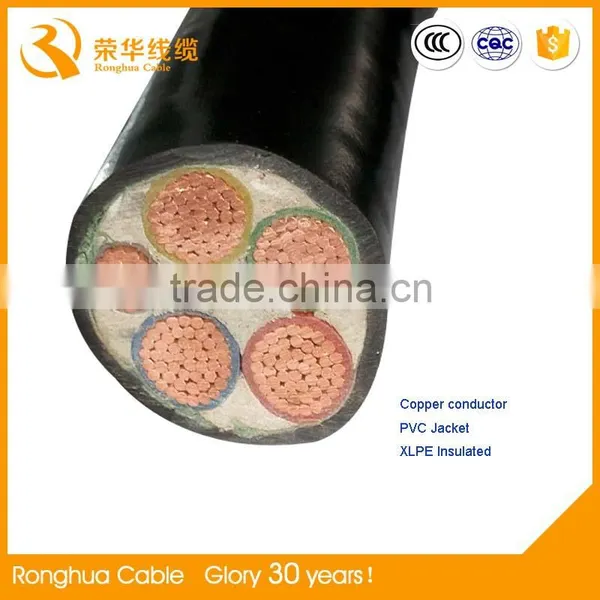

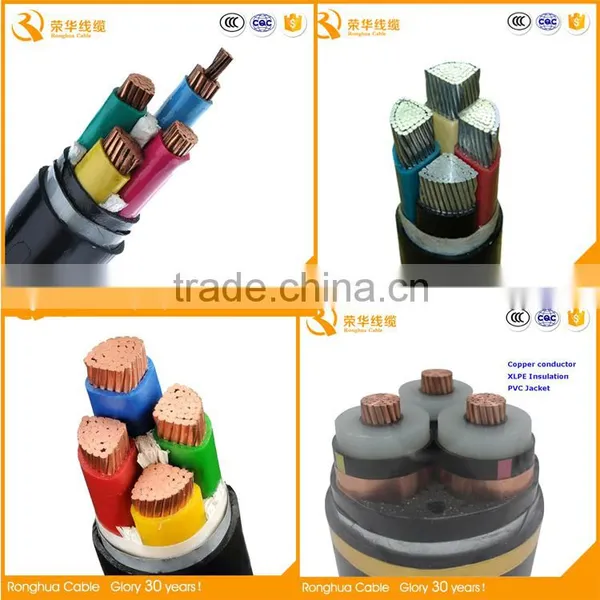

300 sq mm power cables
Specifications
pvc shealth power cable:
1. CE,ISO,SGS..Certificate
2. IEC Standard
3. Exported to Many Countries
0.6/1 KV PVC insulated power cable is used for electric power transmission and distribution lines
0.6/1 KV PVC insulated power cable
1) Standard :IEC60502,GB/T 12706
2).Voltage :0.6/1KV
3).Specification:
300 sq mm power cables
Type |
Designation |
Application |
VV |
Copper conductor ,PVC insulated ,PVC sheathed power cable |
For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
VLV |
Aluminium conductor ,PVC insulated ,PVC sheathed power cable |
|
VY |
Copper conductor, PVC insulated, PE sheathed power cable |
|
VLY |
Aluminium conductor ,PVC insulated ,PE sheathed power cable |
|
VV22 |
Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
VLV22 |
Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV23 |
Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable |
|
VLV23 |
Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
|
VV32 |
Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable
|
For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
VLV32 |
Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV33 |
Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
|
VLV33 |
Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |
|
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied | ||
300 sq mm power cables
4).nominal cross-sectional areas:1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
5)production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
6).operating characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
Certifications:
Related Products:
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Welcome your inquiry. We will reply you within 12 hours!
Contact Person: Amy
Email: amy@
Skype: you580231
Whatsapp: 86-15831928466 ( wechat is avaliable)
