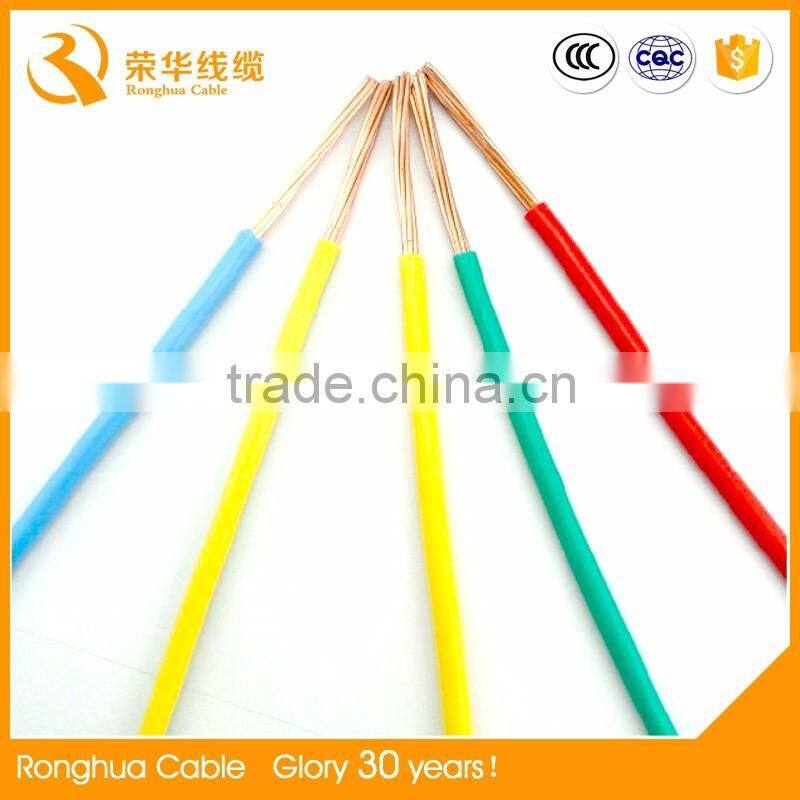

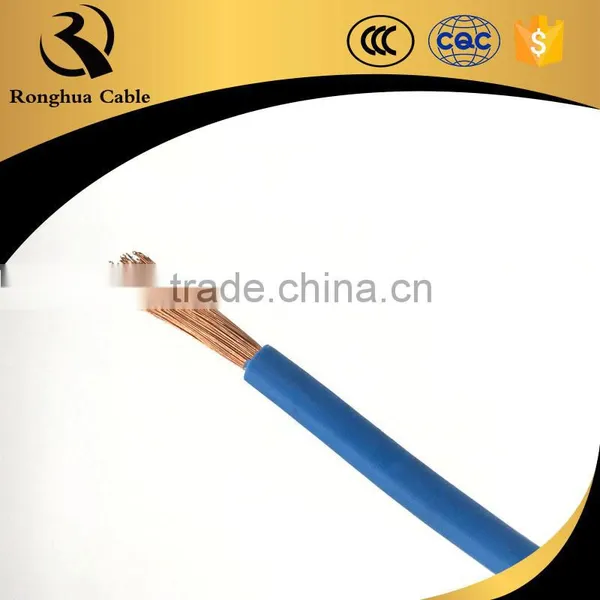

Single-core non-sheathed cable
Low Voltage Single-core non-sheathed cable
ENERGY CABLES
Building & Construction
Building Wire
Single Core, Copper
Application:
|
For separate earth conductors. For switchboard and control panel wiring. For fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools. |
STANDARD |
AS/NZS 5000.1 |
VOLTAGE |
600/1000V |
|
CONDUCTOR |
Copper 1 - 240mm2 |
|
INSULATION |

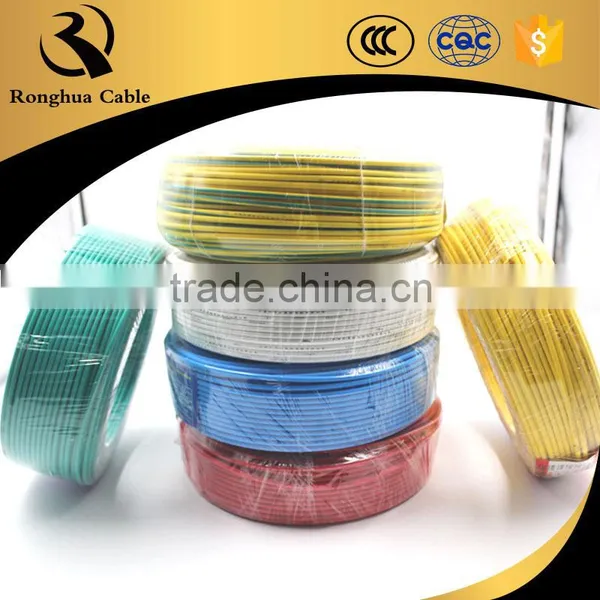

PVC, V-90 See below for colour options |
|
|
MAX. OPERATING TEMP.
|
90°C |
Technical Specification:
|
MINIMUM INSULATION THICKNESS /mm |
|
|
Nominal Area mm2 |
NOMINAL DIAMETER mm |
|
1 |
1.1 |
0.8 |
1.5 |
1.5 |
0.8 |
2.5 |
2.0 |
0.8 |
4 |
2.5 |
1.0 |
6 |
3.1 |
1.0 |
10 |
3.9 |
1.0 |
16 |
4.9 |
1.0 |
25 |
6.4 |
1.2 |
35 |
7.7 |
1.2 |
50 |
8.9 |
1.4 |
70 |
10.8 |
1.4 |
95 |
12.5 |
1.6 |
120 |
12.9 |
1.6 |
150 |
14.3 |
1.8 |
185 |
16.0 |
2.0 |
240 |
18.4 |
2.2 |

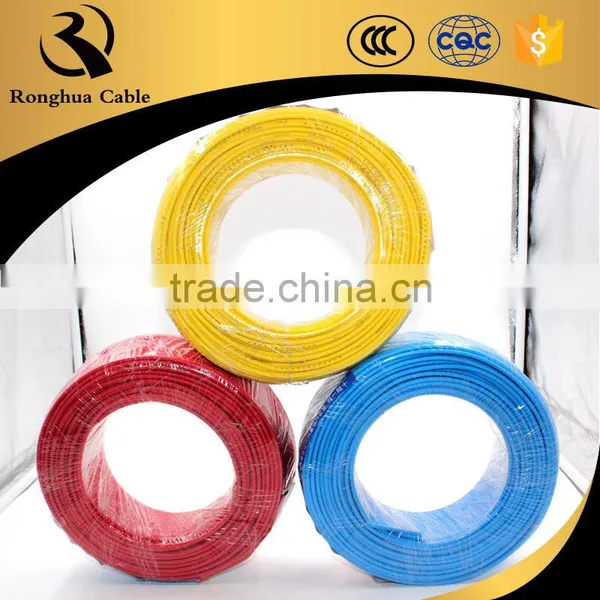

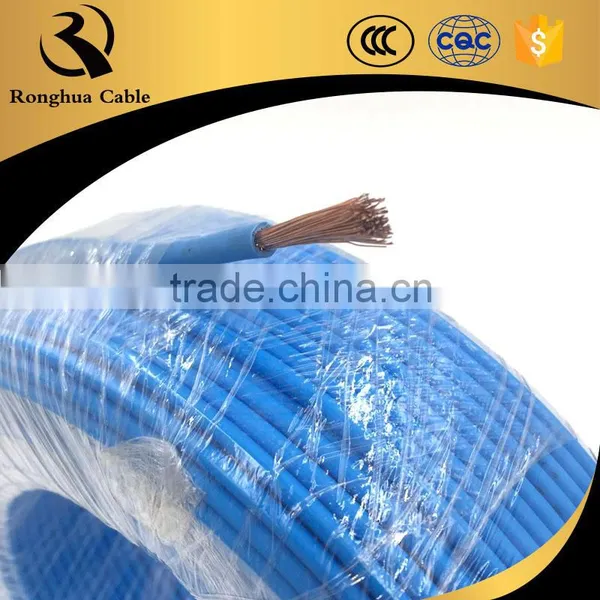

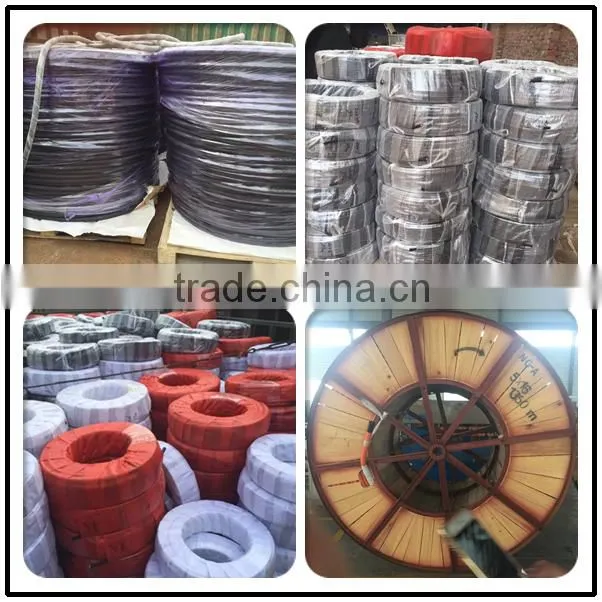

electrical cable wire 10mm Pakage:
100 meters per roll, then PE film, then carton or woven bag. or as customers' request.
Our Advantage:
- More than 30 years experience.
- OEM & ODM service is acceptable.
- Good quality with factory price
- Can print your logo on the wires
- Delivery in time
Hebei Ronghua Wire Cable Co,.Ltd is a special manufacture of wire and cables with more than 30 years experience. We are Factory Manufacturing wire and cables, Competitive price, Excellent Quality, Shortly Delivery Time, Kindly Service.
Certifications: (single core noe sheathed cable)
If you have any questions of single core non-sheathed cable , please kindly contact us freely! We will reply you within 12 hours!
Contact Person: Amy
Contact Email: amy(at)
Contact QQ: 1700173666
Contact Whatsapp: 0086-15831928466
