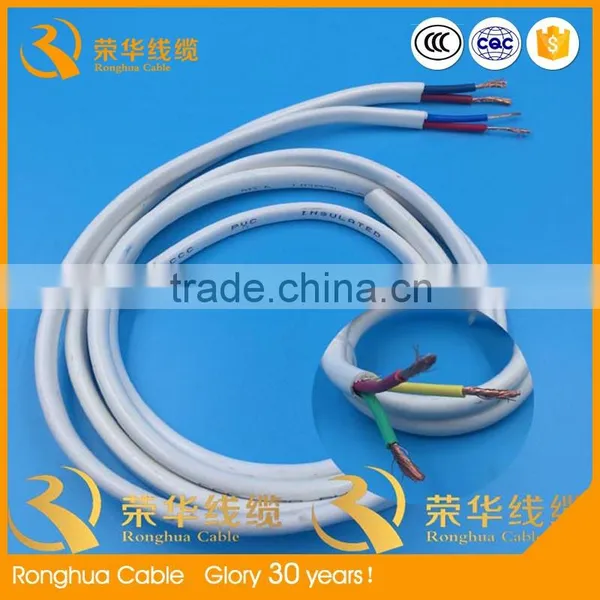

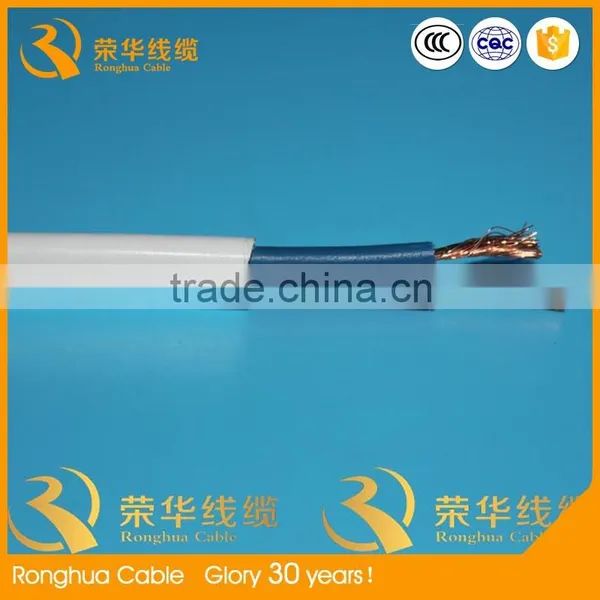

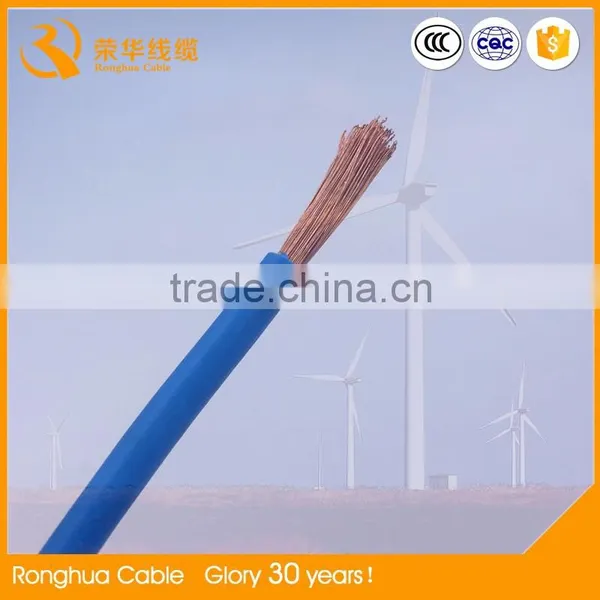

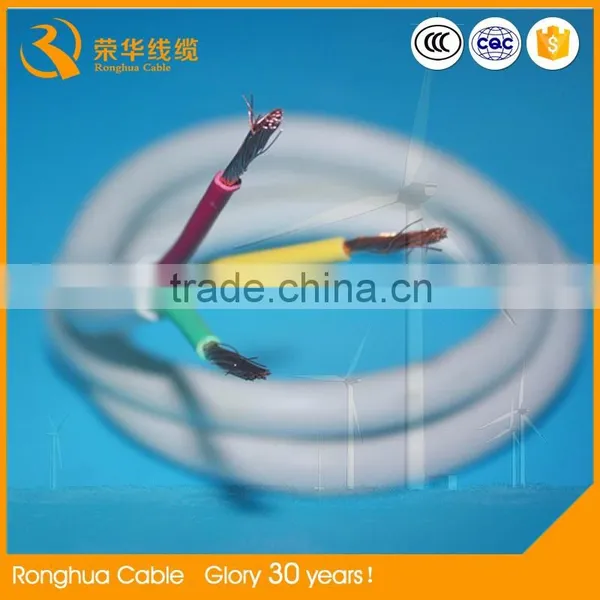

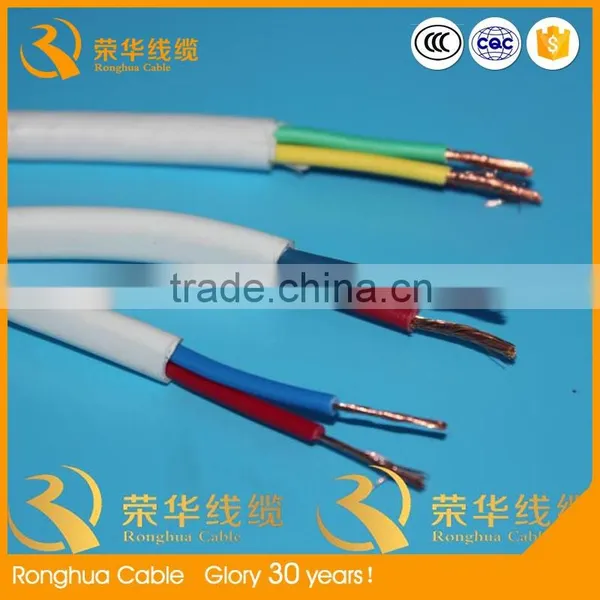

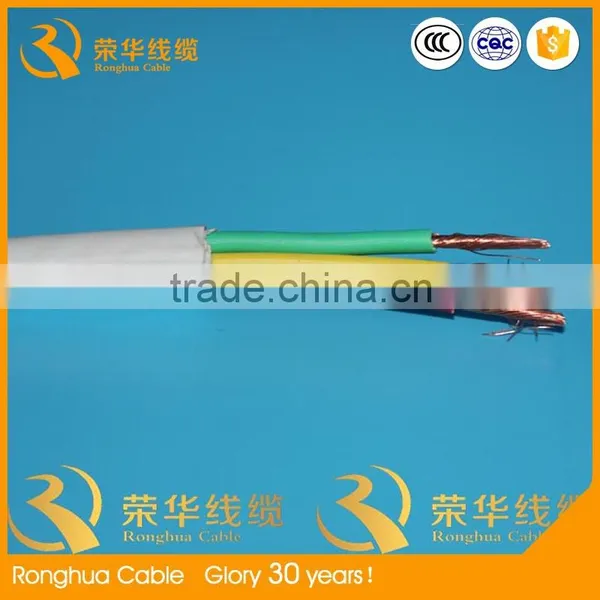

Pvc Insulation Copper Wire Braided Shield Control Cable
1.Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
2.Character and Relevant Parameters
1. Long-term service temperature of the cable conductor: 70 0C
2. Rated voltage: 450/750V
3. Cable lying temperature ≥0 0C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
3.PVC Insulated Control Cable Parameter
| Type | Name | Section Area(mm2) | No. of Core |
| KVV |
Copper Conductor, PVC Insulated and Sheathed control cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP |
Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP2 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP2-22 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVV22 |
Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVR |
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVRP |
Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable |
0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 |
Certifications Required:
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
