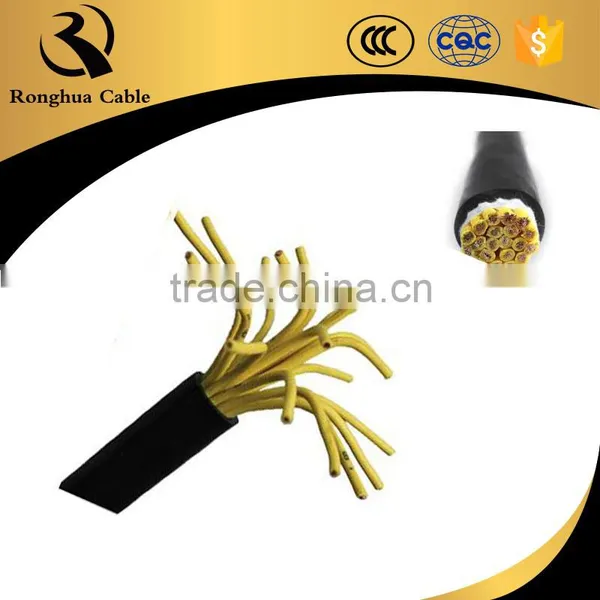

KVV450/750V Copper Conductor PVC Insulated and Sheathed Control Cable Copper Conductor Cable
- 1000 Kilometer / Kilometers per Month
- Tianjin port
- T/T Credit Card
You May Like
-
STA/ SWA Armored Instrument Cable, Instrumentation Cable
-
high quality flexible control cable copper core cable used for CNC
-
Competitive price rubber control cable for machine,ultraflex welding cable
-
YY and CY control flexible control cable
-
PVC insulated and sheathed control cable with steel tape shield
-
Ronghua Cable KVV450/750V Copper Conductor PVC Insulated and Sheathed Control Cable Copper Conductor Cable
Product Details
Place of Origin | Hebei, China | Brand Name | Ronghua | |
Model Number | KVV | Insulation Material | PVC | |
Type | Low Voltage | Application | Construction | |
Conductor Material | Copper | Jacket | PVC |
Product Description
KVV450/750V Copper Conductor PVC Insulated and Sheathed Control Cable Copper Conductor Cable
best quality power control cable for marine use low voltage
Model specification | ||
Type | Name | |
KVV | Copper conductor PVC insulated wires | |
KVVP | Aluminum conductor PVC insulated wires | |
KVVP22 | Copper conductor PVC insulated flexible cable |
Descriptions |

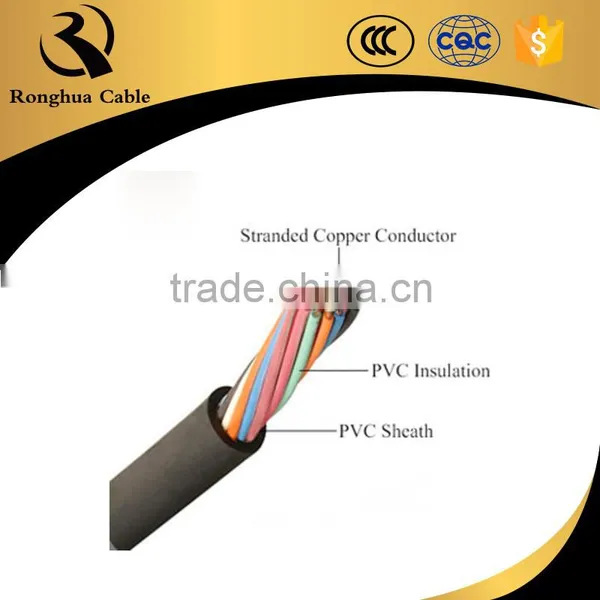

Solid or Strand Copper Conductor with PVC Insulation Ground Wire |
Code Designation:60227 IEC 01 |
Specification |
1.Rated voltage: 450/750V 2. Standard applied: IEC 60227, BS 6004, VDE 0281, JB/T8734 3. Max. working temperature: 70 °C ,can be 90 °C ,105 °C and 125 °C as per requirement 4. Insulation: PVC,LSOH material 5.Number of cores: multi-core for this type of cable 6.Cross sectional area: 2*0.75mm2 to 61*2.5mm2 available 7.Cable color: red,black,green and yellow and so on 8. Packing: 100M/roll, as per customer's requirements 9. Quality certificate: CCC,CE, IEC.Company certificate: ISO9001,ISO14001,OHSAS18001 10.OEM and customize can be available |
Applications |
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted. |
Core*nominal | Conductor | Cable referential | The maximum | The maximum | The |
cross section | type | exradius | DCR in 20℃ | DCR in 20℃ | minimum |
(mm2) | DCR in 70℃ | ||||
2*0.5 | 1 | 7.2 | 61 | 24.5 | 0.012 |
2*0.75 | 2 | 7.5 | 65 | 24.5 | 0.014 |
2*1.0 | 1 | 7.6 | 69 | 18.1 | 0.011 |
2*1.0 | 2 | 7.8 | 74 | 18.1 | 0.013 |
2*1.5 | 1 | 8.5 | 90 | 12.1 | 0.011 |
2*1.5 | 2 | 8.9 | 95 | 12.1 | 0.01 |
2*2.5 | 1 | 9.6 | 124 | 7.41 | 0.01 |
2*2.5 | 2 | 10.2 | 135 | 7.41 | 0.009 |
2*4 | 1 | 10.6 | 164 | 4.61 | 0.0085 |
2*4 | 2 | 11.2 | 176 | 4.61 | 0.0077 |
2*6 | 1 | 11.6 | 215 | 3.08 | 0.007 |
2*6 | 2 | 13 | 230 | 3.08 | 0.0065 |
2*10 | 2 | 16.5 | 377 | 1.83 | 0.0065 |
3*0.75 | 1 | 7.5 | 69 | 24.5 | 0.012 |
3*0.75 | 2 | 7.8 | 74 | 24.5 | 0.014 |
3*1.0 | 1 | 7.9 | 80 | 18.1 | 0.011 |
3*1.0 | 2 | 8.2 | 85 | 18.1 | 0.013 |
3*1.5 | 1 | 8.9 | 105 | 12.1 | 0.011 |
High voltage power cable Medium voltage power cable Low voltage power cable
Certifications Required:
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Any needs or question ,please contact us ,we will be more pleasure to service you .
We are looking forward to your inquiry and nice cooperaton .
