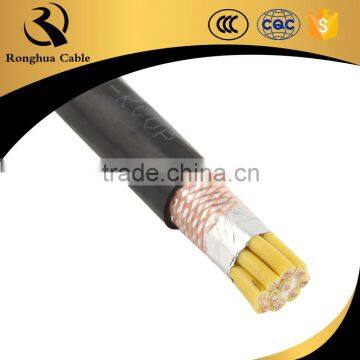

STA/ SWA Armored Instrument Cable, Instrumentation Cable
Description(Features):
1.direct-current resistance:20℃, 0.4mm copper wire, less than or equal to148Ω/km ,0.5mm copper wire, less than or equal to95Ω/km.
2. Insulation dielectric strength:Between the conductors, there is No breakdown within 1min 1kv, Conductor and shield will not be broken within1min 3kv.
3. insulation resistance:Each conductor and the rest of the grounding line core, control cable is more than 10000 m Ω. Km, more than 3000 m Ω HYAT cable. km.
4. Operating capacitance:average value is 52±2nF/km
5. far-end crosstalk ratio:150 KHZ specified when the combination of the average power is greater than 69 db/km.
Technical Parameters(Specification):
Rated Voltage: 450/750V.
The long-term working temperature of the conductor wire core is from 70 ℃ to 95 ℃, while the laying temperature is not lower than 0℃.
The permissible bending radius of the cable as below:
No-armored cable should be not less than 6 times of cable diameter;
Armored or copper tape screened cable should be not less than 12 times of cable diameter;
Shielding flexible cable, not less than 6 times of cable diameter
Control cable refers to equipment instrument power/signal control
On behalf of the model:KVV KYJV/other instrument line and so on
executive standard:GB/T 9330-2008.Flame retardant cable should also be in accordance with the technical conditions of the IEC337-8 standard.
Model | Name | Voltage V | Number of cores | Cross-sectional area mm2 | Range of application | |

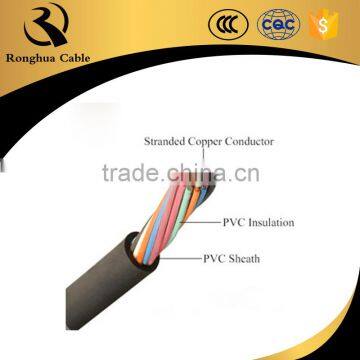

KVV | Copper core PVC insulated PVC sheathed cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipelines and other fixed occasion | |
KVV22 | Copper core PVC insulated PVC sheathed steel tape armored cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, directly buried pipeline and other fixed occasion, also can bear larger external mechanical forces | |
KVVP | Flame retardant copper core PVC insulated PVC sheathed cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipelines, etc, and somewhere that need fixed installation | |
KVVR | Soft copper core PVC insulated and sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, where there is a requirement for mobile | |
KVVRP | Copper core PVC insulated PVC sheathed braided shielding control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, where there is a requirement for mobile screen | |
ZRKVV | Flame retardant copper core PVC insulated PVC sheathed cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipe fixed occasion where demands such as flame retardant | |
ZRKVV22 | Flame retardant copper core PVC insulated PVC sheathed woven tape armored | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipes, burying and etc. There is a requirement for flame retardant can bear external mechanical forces larger fixed occasion | |
Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
Certifications:
24 hours online Technical support service
1.Receive purchase order →fessional engineer design→3.make sample→4.test→duce→6.test→7.packing→8.loading→9.deliver to port→10.deliver to the destination→11.customer receive our cables.
During the production,our cables have passed the strictly test by our quality inspector.We take photos during the production,loading,shipment and send them to our clients.
