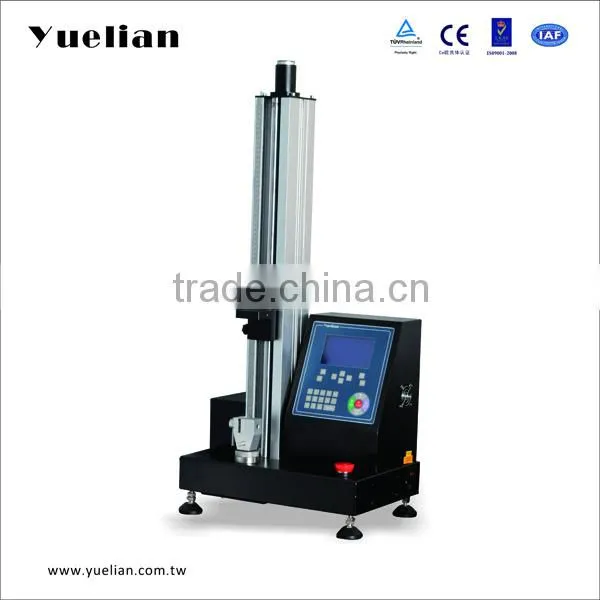

Micro tensile testing machine(YL-1109B)
Purpose:
Tensile Testing Machine is designed to conduct tensile, compression, adhesive strength, peel, tear and bending tests etc. for metal, rubber, plastics, textile, leather, paper, composite materials and so on. The new developed B type LCD display screen operation mode are full of elasticity on the collocation selections, with the functions of analysis, statistics, storage etc. on the computer by connection to the special software. It is easy to operate.
Design standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Feature:
The transmission efficiency of this tester is more than 85%. With little energy loss, high precision, large extensibility and available to operate by single machine and connection to computer.
Function:
Available to display the force and displacement simultaneously.
Adopt stepper motor drive and precise ball screw drive, available to set the test speed.
With up & down fine adjustment button and automatic reset function after finishing the tests.
Available to connection to printer and output the test report.
Specification:
| Optional capacity | 1,2,5,10,20,50,100KG |
| Unit switch | kgf,lbf,n,kn |
| Testing accuracy | <0.1% |
| Force resolution | 1/12,0000 |
| Control mode | display control or computer control |
| Test speed | 0.5-600mm/min,available set free |
| Test stroke | 500mm(without grip) |
| Test width | 55mm |
| Force unit switch | mpa,kkpa,kgf/cm2,lbf/in2 |
| Stop mode | overload stop button,specimen damage automatic stop,upper&lower limit set automatic stop,automatic reset function |
| Weight | about 30kg |
| Dimension | 40*30*70(W*D*H)cm |
| Power | AC 220V 50-60HZ 4A |
Software and test report:
Certificate:
Factory:
