Paper Carton Resist Compression Testing Machine(TAPPI standard)
- 500 Set / Sets per Month
- Shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yuelian | |
| Model Number | YL-6609PC | Power | Electronic | |
| Usage | Compression Testing Machine |
Product Description

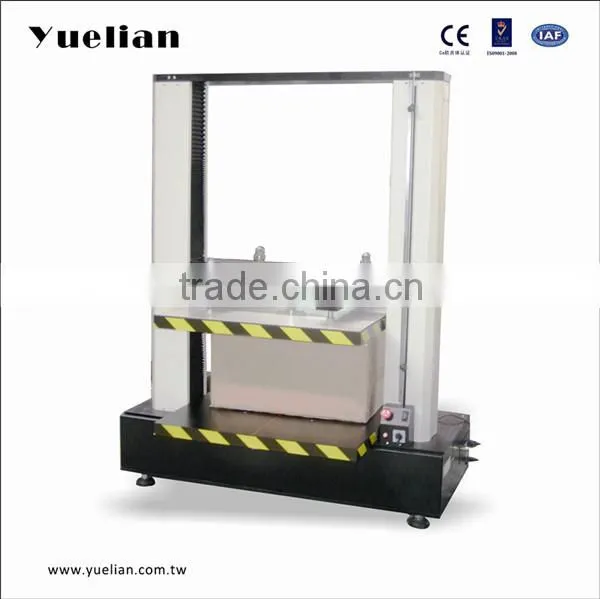

Paper Carton Resist Compression Testing Machine (TAPPI standard)
Purpose:
Paper carton resist compression testing machine is mainly testing the compressive strength of boxes, the carton’s compressive strength and stacking strength. The analysis of test results can be obtained through the carton, color box packaging structure design features and whether it can meet the transportation, handling and other strength requirements. The force-displacement curve can be displayed on the computer and can test out that the conditions of the box when it suffering a compressive force. The test results can be an important reference for a factory’s finished products stacked packing a high level of.
Design Standards: TAPPI-T804, ISTA JIS-Z0212, GB 4857.3.4
Specification
Model NO. | 6609PC-A | 6609PC- B | 6609PC- C |
Capacity | 500kg, 1000kg, 2000kg, 5000kg(Select One Kind) | ||
Unit | Kgf ,g ,N ,kn , lbf ,TON(Switchable) | ||
Resolution | 1/250,000 | ||
Precision | ≤0.5% inside Leq 0.5% | ||
Control Method | Computerized operation control | ||
Test Space | 80×80×100CM | 120×120×120CM | 150×150×150CM |
Compression Speed | 10±3/min | ||
Speed Range | Suitable set by computer | ||
Stop Method | Break and rupture stop, the upper and lower limit setting stop, automatic reset function | ||
Display Functions | Test times, peak value, test curve, test form, average values, etc. | ||
Holding Pressure Function | Suitable set freely in capacity range | ||
Holding Pressure Time | 0.01h~999.99h , suitable set freely | ||
Weight | 700KG | 760KG | 850KG |
Volume | 120×80×160CM | 160×120×190CM | 190×150×230CM |
Accessories | test software CD, computer connection wire | ||
