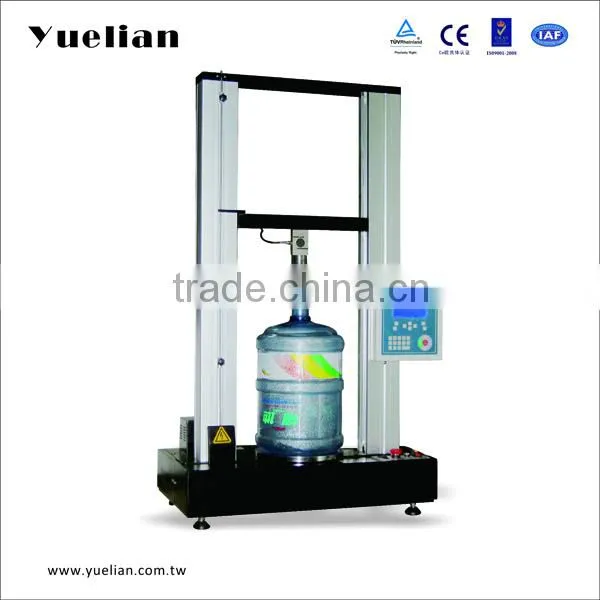

YL-1210B High Quality Carton compression strength tester
Purpose:
Carton compression strength tester is designed for conduct compression test for glass, display screen, magnet ring, mobile phone, portable computer, container bottle to know the stress state of products' all the parts. It is a basic equipment for improving quality.
Software Function:
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification:
| Capacity | 1,2,5,10,20,50,100,200,500kg(can select double capacities preparation) |
| Display | Displayer or Computer display mode |
| Force Resolution | 1/120,000 |
| Force Accuracy | ≤±0.5% |
| Stroke Resolution | 0.005mm |
| Control Mode | All computerized operation mode |
| Test Stroke | 450mm or 800mm (without grips) |
| Test Width | 420mm |
| Test Speed | 0.1~500mm/min can set by computer, with up & down fast adjustment button of grips |
| Force Unit Switch | kgf, N, Ibf, g, ton, Mpa |
| Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Test Function | maximum, break value test and so on |
| Machine Dimension | 96×45×97cm(W×D×H) |
| Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power | 400W |
| Machine Weight | Approx 80kg |
| Power Supply | 220V 50/60HZ 10A |
| Standard Device | 1 set of grips, test software, 232 computer connection wire |
| Optional | Personal computer |
Test software and report:
Exhibition:
Factory:
