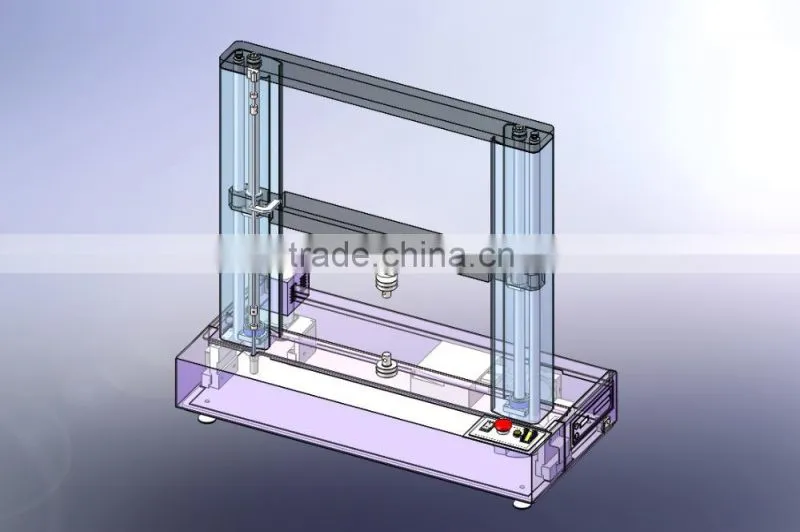

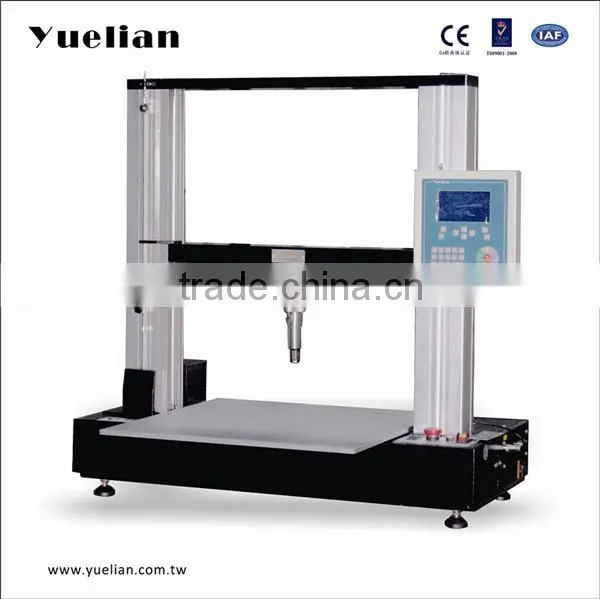

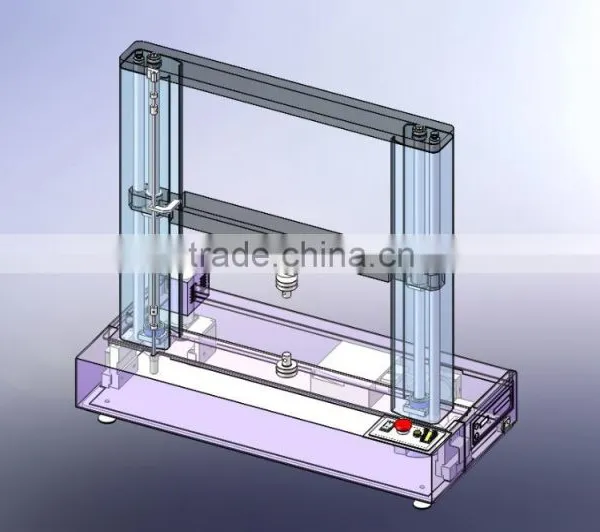

Electronic Universal Material Compression Resistance Tester

Name: Electronic Universal Material Compression Resistance Tester
Brand: Yuelian
SKU: 112426277
Availability: InStock

US$ 8,000 - 9,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Yuelian

Model Number:

YL-1209B

Guangdong Yuelian Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Yuelian

Model Number YL-1209B

Power Other, Electronic, 400W

Usage Compression Testing Machine

Glass Static Pressure Testing Machine

Purpose

This tester is designed for testing display screens compression resistance under a certain load.

It is popular with manufacturers of display screens,research,develop and teste computer screen

or concerning display screens. It may test compression resistance of any point in flat surface by

adjusting X and Y axle, order Z axle move down by system after position,and keep set time,finish

force value and time test graph,then get compression resistance of the specimen from that graph.

Standard Test Data

ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN10002-1,

EN 1002-2, BS1610,GB T228

Specification

Capacity	10N,20N,50N,100N,200N,500N,1KN,2KN,5KN(two capacities is available)
Display	Display control or computer control
Force Resolution	1/120,000
Force Accuracy	≤±0.5%
Stroke Resolution	0.005mm
Control Mode	Display control or computer control
Test Stroke	350mm
Test Width	600mm×600mm
Test Speed	0.5~500mm/min, can set by computer, with up & downfast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Over-load stop,emergency stop,specimen broken automatic stop,top and bottom limitation automatic stop,automatic reset function
Machine Dimension	96×45×97cm(W×D×H)
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power	400W
Machine Weight	Approx 80kg
Power Supply	220V 50/60HZ 10A
Standard Device	1 set of grips, english operation manual.
