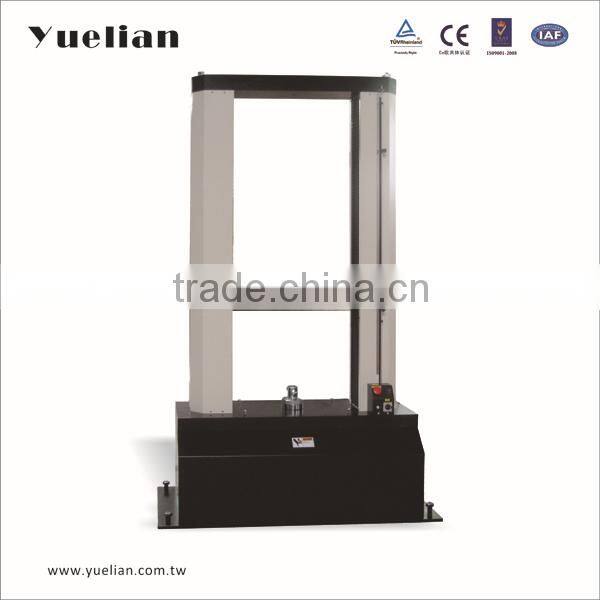

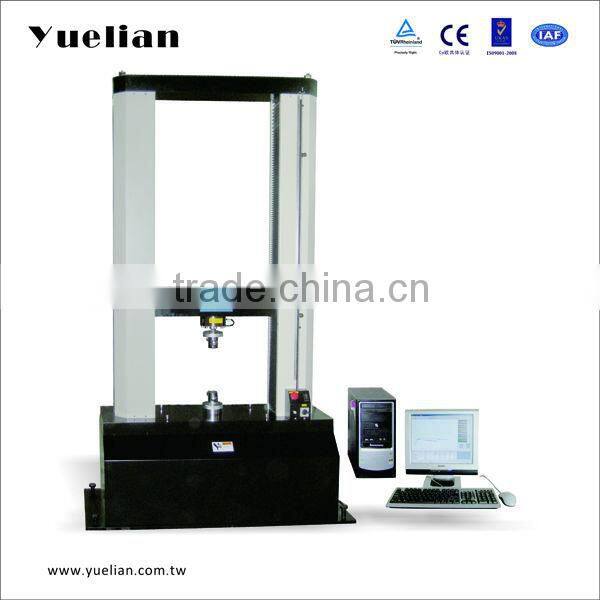

YL-1151 Servo control concrete pipe compression testing machine
Introduction:
Concrete pipe compression testing machine of rigid frame structure is not easy to be deformed. Precise servo motor and such ball screw driving parts supply with stable test speed. Strong and functional computer system provides a complete test function; assemble with different grips/accessories are able to do various material test.
Character:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high- accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Purpose:
Universal Testing Machine is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development .
Software Function:
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Software Protection:
over stroke, over capacity protection.
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
Parameters:
Capacity |
1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000kg ,10 tons(can select double capacities preparation) |
Display |
Computer display mode |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Control Mode |
All computerized operation mode |
Test Stroke |
1000mm |
Test Width |
420mm |
Test Speed |
0.5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper &lower limit set automatic stop, automatic reset function |
Machine Dimension |
92×62×199cm(W×D×H) |
Machine Drive |
Servo motor drive, synchronous wheel and precision ball screw drive |
Power |
750W |
Machine Weight |
Approx 422kg |
Power Supply |
220V 50/60HZ 10A |
Standard Device |
1 set of grips, computer software, USB computer connection wire |
Optional |
Personal computer |

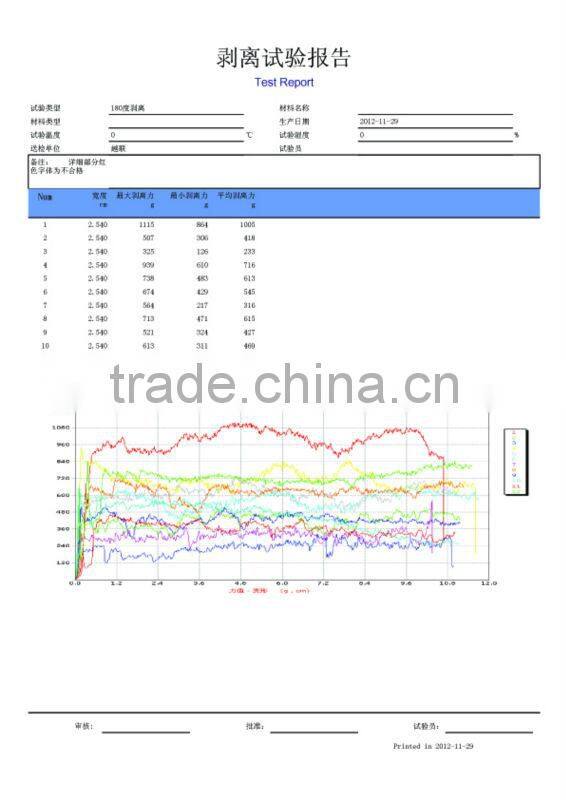

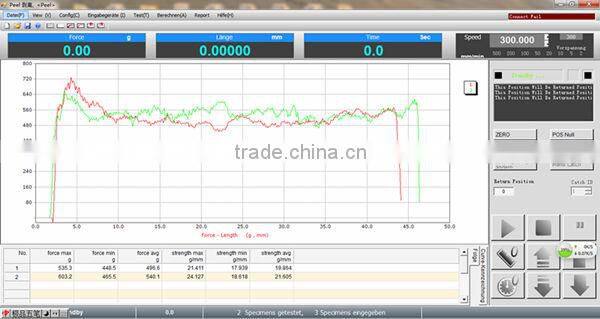

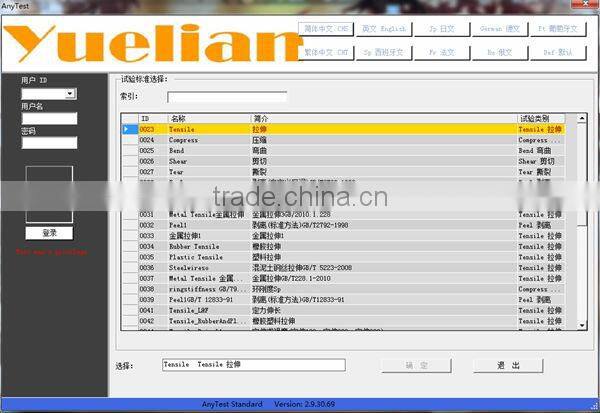

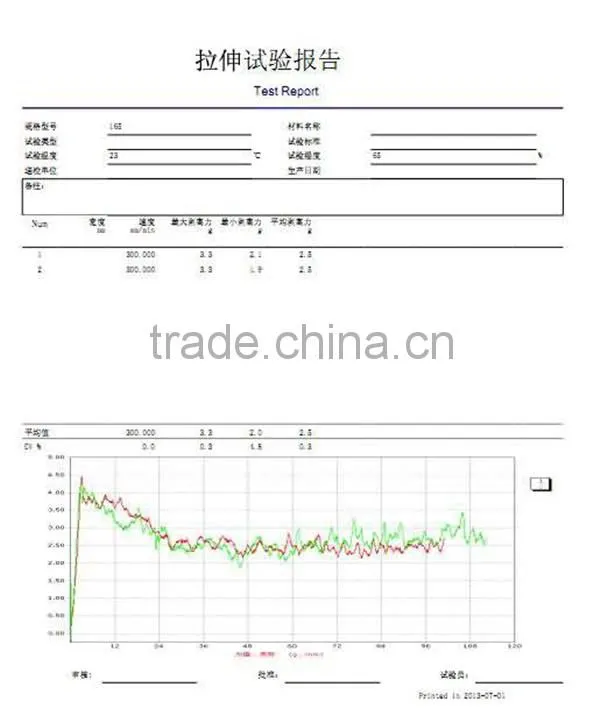

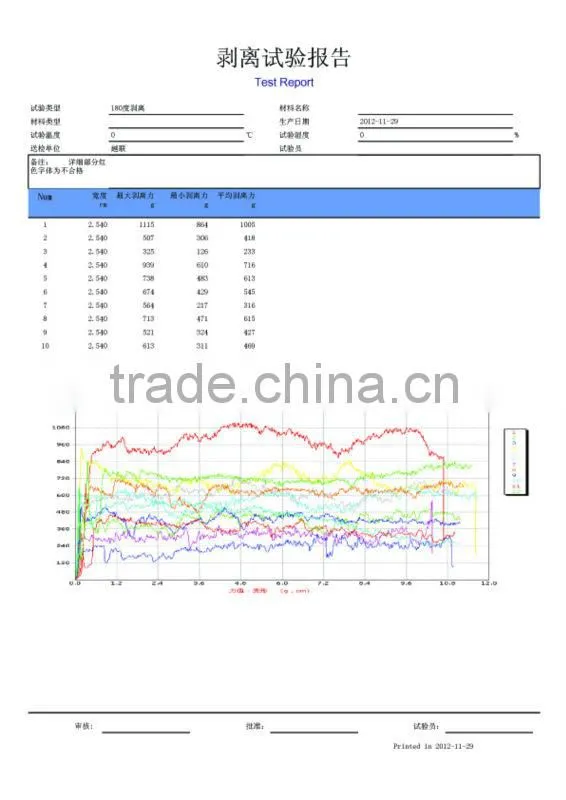

Software and test software:
Certificate:

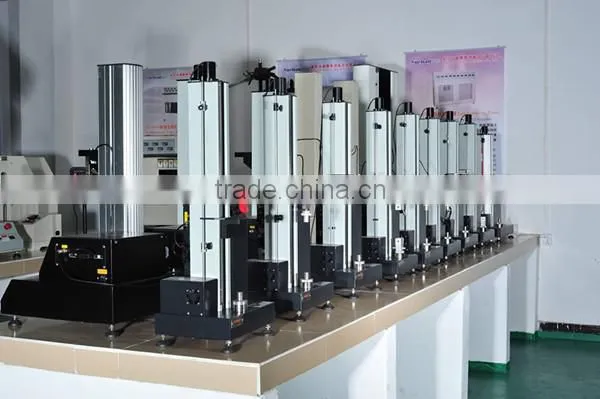

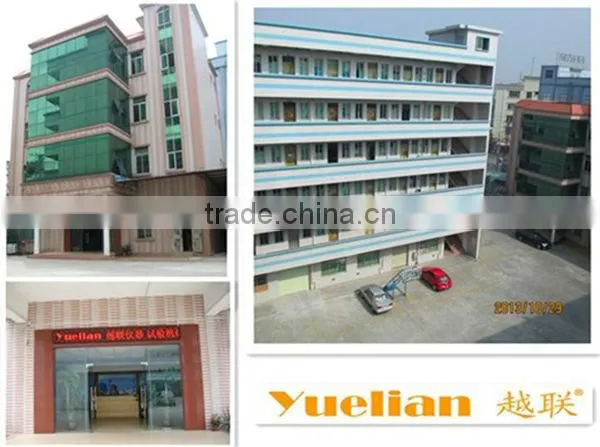

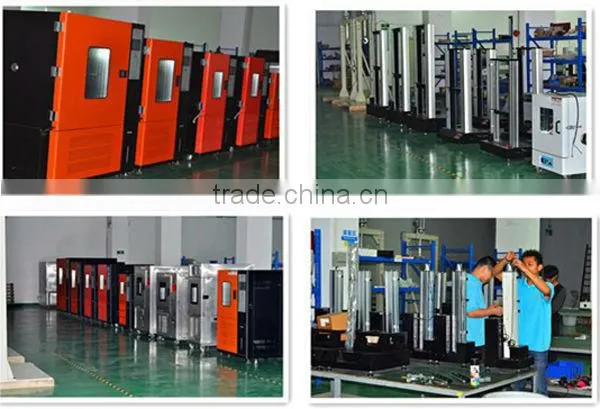

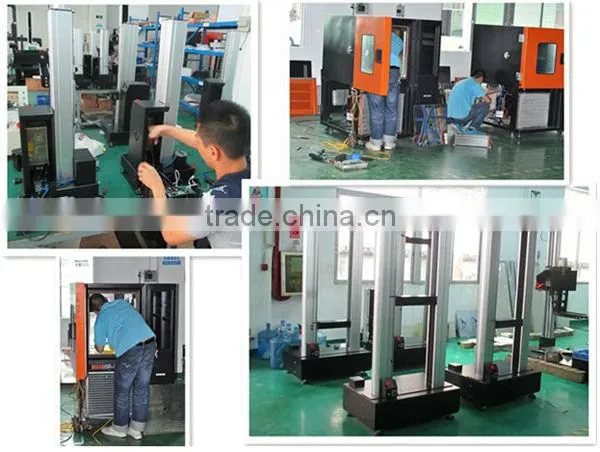

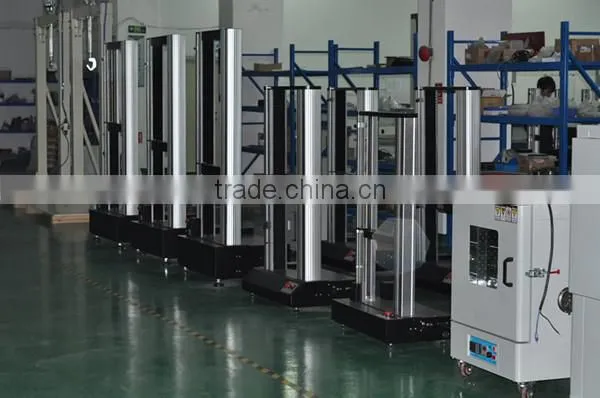

Factory:
