Compressive Resist Compression Strength Testing Machine Price Quality Choice

Name: Compressive Resist Compression Strength Testing Machine Price Quality Choice
Brand: Yuelian
SKU: 112424605

US$ 2,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Yuelian

Model Number:

YL-6609PC

Guangdong Yuelian Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Yuelian

Model Number YL-6609PC

Power Electronic

Usage Compression Testing Machine

Compressive Resist Compression Strength Testing Machine Price

Product Description

Purpose:

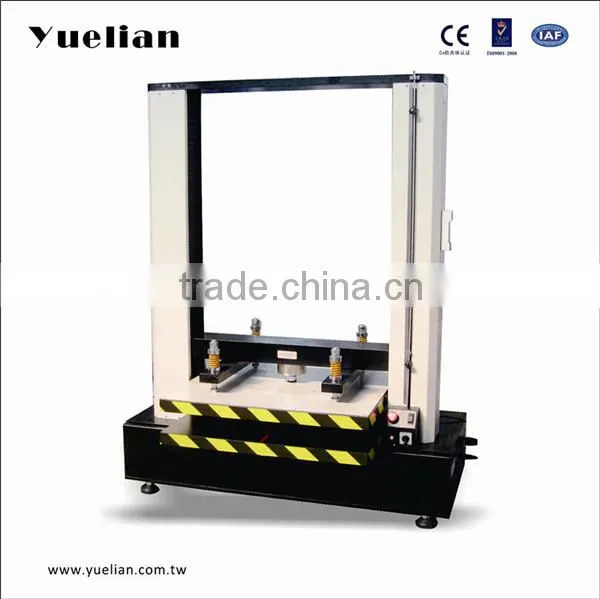

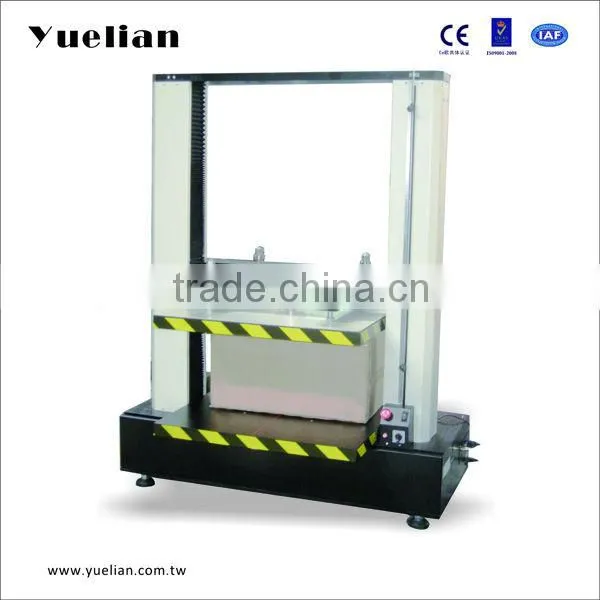

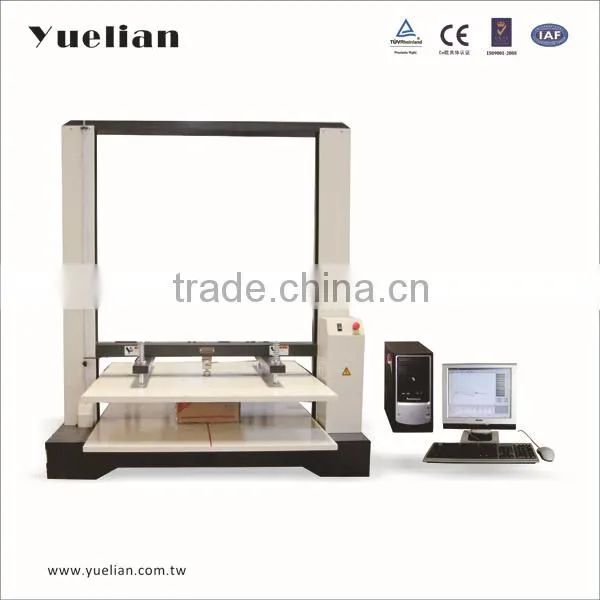

Compressive Resist Compression Strength Testing Machine Price is mainly testing compressive strength

of boxes, carton's compressive strength and stacking strength. The analysis of test results can be obtained

through the carton, color box packaging structure design features and whether it can meet the

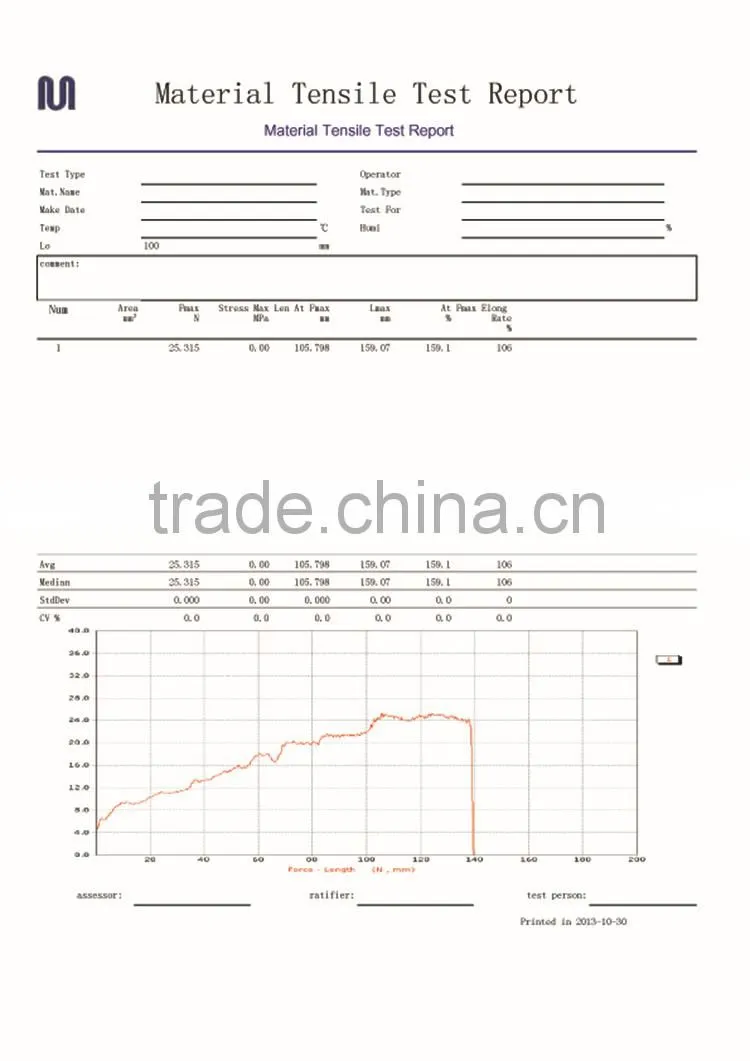

transportation, handling and other strength requirements.The force displacement curve can be displayed

on the computer and can test out that the conditions of the box when it suffering a compressive force.

Design Standards:

TAPPI-T804ISTA, JIS-Z0212, GB4857.3.4

Specification:

Model NO.	6609PC-A	6609PC- B	6609PC- C
Capacity	500kg1000kg2000kg5000kgSelect One Kind
Unit	Kgf ,g ,N ,kn , lbf ,TON(Switchable)
Resolution	1/250,000
Precision	Leq 0.5%
Control Method	Computerized operation control
Test Space	80×80×100CM	120×120×120CM	150×150×150CM
Compression Speed	10±3/min
Speed Range	0.5~300mm Suitable set by computer
Stop Method	Break and rupture stop, the upper and lower limit setting stop, automatic reset function
Display Functions	Test times, peak value, test curve, test form, average values, etc.
Holding Pressure Function	Suitable set freely in capacity range
Holding Pressure Time	0.01h~999.99h Suitable set freely
Weight	700KG	760KG	850KG
Volume	120×80×160CM	160×120×190CM	190×150×230CM

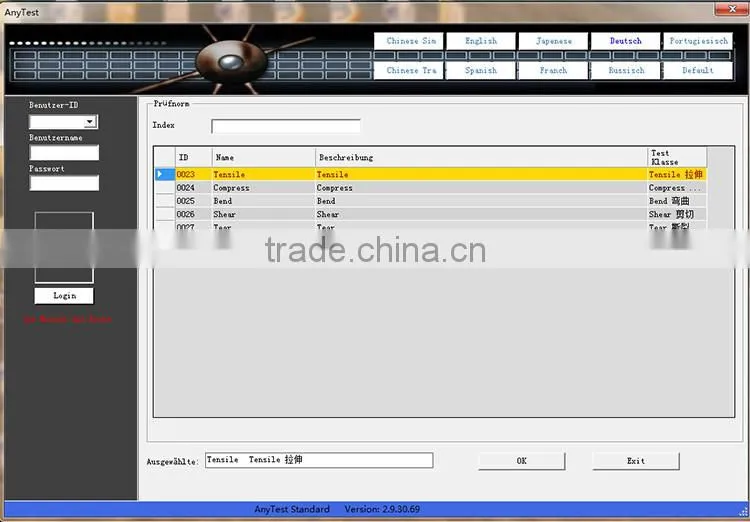

Accessories	Test software, computer connection wire
