YL-1123 Universal tensile testing machine
Detailed Product Description
Universal Tensile Testing Machine
Application: tensile, compression, bending,flexure, shear, peel, tear, fracture toughness and other tests of metallic and nonmetallic materials.
It is designed for test strength of various materials, finished products, semi-finished products and monocase, select various clamps and smelt tool, ;colorful liquid crystal display, light touch switch; connected computer can obtain point, and conduct various data analyses, printout. Software has powerful functions, suitable used for the industries of metal, steel products, aviation, rubber plastic, cable, shoes, leather, chemicals and so on.
Specification:
Capacity Option |
5, 10, 20, 50, 100, 200, 500, 1000, 2000KG (select one kind) |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Test Stroke |
700mm, without grips |
Test Width |
350mm |
Test Speed |
0.01~500mm/min |
Force Unit Switch |
Kgf,g,N,kn,lbf,TON (switchable) |
Stop Method |
Overload Stop, specimen damage stop, emergency stop button, upper & lower limit stop, over stroke protection |
Control Method |
All computerized operation control |
Machine Dimension |
95×58×151 CM(W×D×H) |
Machine Weight |
Approx 140KG |
Power |
AC 220V 5060HZ 4A |
Standard Device |
One set of grips, computer software, computer connection wire, one set of software CD. |
Test Report

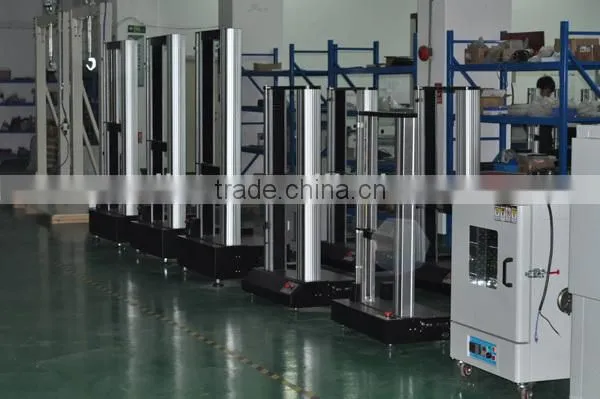

Workshop
Certification
