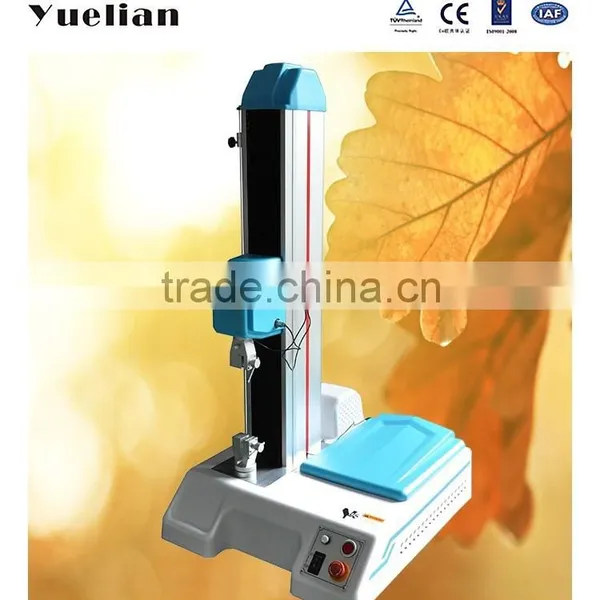

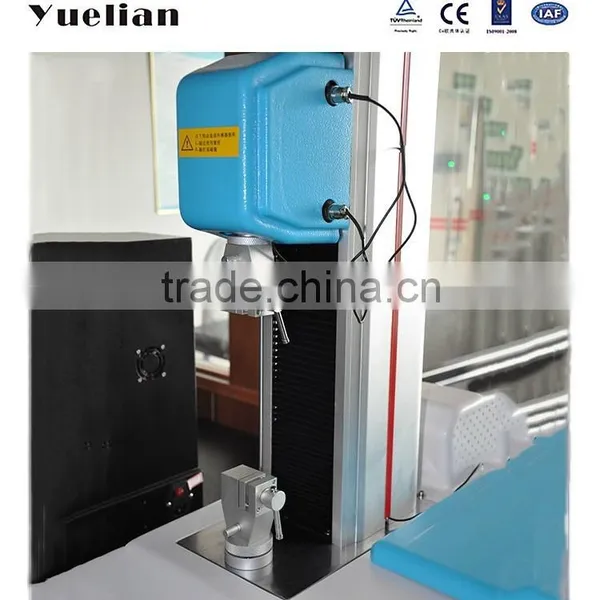

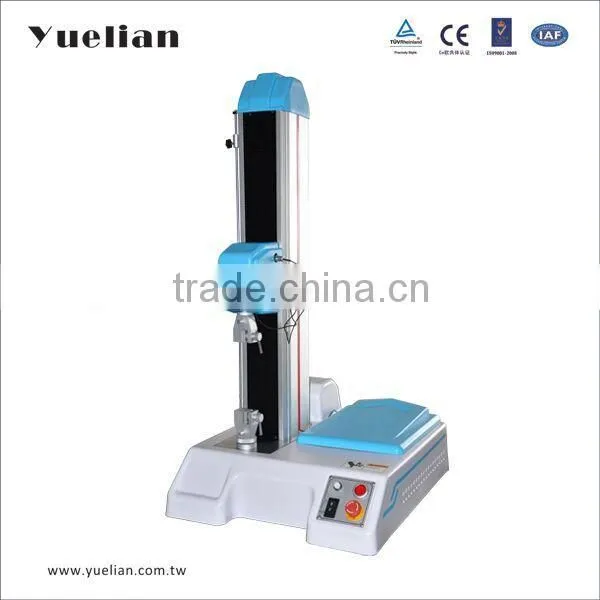

Price Universal Tensile Strength Testing Machine Price
Introduction
This tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
Machine structure
AC servo motor drive, precision ball screw drive;
Screw shield using aluminum extrusion, surface blasting, anode satin handle, exquisite;
Shell selection of advanced electrostatic spray treatment, durable;
Vertical stroke trim switch;

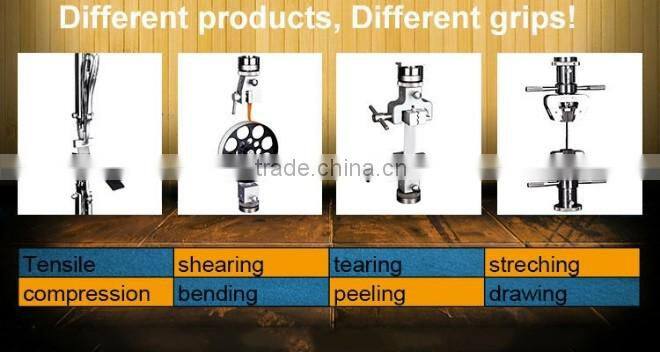

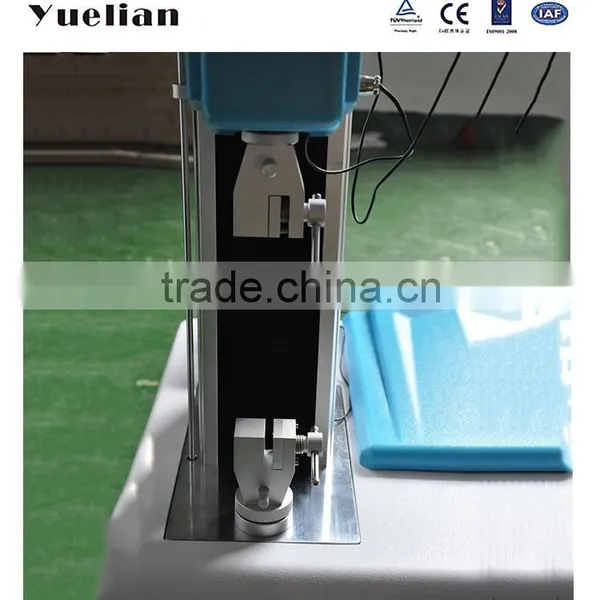

Quick release connectors, you can easily switch to a different function fixtures;

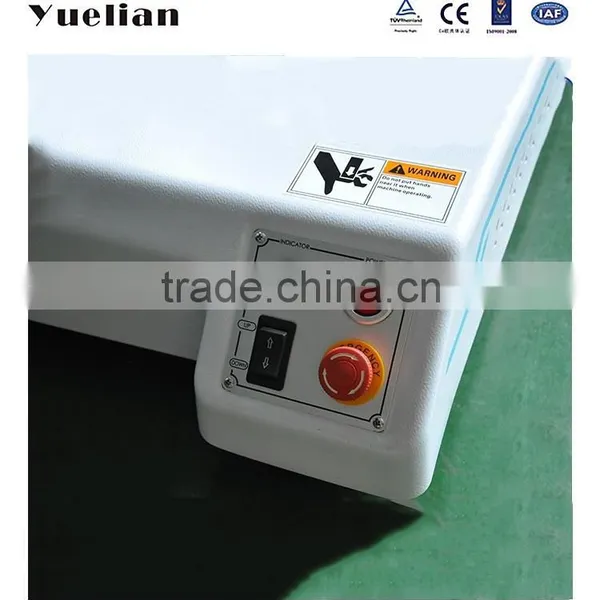

Machine protection: over-travel, over capacity protection, emergency brake switch;
Machine function

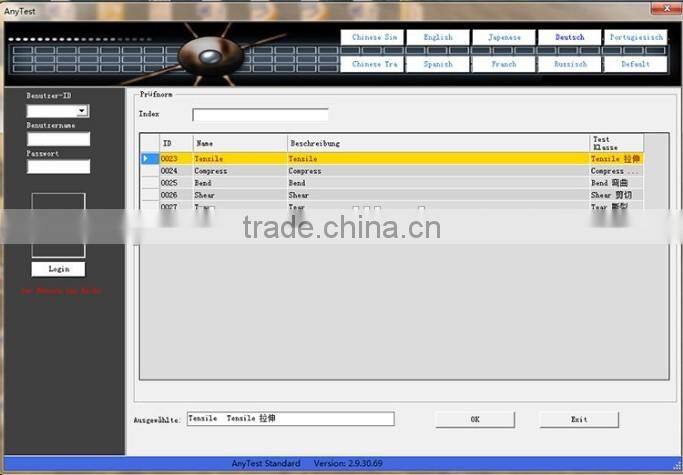

1. Powerful data analysis and statistical curves graphical analysis aids, with zoom, pan, crosshairs, and take other functions.
2. Several historical test data can be transferred to the graphics displayed simultaneously comparative analysis done.
3. Up to 7 interval setting, 40 manual taking points, 120 automatic pick point function. With the maximum, minimum, average, to the level of the average, median, standard deviation, population standard deviation, CPK values and other statistics.

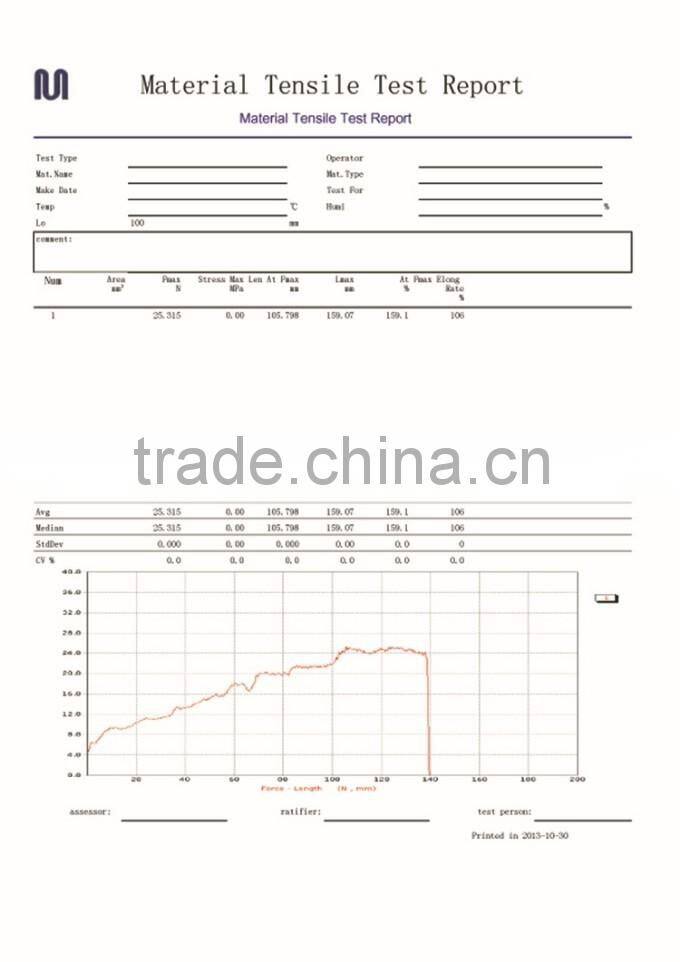

4. Test curve shows: during the test in real time and can be a show of force at the same time - displacement, force - time, displacement - time, stress - strain curve, can easily switch to the screen to see the curve;
5. Custom test methods: with the speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step control can be nested loop. set automatic return, automatic judgment fracture, auto-zero function.
6. Positive and negative force sensor can be switched;
Specification
Product Name |
Price Universal Tensile Strength Testing Machine Price |
|||
Capacity |
10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN (can select double capacities preparation) |
|||
Display |
Computer display mod |
|||
Force Resolution |
1/500,000 |
|||
Force Accuracy |
≤±0.1% |
|||
Stroke Resolution |
1/500,000 |
|||
Stroke Accuracy |
≤±0.1% |
|||
Test Stroke |
450 mm |
700mm |
1000mm |
1300mm |
Test Width |
Ø140mm |
|||
Test Speed |
0.01~500 mm/min(Customizable) |
|||
Acquisition Rate |
2000 times / S |
|||
Force Switch |
N,kN,gf,kgf,lbf,kP,tf(SI),tf(long) |
|||
length Unit |
mm,cm,Inch,m,km,um |
|||
Stress Unit |
Pa,Kpa,Mpa,Gpa,KN/m2,N/m2 |
|||
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
|||
|
Machine Dimension (W×D×H) |
520*590*1061mm |
520*590*1325mm |
520*590*1530mm |
520*590*1880mm |
Machine Drive |
Servo motor drive |
|||
Power |
400W |
|||
Machine Weight |
45KG |
50kg |
55kg |
70kg |
Power Supply |
220V 50/60HZ 10A |
|||
Standard Device |
1 set of grips, computer software, USB computer connection wire |
|||
Optional |
Personal computer, grips |
|||
