Cloth Abrasion Testing Machine / Rub Tester

Cloth Abrasion Testing Machine / Rub Tester photo-1
Cloth Abrasion Testing Machine / Rub Tester photo-2
Cloth Abrasion Testing Machine / Rub Tester photo-3
Cloth Abrasion Testing Machine / Rub Tester photo-4
Cloth Abrasion Testing Machine / Rub Tester photo-5
Cloth Abrasion Testing Machine / Rub Tester photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yuelian
Model Number:
YL-3315T1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Yuelian
Model Number YL-3315T1
Power Other, Electronic, 1 phase, AC, 220V, 10 A
Usage Abrasion Tester

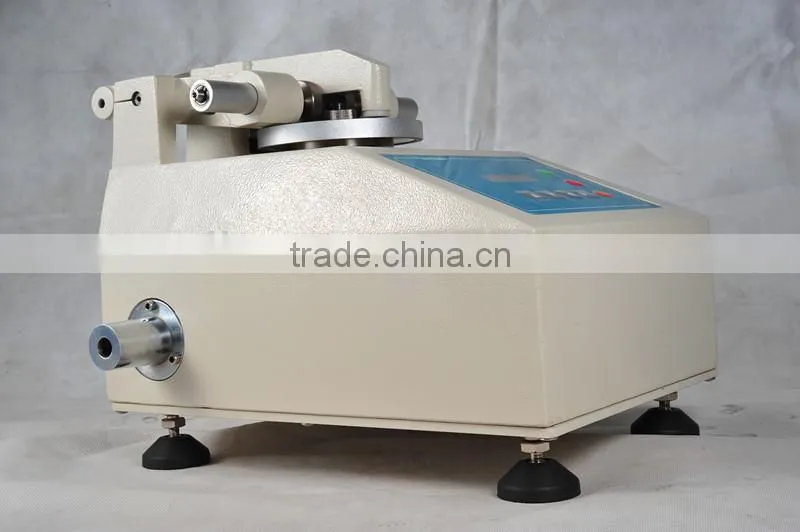

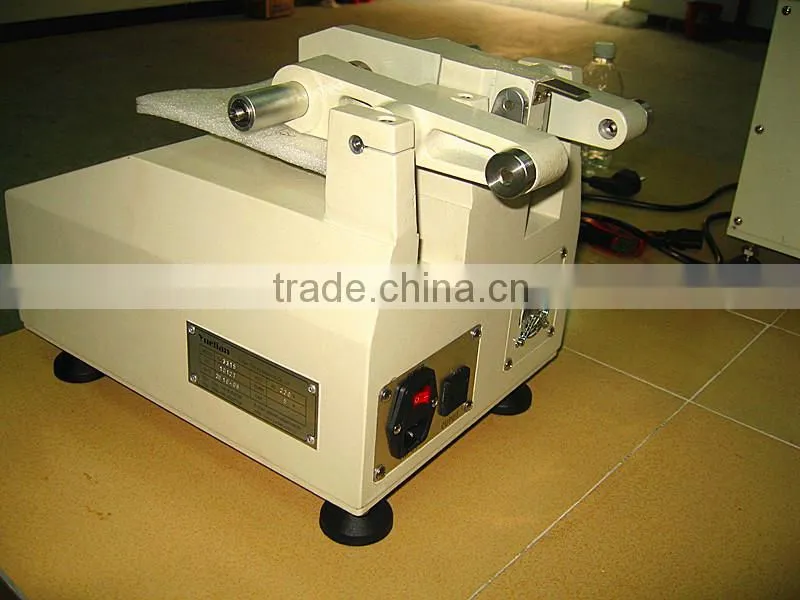

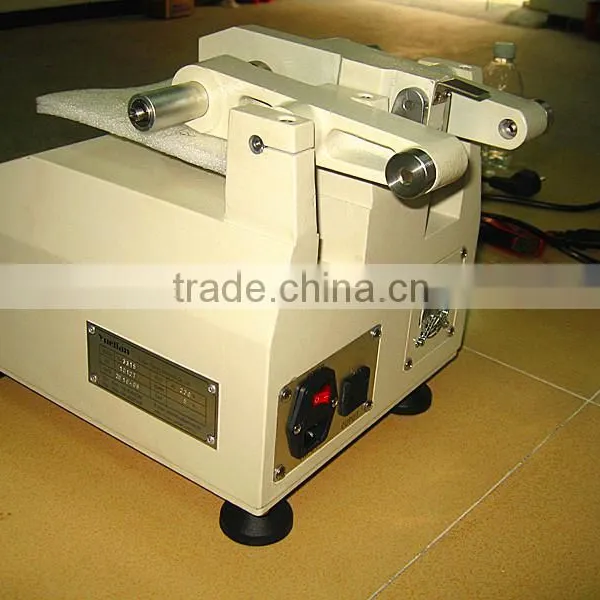

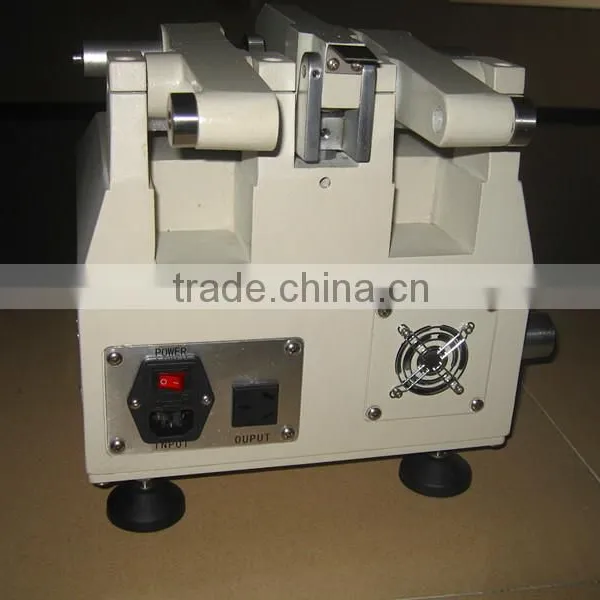

Abrasion testing machine YL-3315T1



The abrasion testing machine property could be indicated by measure the loss of weight, volume and thickness. This tester is suitable used for abrasion test to leather, fabric, paint, paper, floor brick, plywood, glass, natural rubber and so on.



Test Standard:

 The abrasion testing machine designed according to JIS, ASTM and relative standards.

JIS-A1453, K6902, K6911 K-7204 K5400 L1096 ASTM-D4157,D1044,D1175, BS EN13329-2006,ISO 3537,

DIN 52347



Specification:

Abrasion Wheel

Diameter: 2 inches, Width: 1/2 inches

Between centers of Left&Right

Grinding Wheels

63.5mm

Between centers of Specimen

 Tray and Grinding Wheel

38mm

Test Tray Rotating Speed

Use stepper motor, 1-100RPM, adjustable (default set value 60RPM)

Loading

250g, 750g, 1000g (bare weight 250g, attached stainless steel weights 250g, 750g, adjustable)

Counter

Electron liquid crystal display 8 digits, auto-stop.

Specimen Size

110mm, center hole φ7.5mm

Thickness

1~6mm, soft and hard materials can be test

Specimen Clamping Block

Easy remove, as replacement wet abrasion test, ultra thick specimen and other special test,  used with specialized clampers (optional)

Accessories

1pc of specimen slicer, 1pc of wrench, 10pcs of sand papers, 1pc of specimen clamping frame,

1pc of vacuum cleaner (self-made)

Machine Dimension

55×38×47cm

Machine Weight

30kg

Power

1 phase, AC, 220V, 10 A
