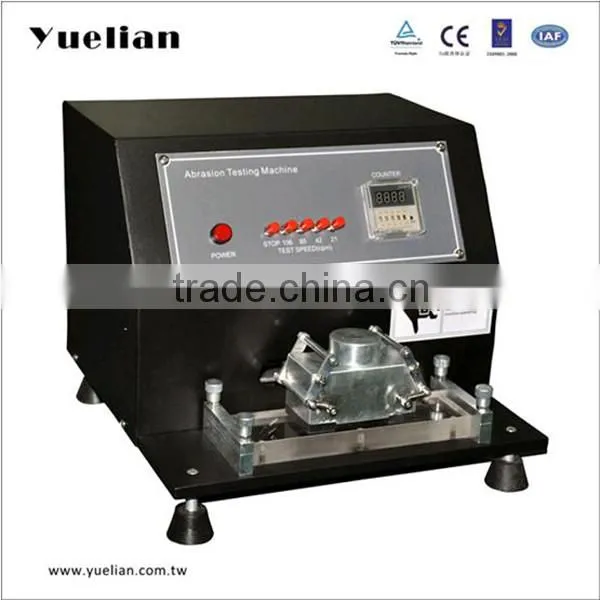

Ink abrasion tester (YL-6604G)
Purpose:
Ink abrasion tester is designed for the abrasion resistance test of printed materials, PS boards and coating layers of other products. It helps to effectively analyze the abrasion resistance, the ink layer fastness and the coating rigidness of the products.
Features:
Micro-computer control, LCD display
Menu interface, PVC operation panel
Applicable tests: dry rub, wet rub, wet bleed or transfer, wet smear and functional rub
Curve movement mode
Four testing speeds
Memory recovery in power failure
Buzzer alarm
Technical Indexes:
Rubbing pressure: 4 lb(1.8kg)
Rubbing speed: 21, 42, 85,106cpm, 4 kinds of adjustable speed
Rubbing motion: to-and-fro movement in curve
Rubbing times: 0~999,999, automatic stop
Number of specimens: 1~2 pieces
Power: AC 220V ,50-60Hz
Dimensions: 300 mm (W)×330 mm (D)×300 mm (H)
Net weight: 20 kg
Standards:
GB 7706, JISK 5701 , ASTM D5264, TAPPI T830
Specification:
Control Method |
Microcomputer control, LCD display |
Specimen Area |
Min Size 230×50mm |
Friction Speed |
21/42/85/106C.P.M 4 kinds of adjustable speed |
Friction Load |
41b(1.8Kg) |
Friction Stroke |
60mm |
Counter Setting |
0-999999 Automatic stop |
Friction Area |
50×100mm |
Machine Power |
40W |
Machine Dimension |
300×325×300mm (W×D×H) |
Machine Weight |
20kg |
Service Voltage |
AC 220V 50 60HZ 2A |
