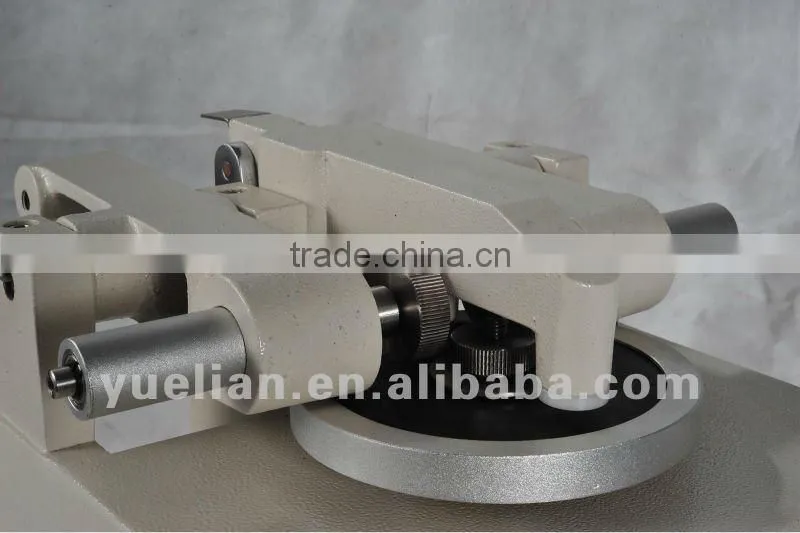

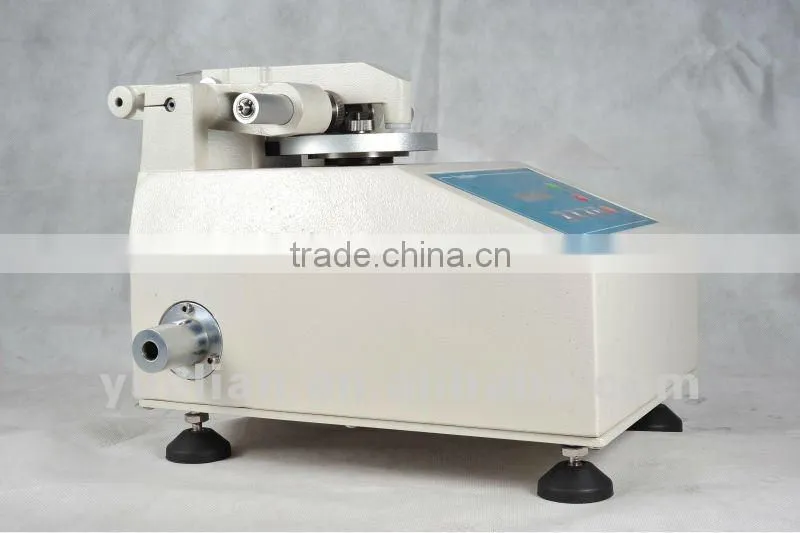

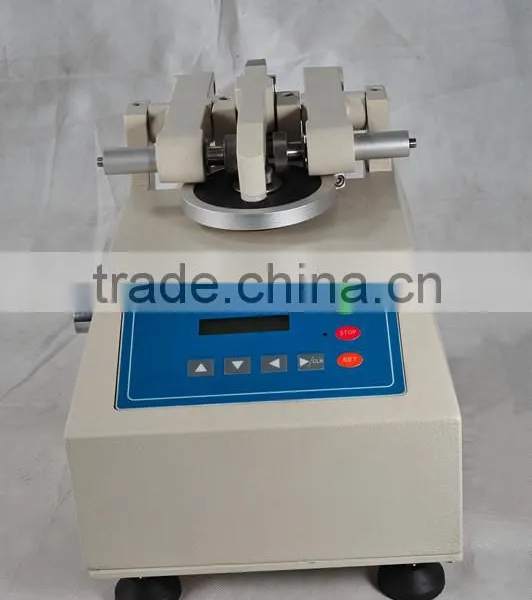

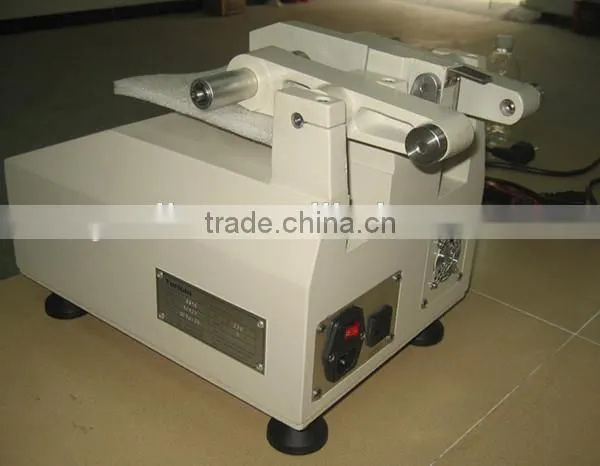

Help CenterQuality and Durability Accelerated Rotary Abrasion Tester
Related Products

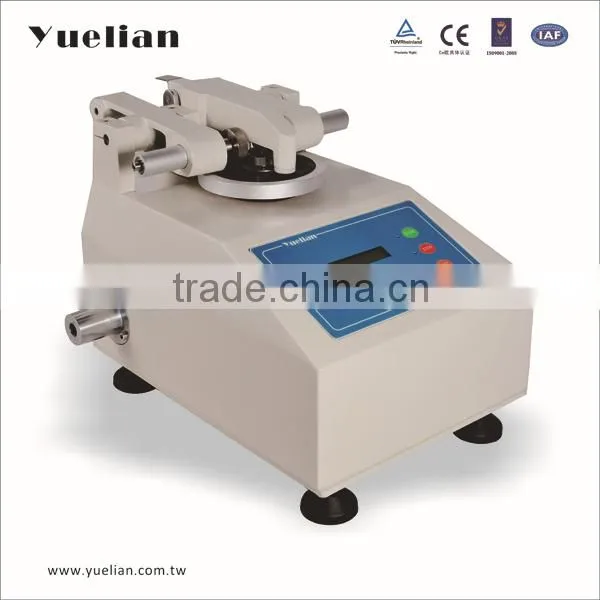

quality and durability Accelerated wear tester
Abrasion Tester is designed according to JIS, ASTM and relative standards. .
The abrasion property could be indicated by measure the loss of weight, volume and thickness. This tester is suitable used for abrasion test to leather, fabric, paint, paper, floor brick, plywood, glass, natural rubber and so on.
Characteristics:

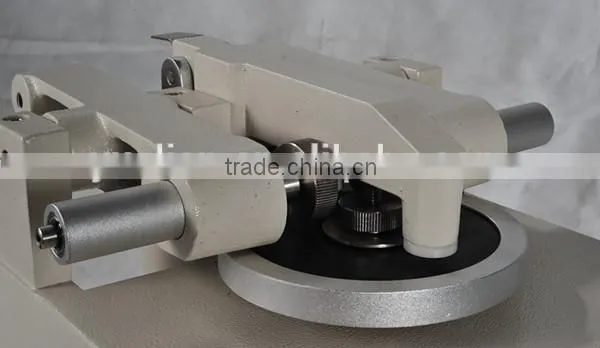

Grinding Wheel |
Diameter 2 inches, Width 1/2 inches |
Distance of Left & Right wheel |
63.5mm |
Distance of Specimen tray and wheel |
38mm |
Test Tray Rotating Speed |
Use stepper motor, 1-100RPM, can set (default set value 60RPM) |
Loading |
250g, 750g, 1000g (bare weight 250g, attached stainless steel weights 250g, 750g, adjustable) |
Counter |
Electron liquid crystal display 8 digits, auto-stop. |
Specimen Size |
φ110mm, center hole φ7.5mm |
Thickness |
1~6mm, soft and hard materials can be test |
Specimen Clamping Block |
Easy remove, as replacement wet abrasion test, ultra-thick specimen and other special test, used with specialized clampers (optional) |
Accessories |
1pc of specimen slicer, 1pc of wrench, 10pcs of sand papers, 1pc of specimen clamping frame, 1pc of vacuum cleaner (self-made) |
Machine Dimension |
55×38×47cm |
Machine Weight |
30kg |
Power |
1 phase,AC220V, 10 A |

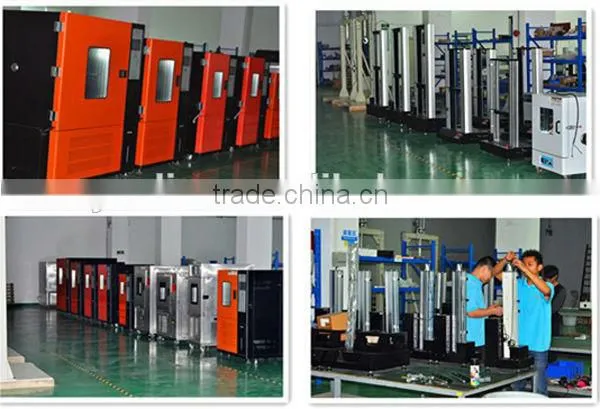

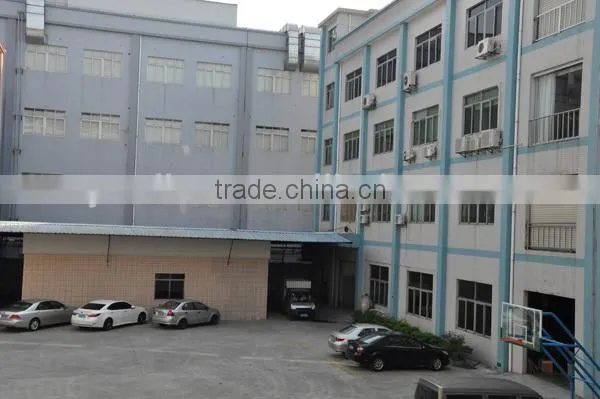

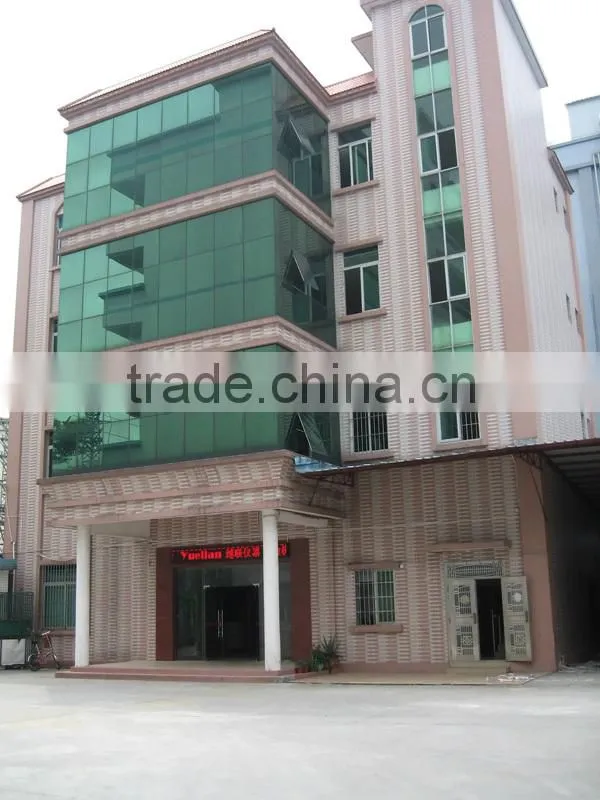

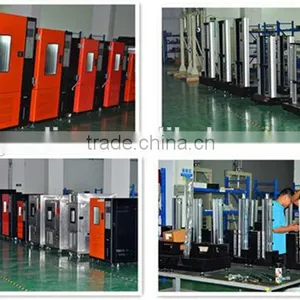

Factory photos
Exhibition photos
Certification
