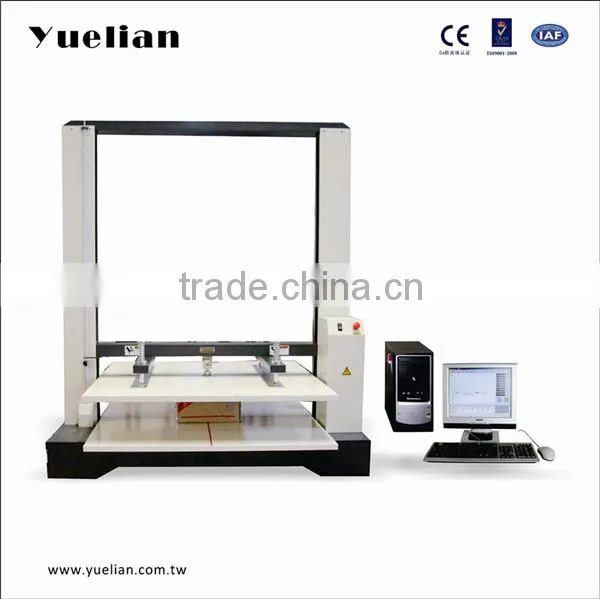

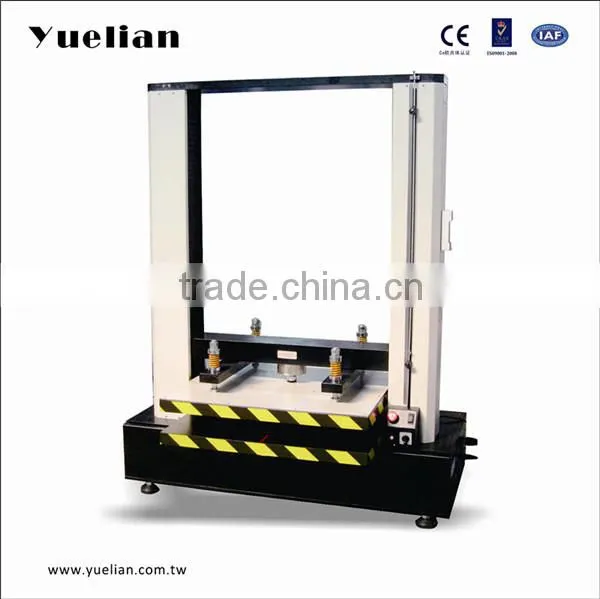

Carton Compression Testing Machine (TAPPI standard)
Product Summary:
Carton Compression Testing Machine result can analyze whether the feature and packing structure design of the cartons and colorful boxes are available for transportation, moving and other intensity requirements. The force-displacement curve chart can be displayed on the computer and displays the cartons stress condition of pressure insistence. The test result can be an important reference as stacking height of finished products cartons for factory.
Design Standards: TAPPI-T804, ISTA JIS-Z0212, GB 4857.3.4
Specification
Model NO. |
6609PC-A |
6609PC- B |
6609PC- C |
Capacity |
500kg, 1000kg, 2000kg, 5000kg(Select One Kind) |
||
Unit |
Kgf ,g ,N ,kn , lbf ,TON(Switchable) |
||
Resolution |
1/250,000 |
||
Precision |
≤0.5% inside Leq 0.5% |
||
Control Method |
Computerized operation control |
||
Test Space |
80×80×100CM |
120×120×120CM |
150×150×150CM |
Compression Speed |
10±3/min |
||
Speed Range |
Suitable set by computer |
||
Stop Method |
Break and rupture stop, the upper and lower limit setting stop, automatic reset function |
||
Display Functions |
Test times, peak value, test curve, test form, average values, etc. |
||
Holding Pressure Function |
Suitable set freely in capacity range |
||
Holding Pressure Time |
0.01h~999.99h , suitable set freely |
||
Weight |
700KG |
760KG |
850KG |
Volume |
120×80×160CM |
160×120×190CM |
190×150×230CM |
Accessories |
test software CD, computer connection wire |
||
Strong wooden case for the testing machine
