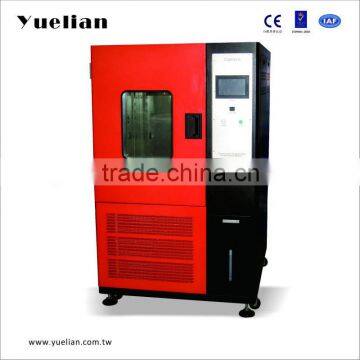

Programmable Temperature & Humidity Chamber

Model

YL-2236A

YL-2236B

YL-2236C

YL-2236D

YL-2236E

Interior DimensionW×H×DCM

40×50×40

50×60×50

50×75×60

60×85×80

100×100×80

Exterior DimensionW×H×DCM

93×131×81

103×141×91

108×162×112

117×172×132

160×187×132

CapacityL

80

150

225

408

800

Heating Up Speed

-20100 approx 35min, -40100 approx 45min, -70100 approx 60min

Cooling Down Speed

200 approx 20min, 20-20 approx 45min, 20-40 approx 60min, 20-70 approx 90min

Temp. Range

0-20-40-70150

Temp. Uniformity

±1

Humidity Uniformity

±2.5%

Temp. Stability

±0.3

Humidity Stability

±2.5%

Humidity Range

20%98%RH(available customized low humidity degree to 5%RH)

Programmable Mode

Use high stability platinum temperature resistant materials, LCD Chinese & English touch-screen, 120 sets 1200 sections program, 999 cycles circulation setting, and enclose multiple sets of PID control function and RS-232 computer connection interface control.

Heating System

SUS#304, stainless steel heater

Humidification System

Surface evaporative type, enclose protection of hydropenia, interrupt of power supply and superheat for humidifier.

Dehumidification System

Frozen & latent heat dehumidification method

Cooling System

Adopt unary type full-closed air-cool refrigeration system above -20, adopt binary type full-closed air-cool refrigeration system below -40

Water Supply System

Circulating water supply system, together with hydropenia warning device

Inner & Outer Material

SUS#304, stainless steel of whole machine

Insulation Material

Rockwool and rigid polyurethane foam insulation

Safety Device

Breaker, compressor overload, ultra-temperature, power failure, temperature limit protection and fault alarm

Temp. & Humidity Regulation

Balance adjustment temperature & humidity method

Standard Accessories

Automatic demist fogging glass window, 2 sets of adjustable upper and lower interlayer, cable prot, chamber lamp, mobile wheels

Optional Accessories

Grapher

Power

AC220V/380V±10%,50/60Hz
