HF-C3-20ZK RFID Software TCP/IP Multi Two Doors Door Controller Card

Name: HF-C3-20ZK RFID Software TCP/IP Multi Two Doors Door Controller Card
Brand: HFSecurity
SKU: 112414137
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HFSecurity

Model Number:

Door Controller Card C3-200

Chongqing Huifan Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HFSecurity

Model Number Door Controller Card C3-200

ZK RFID Software TCP/IP Multi Two Doors Door Controller Card (HF-C3-200)

Features:

1.Chioce of readers: fingerprint reader, card reader

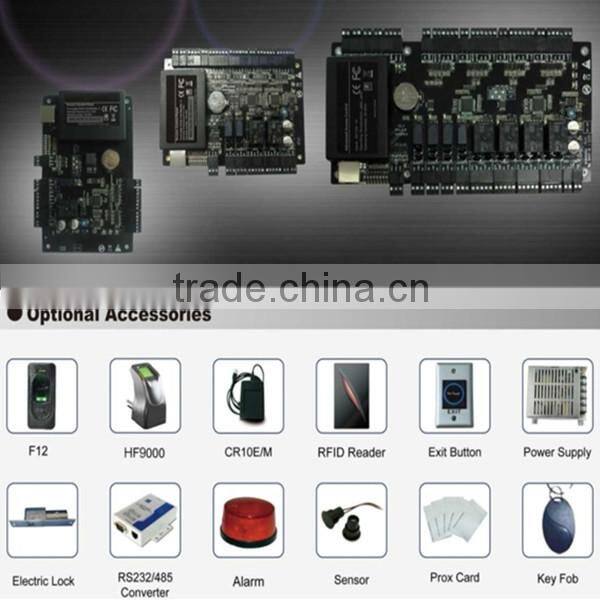

2. C3 controller come in three size to suit project needs:1-door,2-door,4-door.

3.Large capacity: 30000 users

4.Free SDK

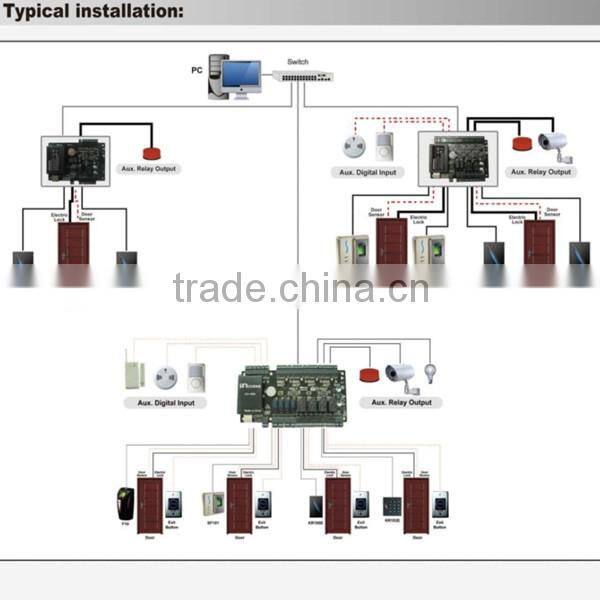

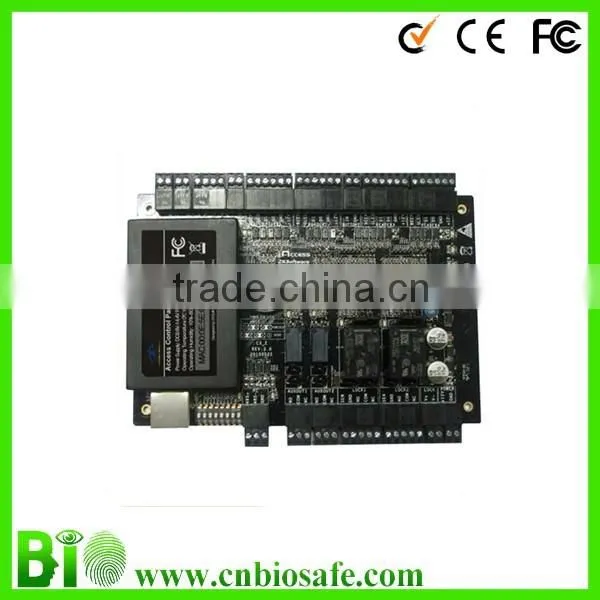

HF-C3-200 is capable to handle 2 doors / 4 readers with a single controller.

Model	C3-200
CPU	32bit MIPS CPU
RAM	32M bits
Flash Memory	256M bits
User	30,000
Event Buffer	100,000
Power / Current	DC 9.6V-14.4V, Rated Max.1A
Reader Port	2ea (26bit Wiegand, 8bit Burst for PIN)
Communication	RS485, TCP/IP
Baud Rate	38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port	2ea (Exit Button#1, Door Sensor#1)
Output Port	1ea (1 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
Output Port	1ea (1 Aux FORM-C Relay Output, SPDT 2A@30VDC)
LED Indicator	Yes, LED indication for communication, power, status and punch card
Operating Temperature	0°to +55°C
Operating Humidity	10% to 80% relative humidity non-condensing

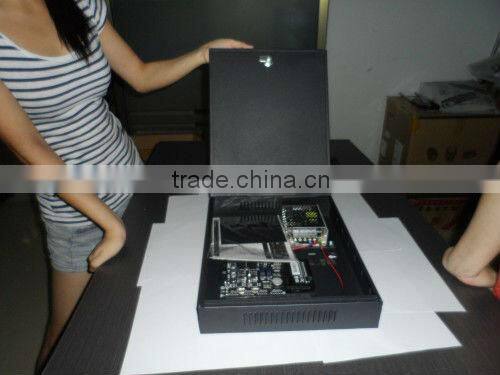

Dimension (L*W)mm	160(W)106(H)(single board ) 345(W)275(H)*70(D)(with power supply and metal box)
Certification	CE, FCC
