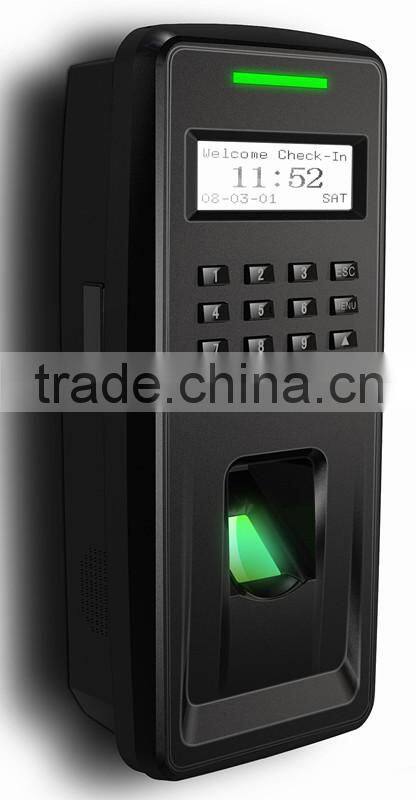

Product Name : Wiegand Fingerprint And Keypad Types Of Access Control Systems (HF- F16)
| Introduction: |
The F19 features the fastest commercial-based fingerprint matching algorithm and HF high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD.
| Features: |
Fingerprint reader with durable and highly accurate HF optical sensor
1 touch a-second user recognition
Reads Fingerprint and/or Card
Optional integrated smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Real-time 1-touch data export 3rd party hosted & non-hosted applicationsAudio-Visual indications for acceptance and rejection of valid/invalid fingers
| Specification: |
Fingerprint Capacity | 3000 templates |
Transaction Capacity | 100,000 |
Sensor | HF Optical Sensor |
Algorithm Version | HF Finger v10.0 |
Communication | RS232/485, TCP/IP, USB-host |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal | Output and Input |
Display | TFT LCD Screen |
Standard function | Webserver, DLST |
Optional function | ID card, IC card |
Power Supply | 12V DC |
Operating Temperature | 0 °C- 45 °C |
Operating Humidity | 20%-80% |

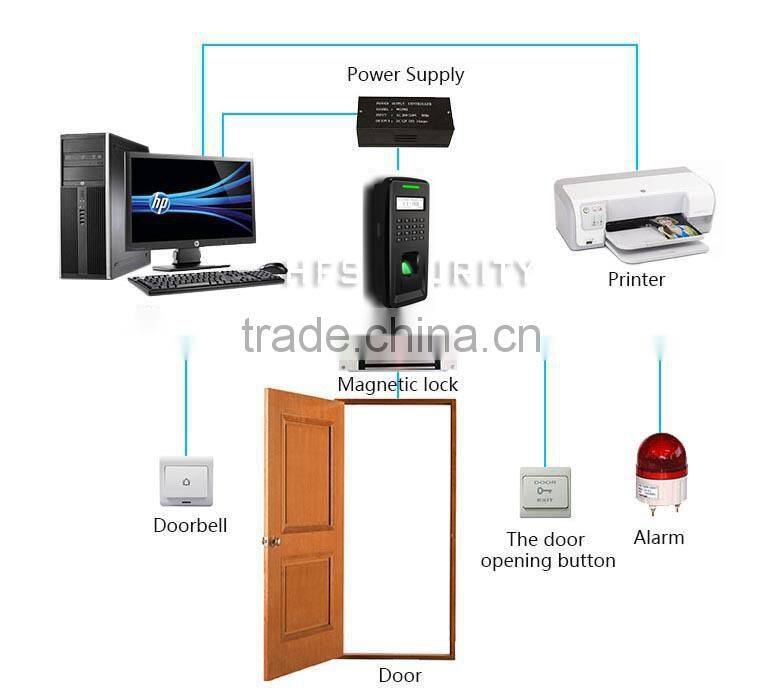

| Connection diagram: |

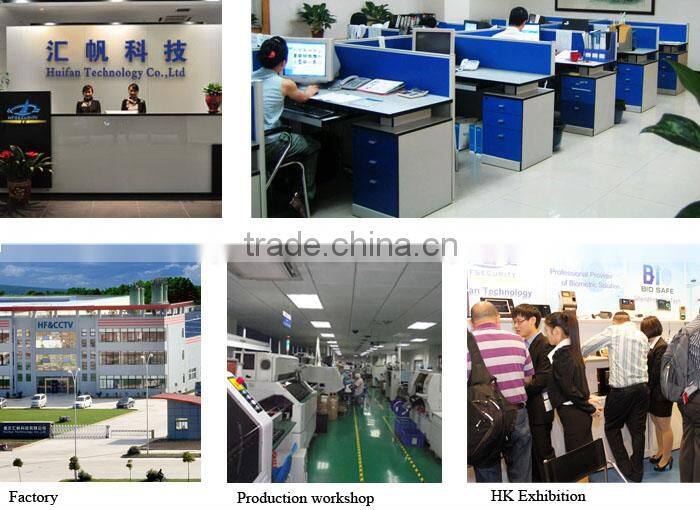

| About Company: |
Chongqing Huifan Technology Co., Ltd. is the leading provider of biometric products and software development services, including:
-Face recognition time attendance and access control terminals
-Fingerprint products, such as time attendance, access control, door locks, readers and modules;
-Handheld biometric&RFID terminal solutions;
-biometric hardware& SDK solutions
| Trading Information: |
| Trading Progress: |
| Our Services: |
1. We have professional technician team to support any of your questions on technician aspect .
2. We also provide below service:
*OEM/ODM for adding your logo for free
*Customized Language
*Free Software/SDK
*Life-Long After-Service
Send your inquiry details in the below,Click "send" now!!!
