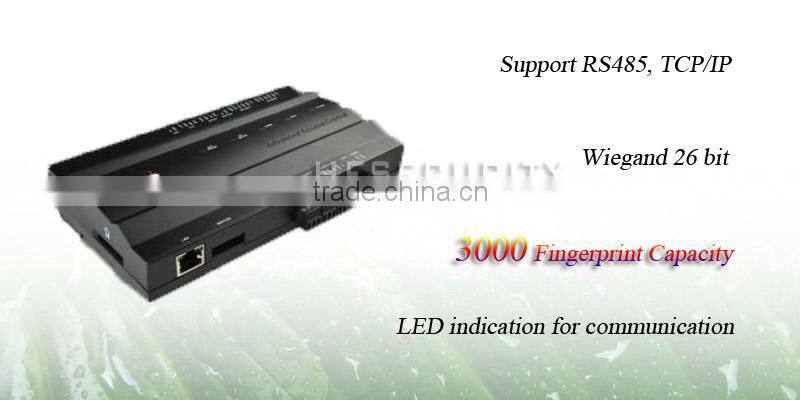

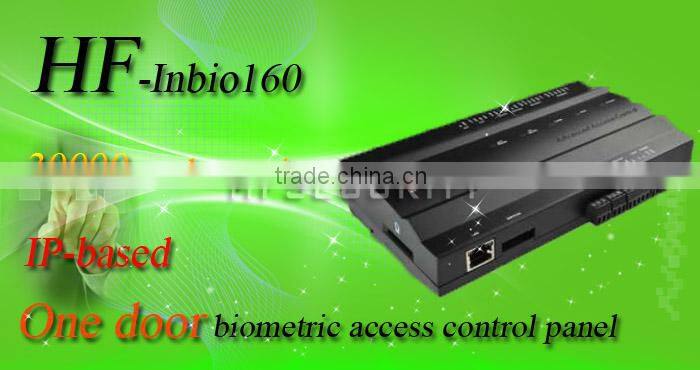

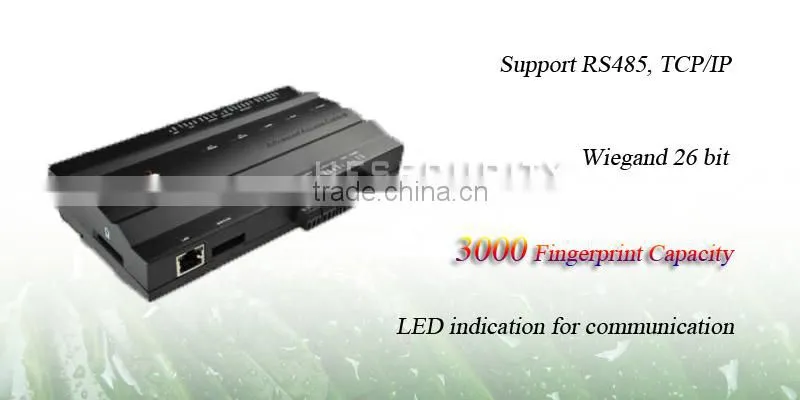

Multi Doors Manage RFID TCP---IP Wiegand Access Control Board With Software (HF-Inbio160)
- 20000 Unit / Units per Month
- Shenzhen
- Credit Card PayPal
- Slim Fast Speed Gate
- 2024 China Made Unique Designed Tripod Turnstile
- China Direct Factory Made Tripod Turnstile
- China made Face Recognition Control Speed Gate
- Pedestrian gate wing gate face recognition gate Intelligent swipe card entrance and exit gate intelligent gate
- The cash register gate / entrance gate for check out / Stainless steel pipe guardrail / supermarket swing gate / turnstile gate
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HFSECURITY | Model Number: | HF-Inbio160 |
Product Description
Product Name: Multi Doors Manage RFID TCP---IP Wiegand Access Control Board With Software (HF-Inbio160)
Features : |
1.Chioce of readers: fingerprint reader, card reader
2. Inbio control board comes in three size to suit project needs:1-door,2-door,4-door.
3.Large capacity: 30000 users
4.Free SDK
Specification: |
Model | inBIO160 |
CPU | 32bit MIPS CPU |
RAM | 32M bits |
Flash Memory | 128M bits |
Fingerprint Capacity | 3000 |
Card Capacity | 30,000 |
Event Buffer | 100,000 |
Memory Card Backup | Support |
Power / Current | DC 9.6V-14.4V, Rated Max.1A |
Wiegand Reader Port | 2ea (26bit Wiegand, 8bit Burst for PIN) |
RS485 Reader Port | 1ea Extended RS485 Port |
Communication | RS485, TCP/IP |
Baud Rate | 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port | 2ea (Exit Button#1, Door Sensor#1) |
Output Port | 1ea (1 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) |
1ea (1 Aux FORM-C Relay Output, SPDT 2A@30VDC) | |
LED Indicator | Yes, LED indication for communication, power, status and punch card |
Operating Temperature | 0°to +55°C |
Operating Humidity | 10% to 80% relative humidity non-condensing |
Dimension (H*W*D)mm | 185*106*36( single board) 400*330*90.5(with power supply and metal cabinet) |
Housing Material | PVC |

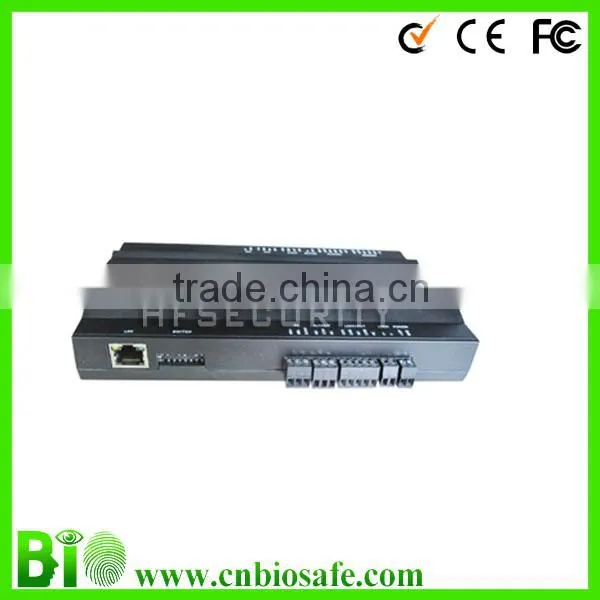

Picture shows: |
Typical installation : |
Our partner: |
About company: |
Our company located in beautiful City-Shenzhen, China, where is an ancient and advancing with The Times of world window and you can review the past and longings for the future
in the elegant environment, convenient transportation of shenzhen north station, you are welcome to visit our company at any time.A lot of foreign customers to our company, hope you can be one of them.
1. We have professional technician team to support any of your questions on technician aspect
2. We also provide below service:
*OEM/ODM for adding your logo for free
*Customized Language
*Free Software/SDK
*Life-Long After-Service
