Introduction:
HDMI HD decoder is our professional HD audio & video decoding device. It is equipped with one channel HDMI audio & video output interface, one channel VGA video output and one channel stereo audio output, supporting H.264 decoding format. This decoder can receive the TS stream from encoder , and can set the resolution for different request. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end. Satellite and terrestrial digital TV etc.
Main feature:
H.264 Baseline Profile decoding
H.264 Main Profile decoding
H.264 High Profile decoding
MJPEG/JPEG Baseline decoding
Audio decoding MPEG1 Audio Layer 2
Support Network interface full-duplex mode 100M
1 channel HDMI output
1 channel VGA output
1 channel Audio output
Support up to 1080P/60hz HD video output
Support HTTP,UTP,RTSP protocol
The WEB operating interface, configuration interface in Chinese and English are optional
Authority management for WEB operating interface.
Support telemanagement of WAN (WEB)
Support setting for stream resolution.
Support restoring the default configuration by one key.
-
Low-power design.

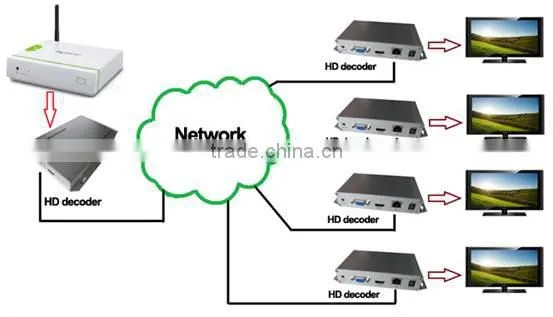

Connection:
Parameters:
Model number |
HDMI HD decoder |
||
Decoder |
input |
interface |
RJ45×1 |
signal |
Standard network stream |
||
protocol |
HTTP RTSP RTMP ONVIF multicast UDP |
||
output |
interface |
VGA×1,HDMI×1, |
|
Max resolution |
1920X1080@60HZ |
||
Dimension |
W× L× H |
13.5x8.5x2.9cm |
|
N/W |
0.26kg |
||
power |
DC 12V, 1A |
||
Temperature for work |
-40~70° |
||
Temperature for storage |
-20~85° |
||
Application:
IPTV
Digital HD/SD streaming sever.
Video conference
Replace HD Video Capture Card
Hotel cable TV system
live and recording broadcast for operating room.
live and recording broadcast for education
Digital HD live and recording broadcast for courtroom.
Access to network monitoring platform, support recording broadcast
